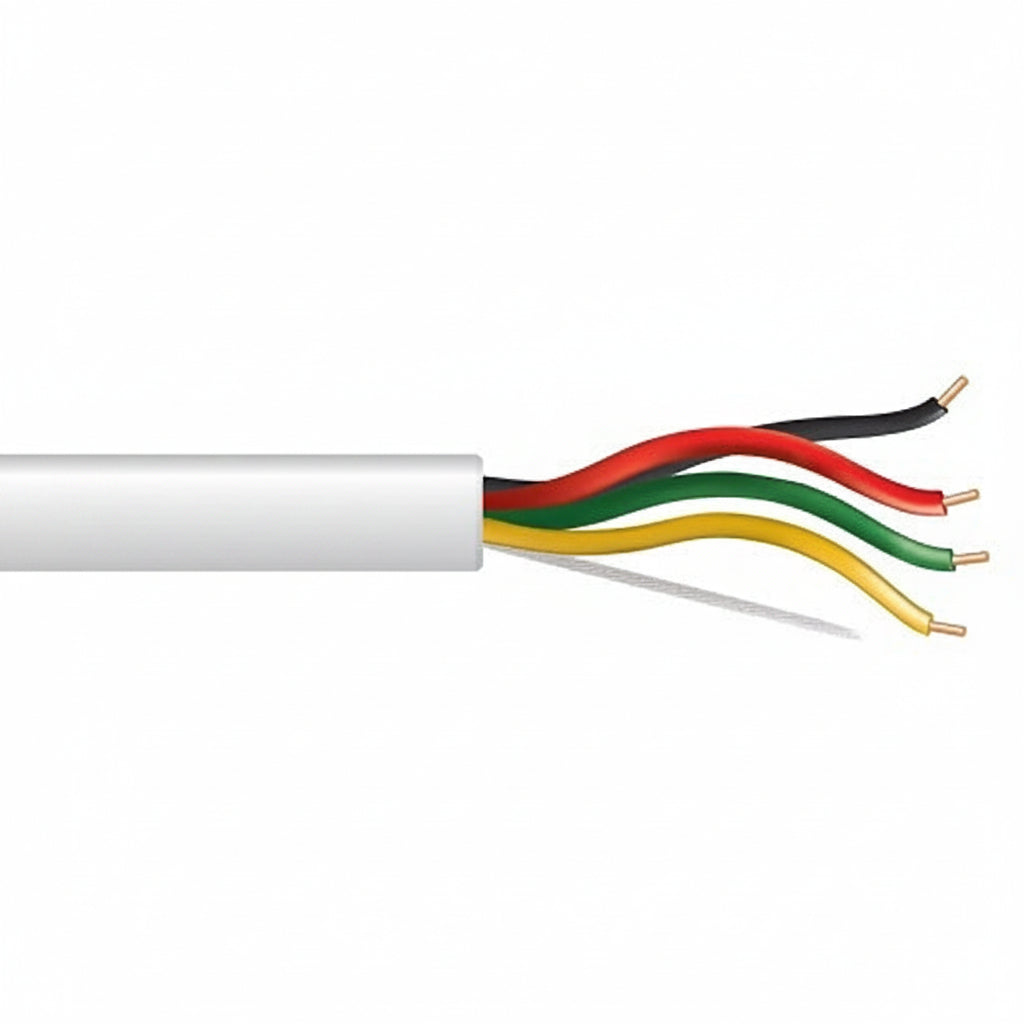

Genesis 43015501 22/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, White

The Genesis 43015501 is a 22 AWG, 4-conductor solid, unshielded fire alarm cable with a riser (FPLR) rating, supplied as a 500' (152.4 m) pull box in white. It is used for fire alarm system wiring in indoor installations, and suits installers who want a straightforward riser-rated run with bare copper conductors. Countdown length markings and a rip cord make it easier to measure and strip as you work.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A built-in rip cord helps you strip and remove the jacket efficiently.
• Countdown length markings let you track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43015501

Product type: Fire Alarm Cables

Rating: Riser, FPLR

Length/packaging: 500' (152.4 m) pull box

Color: White

Conductors: 4, solid, bare copper

American Wire Gauge: 22 AWG

Core/Cladding Diameter: 22/4

Insulation material: PP

Jacket: PVC

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull the cable from the box without kinks or sharp bends, and follow the local code and the fire alarm panel manufacturer's wiring requirements for routing and support. Use the countdown markings to confirm you have enough cable for each run before you cut, and label both ends as you terminate.
