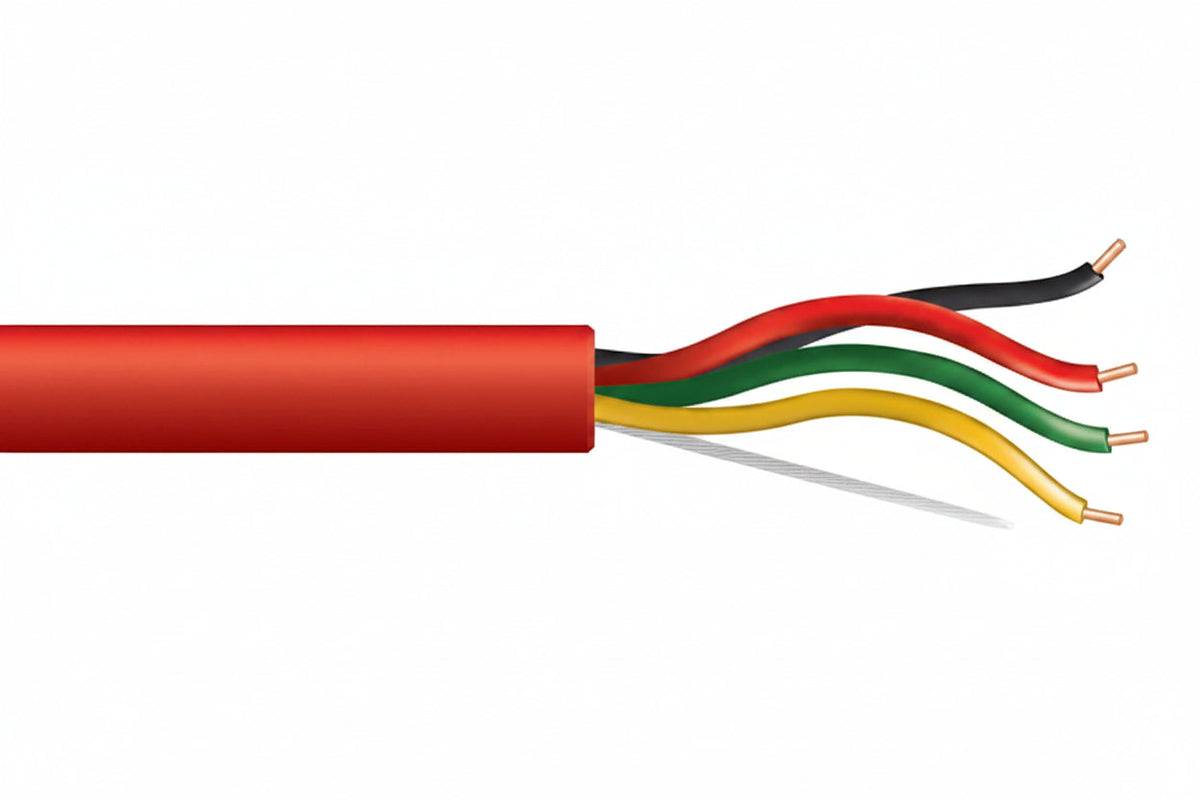

Genesis 43011104 22/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red

The Genesis 43011104 is a 22 AWG, 4-conductor solid, unshielded fire alarm cable with a red PVC jacket, rated FPLR for riser use. It suits installers and contractors running indoor fire alarm circuits and control wiring who want a 1000' (304.8 m) pull box. Countdown length markings and a rip cord make it easier to track usage and strip the jacket.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43011104

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length and packaging: 1000' (304.8 m) pull box

Color: Red

Gauge: 22 AWG

Number of conductors: 4

Conductor material: Bare copper

Solid or stranded: Solid

Shielding: No

Armored: No

Insulation material: PP

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 11.90 lb

Installation notes

Use the rip cord to open the jacket cleanly instead of cutting into the conductors, and follow the countdown markings to plan each run before cutting. Keep fire alarm cabling separated from other power wiring and follow local code and the panel manufacturer's instructions.
