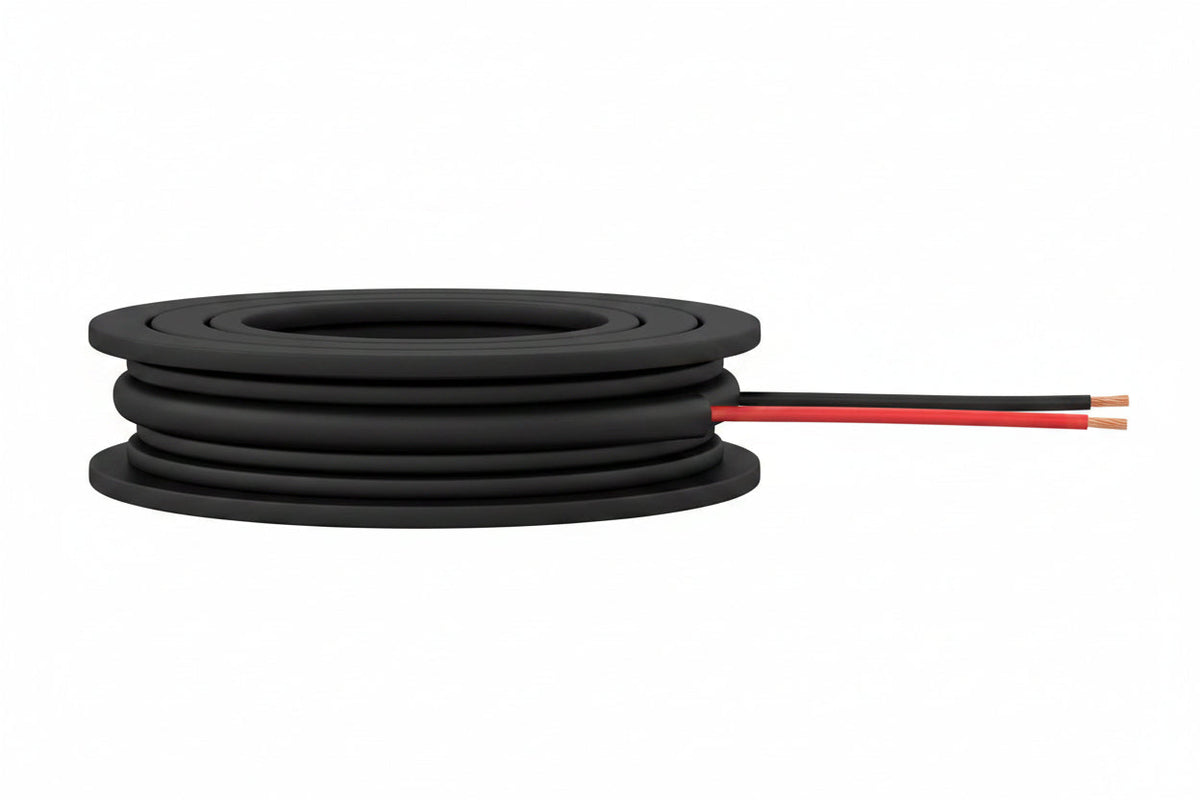

Genesis 41561008 18/2 Stranded Unshielded Fire Alarm Cable, Direct Burial, FPL, CL3, 1000' (304.8 m) Reel, Black

The Genesis 41561008 is an 18 AWG, 2-conductor stranded fire alarm cable on a 1000' (304.8 m) reel, finished in black. It is an unshielded, direct burial FPL/CL3 cable, so it suits installers running fire alarm and low-voltage circuits outdoors. Bare copper conductors, a sunlight resistant (UV) rating and countdown length markings stand out.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• SRPVC insulation sits under a PVC jacket.
• A rip cord makes jacket stripping and removal quicker.
• Countdown length markings let you track how much cable you have used and how much remains.
• It is sunlight resistant (UV) rated and rated for 300 volts.
• It is rated for -20 °C to 75 °C and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 41561008

Product Type: Fire Alarm Cables

Rating: FPL, CL3, Direct Burial

Length/Packaging: 1000' (304.8 m) Reel

Color: Black

American Wire Gauge: 18AWG

Core/Cladding Diameter: 18/2

Number of Conductors: 2

Number of Pairs: 1

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: SR-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Outdoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 36.60 lb

Installation notes

Use the countdown markings to plan each run and cut to length, and avoid pulling the cable past its limits or kinking it when laying it in the ground. Keep the jacket intact at splices and terminations, and test each circuit before commissioning the fire alarm system.
