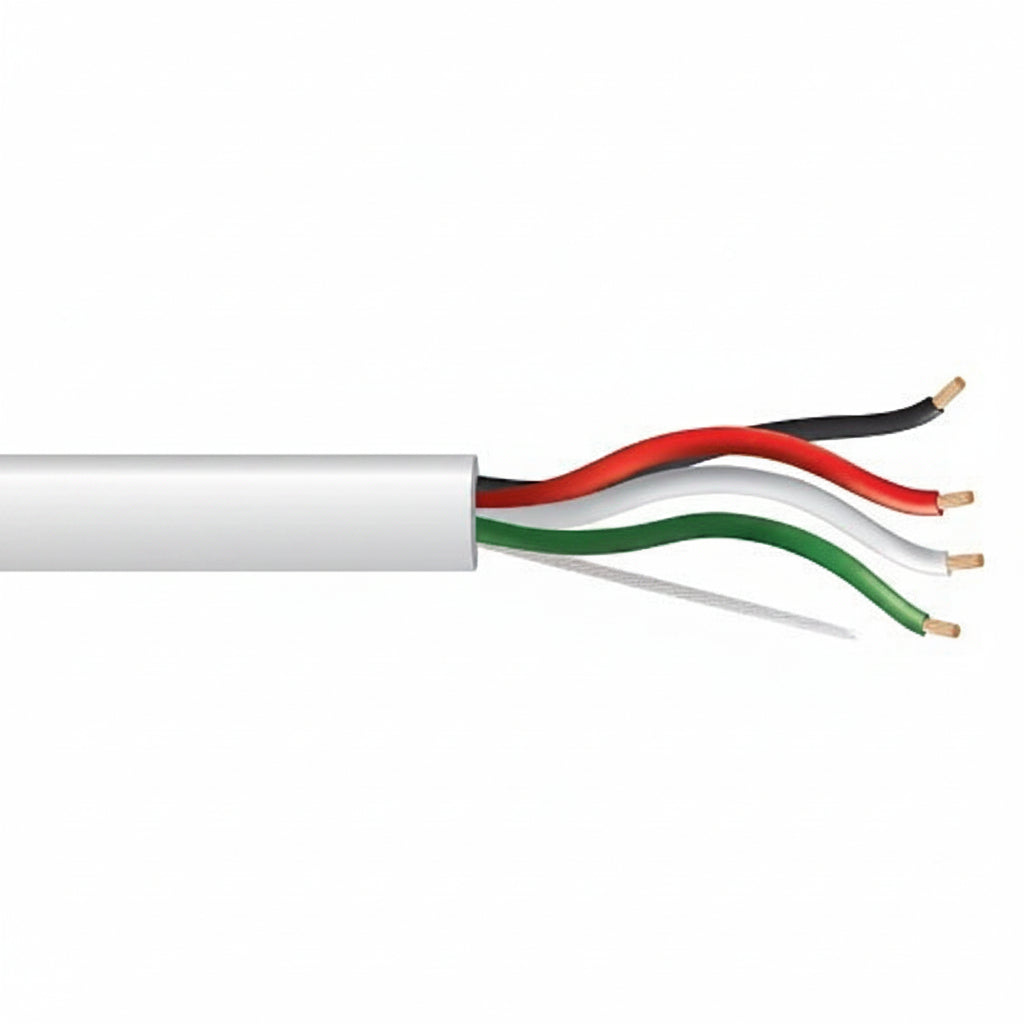

Genesis 31225012 16/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural

The Genesis 31225012 is a 16 AWG, 4-conductor stranded, unshielded plenum cable (CMP, FT6) supplied on a 500' (152.4 m) reel in natural. It suits control, security and low-voltage runs inside buildings, including air-handling spaces where plenum-rated cable is required. Bare copper conductors and countdown length markings make it practical for installers pulling long runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket quickly.
• Countdown length markings show how much cable you have used and how much is left on the reel.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 31225012

Product type: Security & Control Cables

Gauge and conductors: 16/4

American wire gauge: 16 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, CMP, FT6

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length and packaging: 500' (152.4 m) reel

Color: Natural

Indoor/outdoor: Indoor

Environmental certification: RoHS; REACH/RoHS compliant

TAA compliant: Yes

Country of origin: US

Weight: 22.80 lb

Installation notes

This is an indoor cable, so do not use it outdoors. Use the length markings to plan your pulls and cut lengths, and keep it away from line-voltage wiring where codes require separation. Since the cable is unshielded, route it clear of noisy electrical sources.
