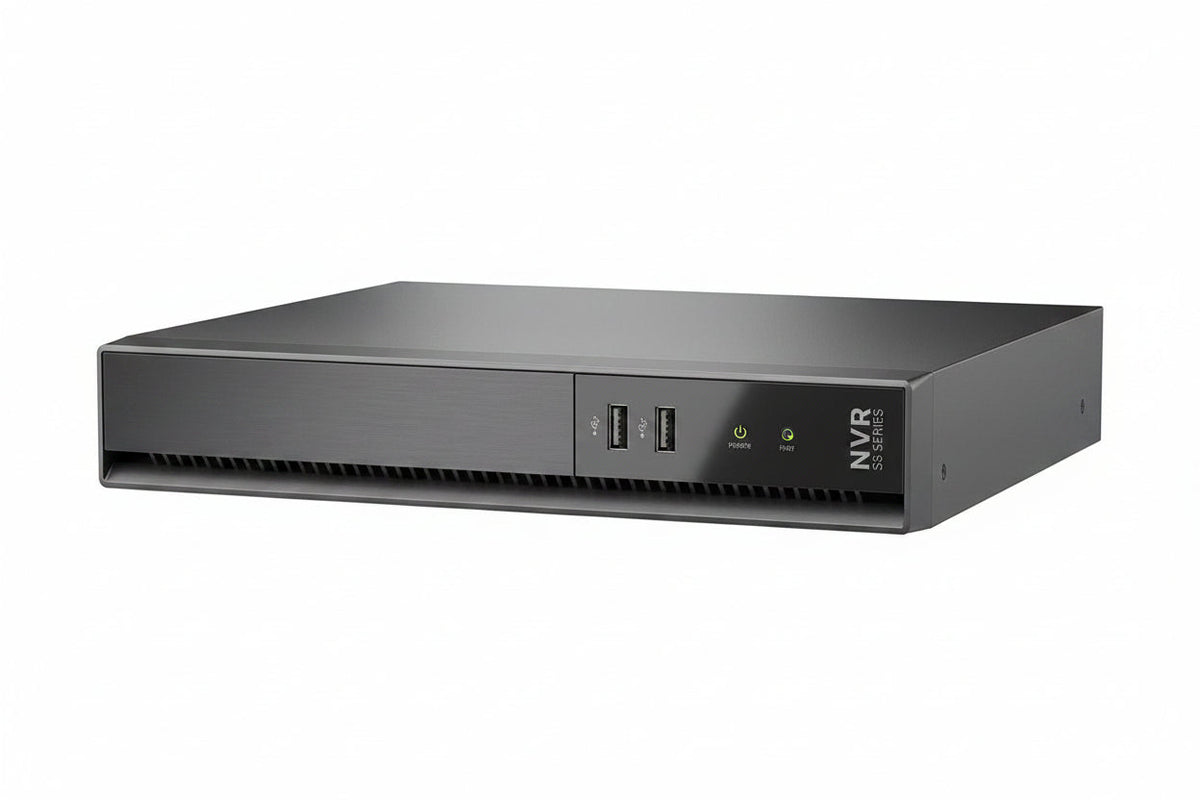

Honeywell HN35160204 35 Series 4K 16-Channel Embedded NVR, 2HD, NDAA Compliant, 4TB HDD

The Honeywell HN35160204 is a 16-channel embedded network video recorder from the 35 Series, supplied with a 4TB hard drive. It records and manages IP camera video for small-to-medium businesses and entry-level enterprise sites that need an NDAA compliant recorder. Encrypted streaming, P2P remote access and two-way audio with 35S cameras stand out.

Key features

• Streams are protected with end-to-end HTTPS encryption using a TLS 1.2 connection, whether you connect locally, remotely or through global P2P.
• Honeywell Smart Viewer (HSV) software provides the interface, and P2P handles remote access.
• Event alerts can go out by email, including still images captured at the time of the event, or through an alarm output that drives a flashing light, bell or siren.
• HDMI and VGA video outputs work at the same time, and the recorder supports up to 4/8 alarm inputs and 1/2 alarm relay outputs.
• Multi-NVR management supports up to 2048 video channel connections.
• Two-way audio is supported between the 35S NVR and 35S cameras.

Specifications

Brand: Honeywell

Model: HN35160204

Product series: 35

Product type: Video Surveillance Station

Number of channels: 16

Hard drive capacity: 4TB

Storage capacity: 4TB

Maximum resolution: 1280 x 720

Maximum frame rate: 480fps

Recording format: H.264

Video format: H.264 / AVC

Connectivity: Wired

Ethernet: Yes

HDMI: Yes

USB ports: 1

Remote management: Yes

Power consumption: 180W

Environmental certification: RoHS

RoHS compliant: Compliant

Country of origin: VN

Installation notes

Place the recorder in a ventilated, secure location and connect it to the camera network over wired Ethernet. Complete setup of the alarm inputs and outputs and the remote access settings during commissioning, then test event notifications before handing the system over.
