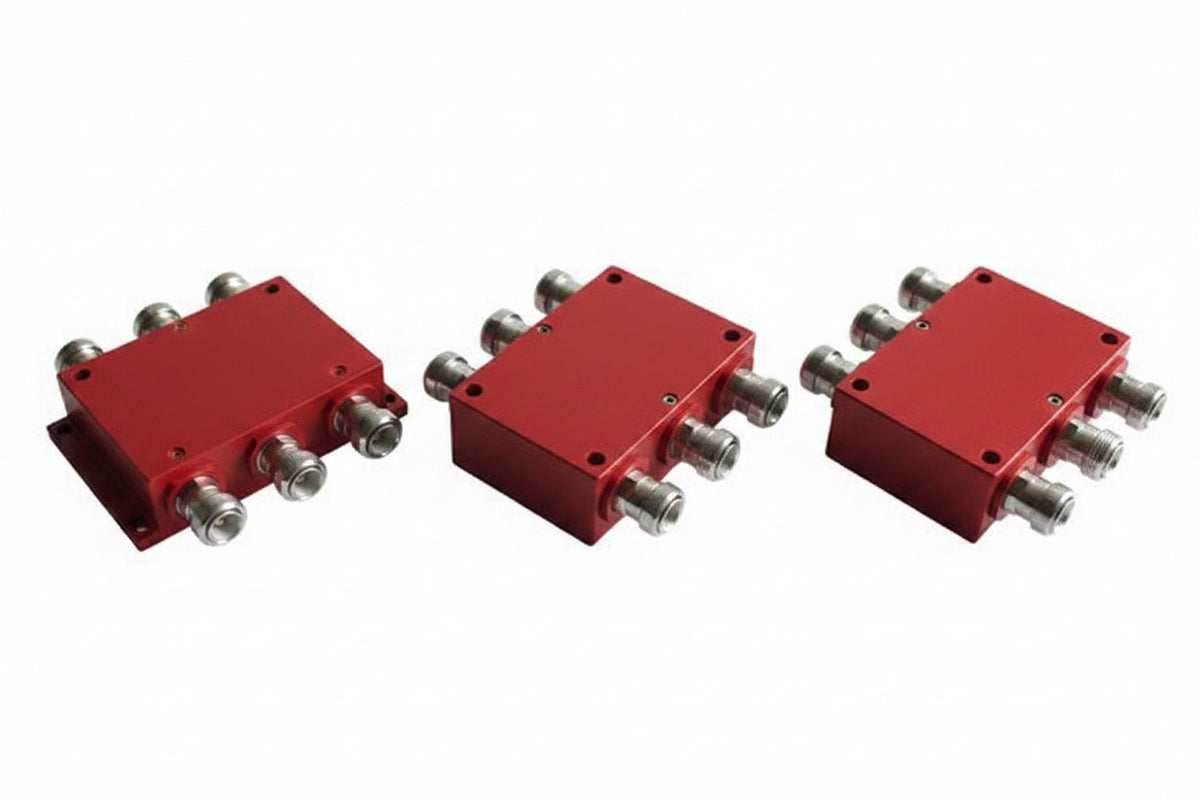

Honeywell BDA BDA-PS3-W2 Fiplex Broadband 3-Way Power Splitters, 698-2700 MHz, 50W

The Honeywell BDA-PS3-W2 is a passive 3-way RF power splitter from the Fiplex line, covering 698 MHz to 2.70 GHz. It divides one signal path into three, or combines three into one, which suits installers building out distributed antenna and signal distribution systems. Its multistage Wilkinson design keeps insertion loss and VSWR ripple low, and it handles 50W as a splitter.

Key features

• Passive construction in a multistage Wilkinson configuration.
• Low insertion loss helps preserve signal strength through the split.
• Low VSWR ripple across the operating band.
• Two-, three- and four-output models are standard, with other configurations available on request.
• Power input is 50W as a splitter and 1W as a combiner; other values are available on request.

Specifications

Brand: Honeywell

Model: BDA-PS3-W2

Product Type: Signal Splitter

Product Line: Fiplex

Minimum Frequency: 698MHz

Maximum Frequency: 2.70GHz

Weight: 11.99oz

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Installation notes

Use it as a splitter on the high-power side and keep combiner use within its much lower power limit. Terminate any unused output port and use low-loss cabling with secure connectors to protect system performance.
