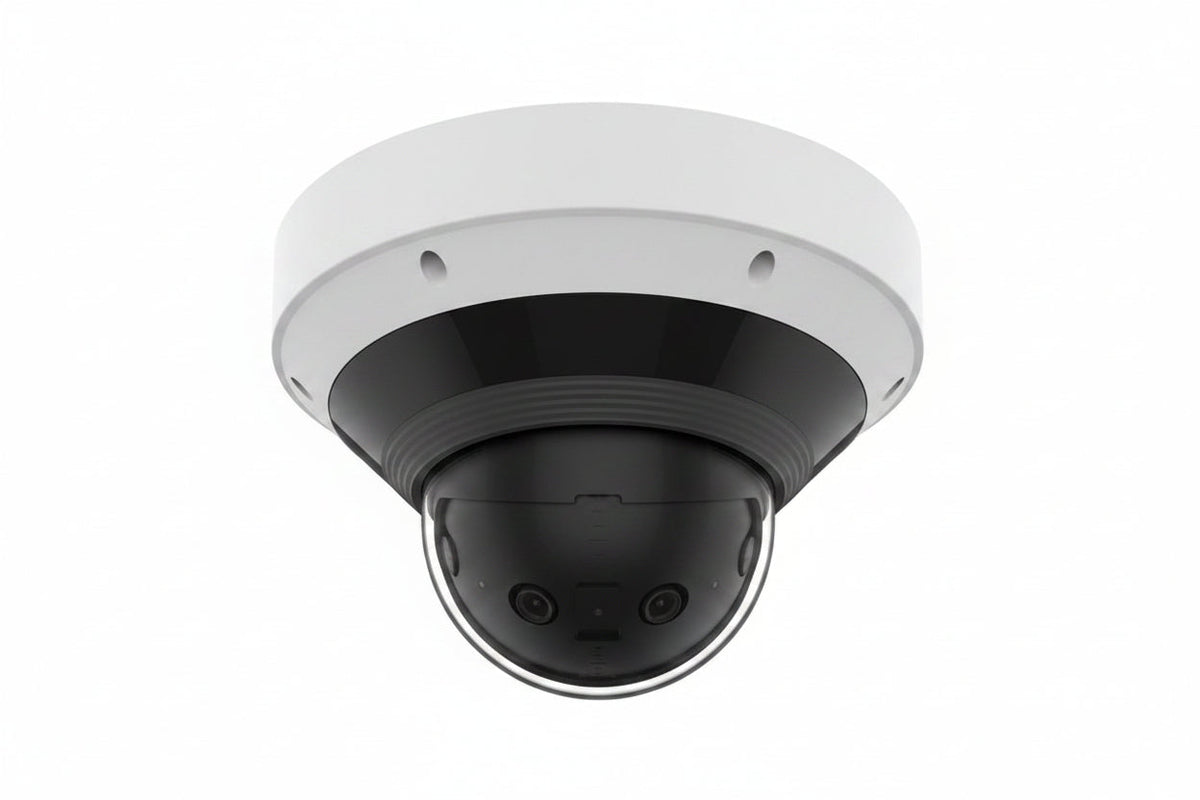

Hanwha PNM-C9022RV Series 8MP AI IR Panoramic IP Camera, 2.8mm Fixed Lens, White

The Hanwha PNM-C9022RV is an outdoor 8MP panoramic IP camera that uses four sensors to stitch one wide image, so a single unit can cover an area that would otherwise take several cameras. It suits installers and businesses that need broad coverage of parking lots, yards, building perimeters and similar open areas. It adds built-in IR for night viewing, extremeWDR, and IK10 impact and IP66 weather ratings.

Key features

• Four sensors are stitched into a single panoramic image of up to 8MP.
• WiseIR infrared lighting gives a viewable night distance of up to 20m (65.6').
• H.265, H.264 and MJPEG compression are supported at up to 20 fps.
• Day and Night operation with an ICR filter keeps the image usable around the clock.
• extremeWDR (120 dB) helps with scenes that mix bright and dark areas.

Specifications

Brand: Hanwha

Model: PNM-C9022RV

Product Type: Camera

Color: White

Form Factor: Dome

Mount Type: Pendant Mount

Indoor/Outdoor: Outdoor

Effective Camera Resolution: 8MP

Maximum Video Resolution: 5120 x 1568

Image Sensor Type: CMOS

Number of Sensors: 4

Lens Type: Fixed Focus

Lens Included: Yes

Focal Length: 2.8mm

Maximum Aperture: f/2

Optical Zoom: 4.0x

Field of View (Horizontal): 209.0°

Field of View (Vertical): 60.00°

Minimum Illumination: 0.0100 lux

Shortest Shutter Speed: 1/12,000 second

Longest Shutter Speed: 2 seconds

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Maximum Frame Rate: 20 fps

Video Formats: H.264

Codecs: H.265, H.264, MJPEG

Features: WiseNR (based on AI engine)

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: Memory Card

Input Voltage: 12V DC

Durability: Impact Resistant

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

Operating Temperature: -40°F to 131°F

Operating Humidity: 0-95% RH (non-condensing)

Diameter: 9.96″

Weight: 6.39 lb

TAA Compliant: Yes

Country of Origin: KR

Product Series: P

Installation notes

At 6.39 lb, this camera needs a pendant mount or bracket that is secured to a solid structure and rated for the load. Plan the mounting point for a clear, unobstructed view of the whole area, and run the network cable and 12V DC supply with weather-sealed connections before final aiming and commissioning.
