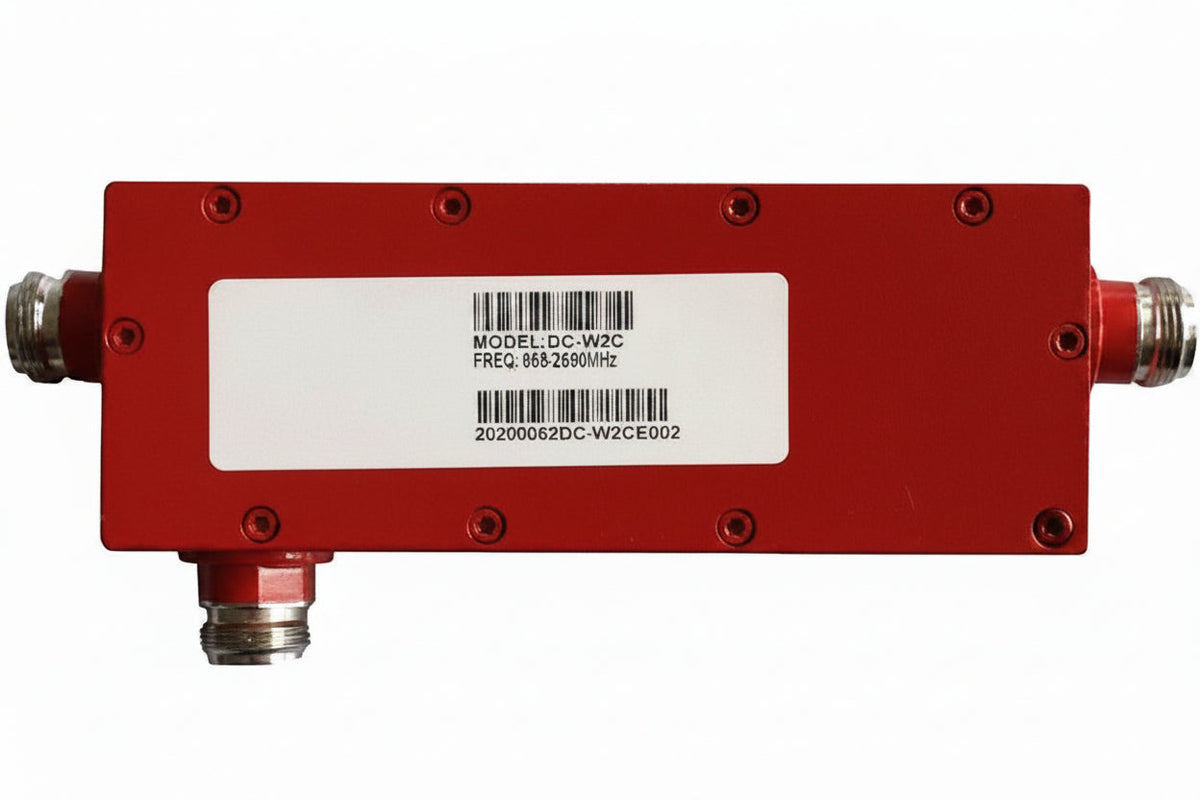

Honeywell BDA BDA-DC30-W2 Fiplex RF Directional Coupler, 698-2690 MHz, 30dB, 300W

The Honeywell BDA-DC30-W2 is a Fiplex RF directional coupler built to combine cables with minimal signal loss. It covers 698 to 2690 MHz at 50 Ohms, so it suits installers working on signal distribution in that range. Its low VSWR of 1.25 or less is the standout.

Key features

• Combines cables with minimal signal loss.
• Supports frequencies up to 2.69 GHz.
• Covers the 698 to 2690 MHz range.
• Has a 50 Ohm impedance.
• Holds VSWR to 1.25 or lower.

Specifications

Model: BDA-DC30-W2

Brand: Honeywell

Product Type: Signal Coupler

Product Series: RSA

Product Line: Fiplex

Frequency: 698 - 2690 MHz

Impedance: 50 Ohms

VSWR: ≤1.25

Coupling: 30dB

Power: 300W

Environmental Certification: RoHS

Weight: 13.40oz

Country of Origin: CN

Installation notes

Match the coupler to 50 Ohm cabling and connectors, and keep connections tight and clean to preserve the low VSWR. Label the ports during install so the coupled and through paths are easy to identify at commissioning.
