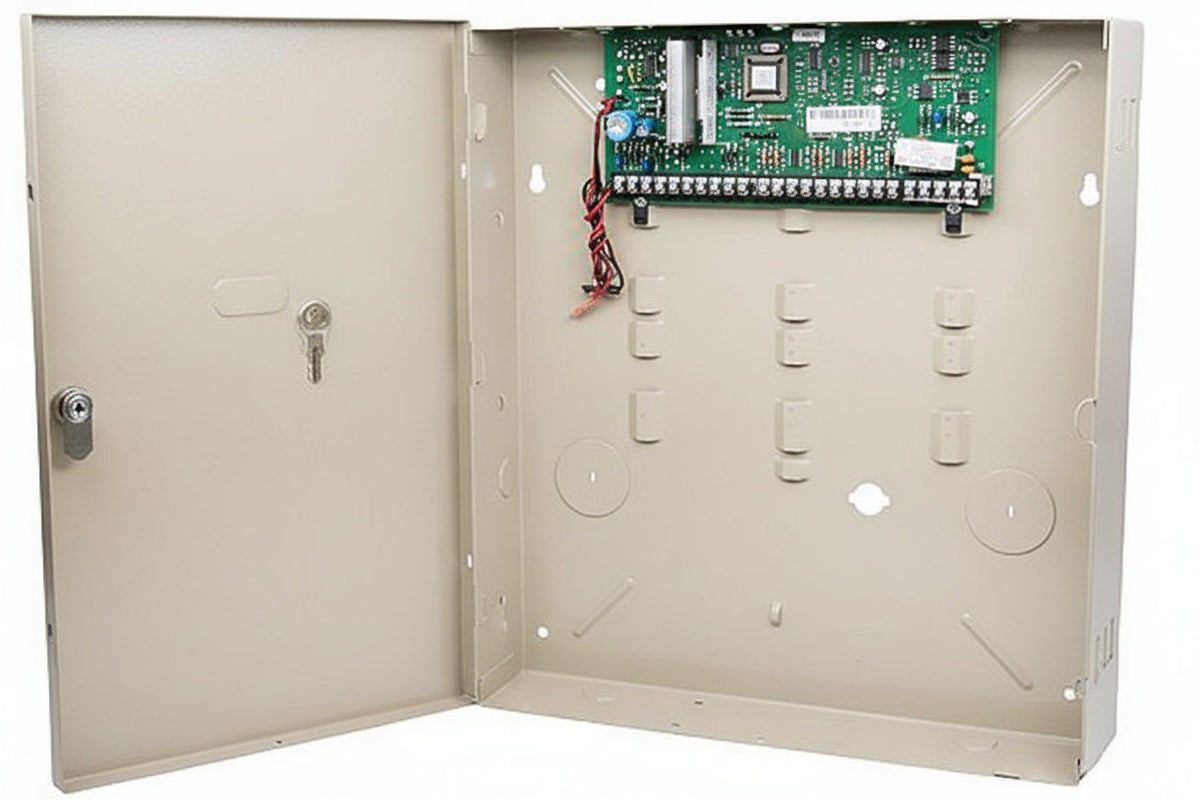

Honeywell Home VISTA-20P VISTA 48-Zone Security Control Panel for Wired Alarm System

Honeywell Home VISTA-20P is a wired burglar alarm control panel that handles up to 48 zones of protection for residential security systems. It suits installers building a system that may grow, with eight on-board hardwired zones that expand through hardwired and wireless modules. IP and cellular alarm reporting, Z-Wave control through Tuxedo Touch and VAM, and support for four graphic touchscreen keypads make it more than a basic panel.

Key features

• Reports alarms over IP and cellular radio, and supports upload/download programming.
• Works with Resideo Total Connect Remote Services.
• Controls Z-Wave thermostats, lights, locks, water shut-off, garage doors, shades and audio through Tuxedo Touch and VAM.
• Starts with eight on-board hardwired zones, or 15 with Zone Doubling, and adds 40 hardwired and 40 wireless expansion zones.
• Stores 48 user codes, assignable to either partition, and keeps a 100-event log with time and date stamps viewable at system keypads.
• Lets installers build custom zone types with four configurable zone types, and program wireless keys without using zones.

Specifications

Brand: Honeywell Home

Model: VISTA-20P

Product line: VISTA

Product type: Burglar Alarm Control Panel

Connectivity technology: Wired

Cellular generation: 4G LTE

Z-Wave: Yes

Number of zones supported: 8

User code storage: 48

Event log: 100

Compatibility: Supports four graphic touchscreen keypads

Installation type: Residential

Application/usage: Residential security systems

Battery voltage: 12.00V

Certifications & standards: cULus and cETLus Listed: UL 985

Height: 14.50″

Width: 3.00″

Depth: 12.50″

Length: 12.50″

Package contents: Control Panel Only

Country of origin: MX

Installation notes

Mount the panel where you have room to route cabling to the keypads, zones and any expansion modules, and plan the zone layout and zone types before you terminate field wiring. The package is the control panel only, so plan separately for the keypads, expansion modules and other accessories your system needs.
