About the TH9320WF5003/U

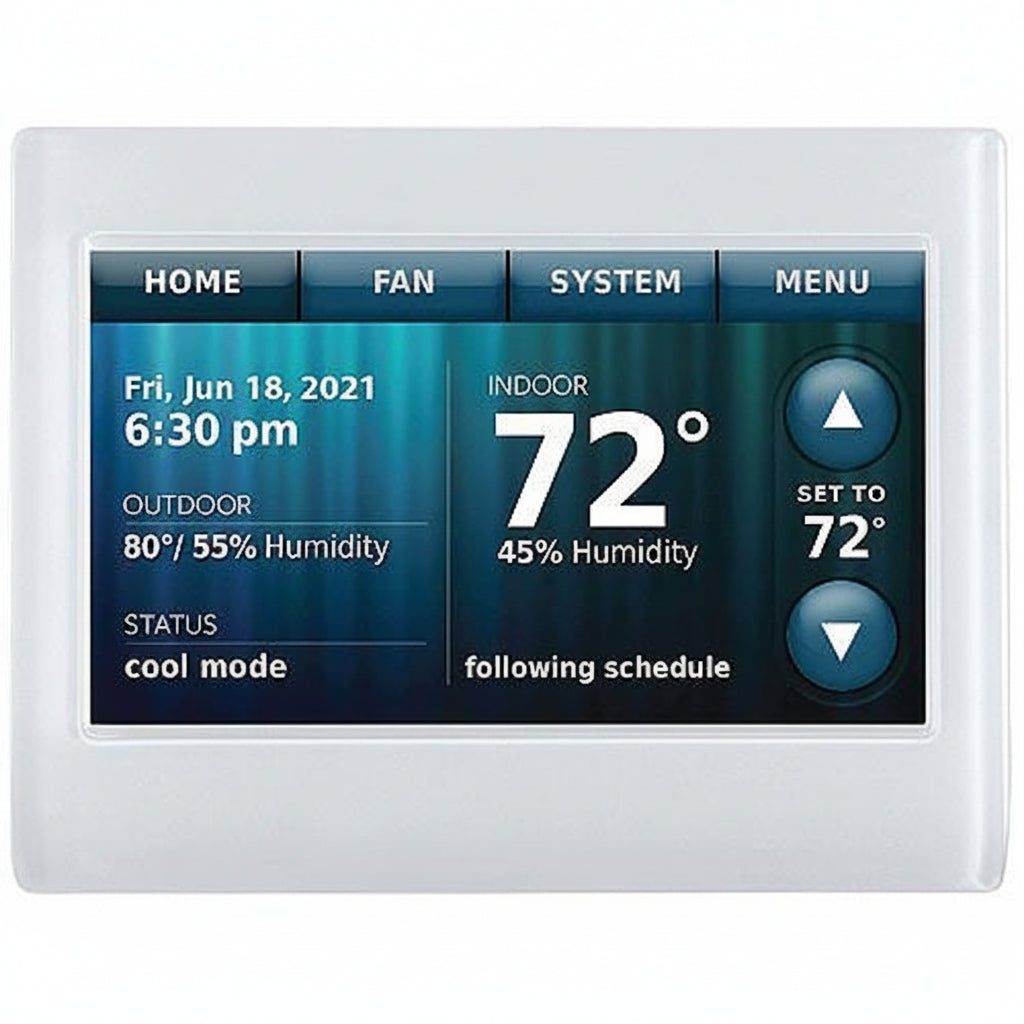

The Honeywell Home TH9320WF5003/U is a Wi-Fi 9000 color touchscreen thermostat that controls heating and cooling and can be reached remotely from a computer, tablet or smartphone through Total Connect Comfort. It suits homeowners who want schedule control and installers specifying a programmable, ENERGY STAR certified thermostat for conventional or heat pump systems. The home screen shows indoor and outdoor temperature and humidity, and the display color can be changed to suit the room.

Key features

  • Indoor and outdoor temperature and humidity appear right on the home screen.
  • Remote access from a computer, tablet or smartphone is provided through the Total Connect Comfort service.
  • Programmable mode helps cut annual heating and cooling costs, with 7-day programming or manual operation.
  • The high-definition display can be set to any color you choose.
  • The thermostat keeps time during a power failure and updates automatically for daylight saving time.
  • It supports up to 3 heat/2 cool on heat pumps and up to 2 heat/2 cool on conventional systems, with cycled or continuous fan operation.

Specifications

Brand: Honeywell Home

Model: TH9320WF5003/U

Product series: 9000

Product type: Thermostat

Thermostat type: Communicating, Digital, Low Voltage, Programmable

Program modes: 7-Day Programmable, Manual / Not Programmed

Stages: Up to 3 Heat/2 Cool Heat Pump, Up to 2 Heat/2 Cool Conventional

Fan function: Cycled, Continuous

Touchscreen: Yes

Programmable: Yes

Energy Star: Yes

Virtual assistant supported: Google Assistant

Color: White

Mount type: Wall Mount

Height: 3.50″

Width: 4.50″

Depth: 0.87″

Compatibility: THP9045 Wire Saver

Application/usage: 2H/2C Conventional Systems

Installation type: Professional Installation

Package contents: TH9320WF5003/U WiFi 9000 Color Touchscreen Thermostat, Remote Control

Country of origin: MX

Installation notes

This is a low-voltage, wall-mount thermostat listed for professional installation, so shut off power to the HVAC equipment and label the wires before removing the old thermostat. Mount it on an interior wall away from direct sunlight, drafts and supply vents, and confirm the Wi-Fi connection and system stage settings during commissioning.

Specifications

BrandHoneywell
ModelTH9320WF5003/U
Product typeSmart Thermostat

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
