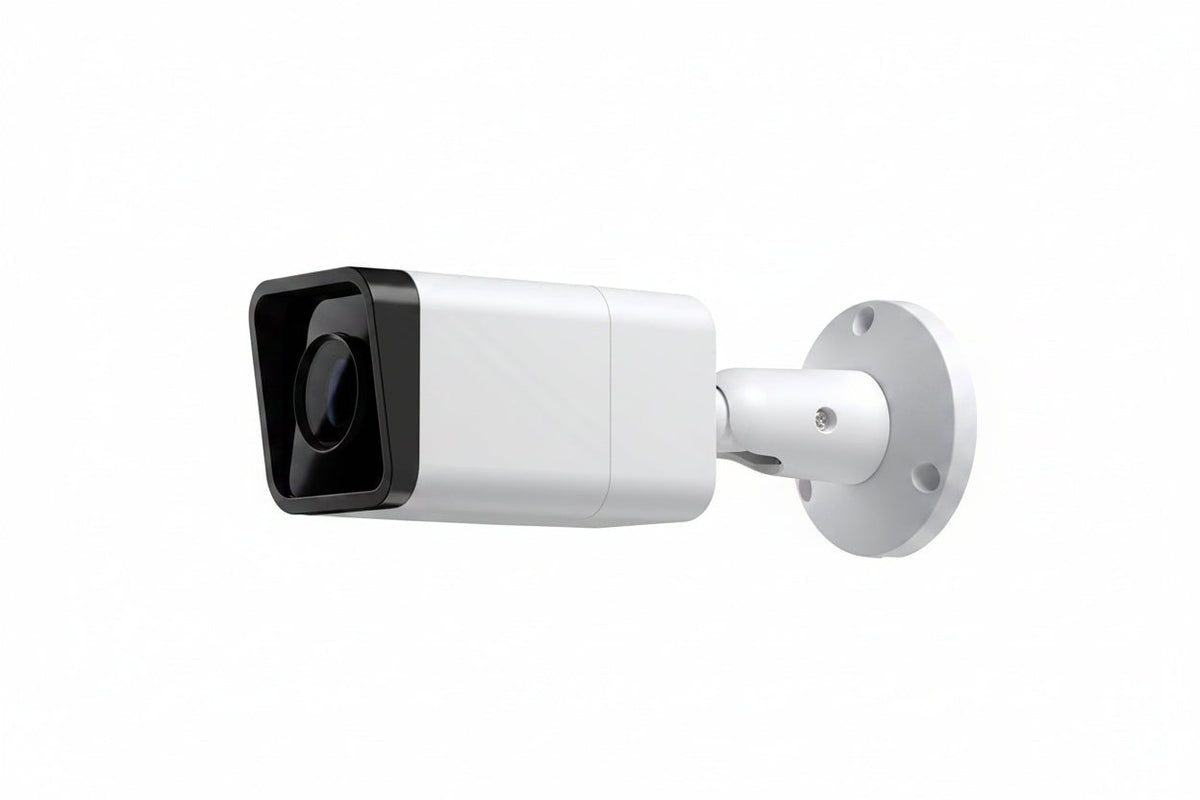

Honeywell HC35WB5R2 35 Series 5MP IR MFZ WDR IP Bullet Camera, 2.7-13.5mm Lens, White

The Honeywell HC35WB5R2 is a 5MP outdoor IP bullet camera from the 35 Series, with a 2.7-13.5mm motorized varifocal lens and built-in IR for night viewing. It suits installers and businesses that need NDAA-compliant video surveillance with adjustable framing from a single camera. True WDR (120dB) and Smart IR help it hold up in glare and dim scenes.

Key features

• The camera is fully NDAA compliant, with no content from companies prohibited under Section 889.
• True day/night uses a removable IR cut filter for color images by day and black and white at night.
• True WDR (120dB) keeps images free of glare, and 2D/3D noise reduction helps in low light while saving storage and bandwidth with smart codec.
• Smart IR distributes the IR LEDs evenly in dim or nighttime scenes.
• The housing is water and dust proof (IP66/IP67) and IK10 rated, depending on model.
• Stream encryption under AES256 protects data between the camera and MAXPRO and Series 35 NVRs, and the camera is ONVIF Profile S, G and T compliant.

Specifications

Brand: Honeywell

Model: HC35WB5R2

Product Series: 35

Product Line: MB Secure

Product Type: Network Camera

Form Factor: Bullet

Color: White

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2592 x 1944

Image Sensor Type: CMOS

Lens Type: Varifocal

Focal Length: 2.7-13.5mm

Optical Zoom: 5.0x

Maximum Aperture: f/1.6

Field of View (Horizontal): 88.0°

Field of View (Vertical): 65.00°

Maximum Frame Rate: 30fps

Wide Dynamic Range: Yes

Shortest Shutter Speed: 1/32000 Second

Longest Shutter Speed: 1/8 Second

Night Vision: Yes

Night Vision Type: NIR Active Illumination

Night Vision Distance: 196.85'

Number of IR LEDs: 4

Recording Formats: H.264

Video Formats: MJPEG

Video Signal Format: NTSC

Storage Type: SD Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Mount Type: Corner Mount

Operating Temperature: -40°F to 140°F

Operating Humidity: 90%

Diameter: 3.40″

Weight: 2.03lb

NDAA Compliant: Yes

TAA Compliant: Yes

RoHS Compliant: Compliant

Country of Origin: VN

Installation notes

Aim the camera away from direct light sources and reflective surfaces, and avoid placing it close to walls or objects that can bounce IR back into the lens at night. Set the framing with the varifocal lens during commissioning, then confirm the 12V DC supply and network cable run before sealing any outdoor cable entry points.
