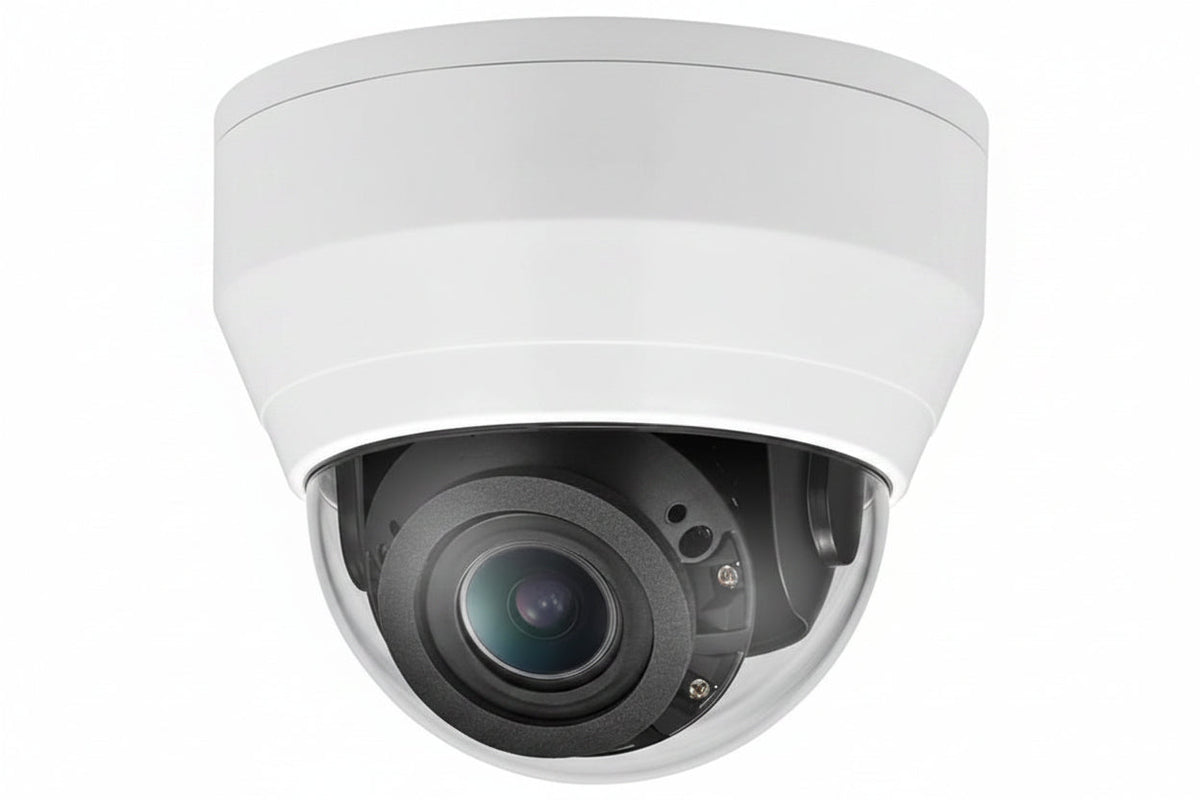

Hanwha QND-8080R Q-Series 5MP IR Dome Camera with 3.2-10mm Motorized Varifocal Lens, White

The Hanwha QND-8080R is a 5MP network IR dome camera from the Q-Series, built for indoor video surveillance. It pairs a 3.2-10mm motorized varifocal lens with built-in infrared night vision, so installers can set the field of view without swapping lenses. It suits business and home installations that need 5MP detail, WDR and onboard card storage from a PoE-powered camera.

Key features

• Captures up to 5MP (2592 x 1944) video at up to 30fps using H.265 or H.264.
• The motorized varifocal lens covers 3.2-10mm (3.1x), so you can adjust framing without a ladder trip to change optics.
• Day and night operation with 120dB WDR, plus IR illumination that reaches 20m.
• Built-in analytics include tampering, motion and defocus detection.
• Supports H.265, H.264 and MJPEG with multiple streaming, and works with WiseStream II and Hallway view.
• A microSD/SDHC/SDXC slot (up to 128GB) allows recording on the camera itself.

Specifications

Model: QND-8080R

Brand: Hanwha

Product name: 5 MP Network IR Dome Camera

Product series: Q

Product type: Network Camera

Color: White

Form factor: Dome

Indoor/Outdoor: Indoor

Effective camera resolution: 5MP

Max resolution: 2592 x 1944

Maximum frame rate: 30fps

Image sensor type: CMOS

Focal length: 3.2-10mm

Maximum aperture: f/1.6

Minimum aperture: f/2.9

Minimum illumination: 0.15Lux (Color), 0Lux (B/W, IR LED on)

Shortest shutter speed: 1/12000 Second

Longest shutter speed: 1/5 Second

Wide dynamic range: Yes (120dB)

Night vision: Yes, Infrared (IR)

Night vision distance: 65.62′ (IR viewable length 20m)

Video formats: H.265, H.264, MJPEG

Storage type: Memory Card (microSD/SDHC/SDXC, max 128GB)

Network (RJ-45): Yes

Power: PoE

Connectivity technology: Wired

Remote management: Yes

Operating temperature: 14°F to 122°F

Operating humidity: 90%

Diameter: 4.70″

Weight: 15.17oz

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: VN

Installation notes

Run a single network cable from a PoE switch or injector to the camera, and keep the location indoors within the listed temperature and humidity range. Aim the camera and set zoom and focus during commissioning with the IR on, and avoid mounting close to walls or glass that could reflect IR light back into the lens.
