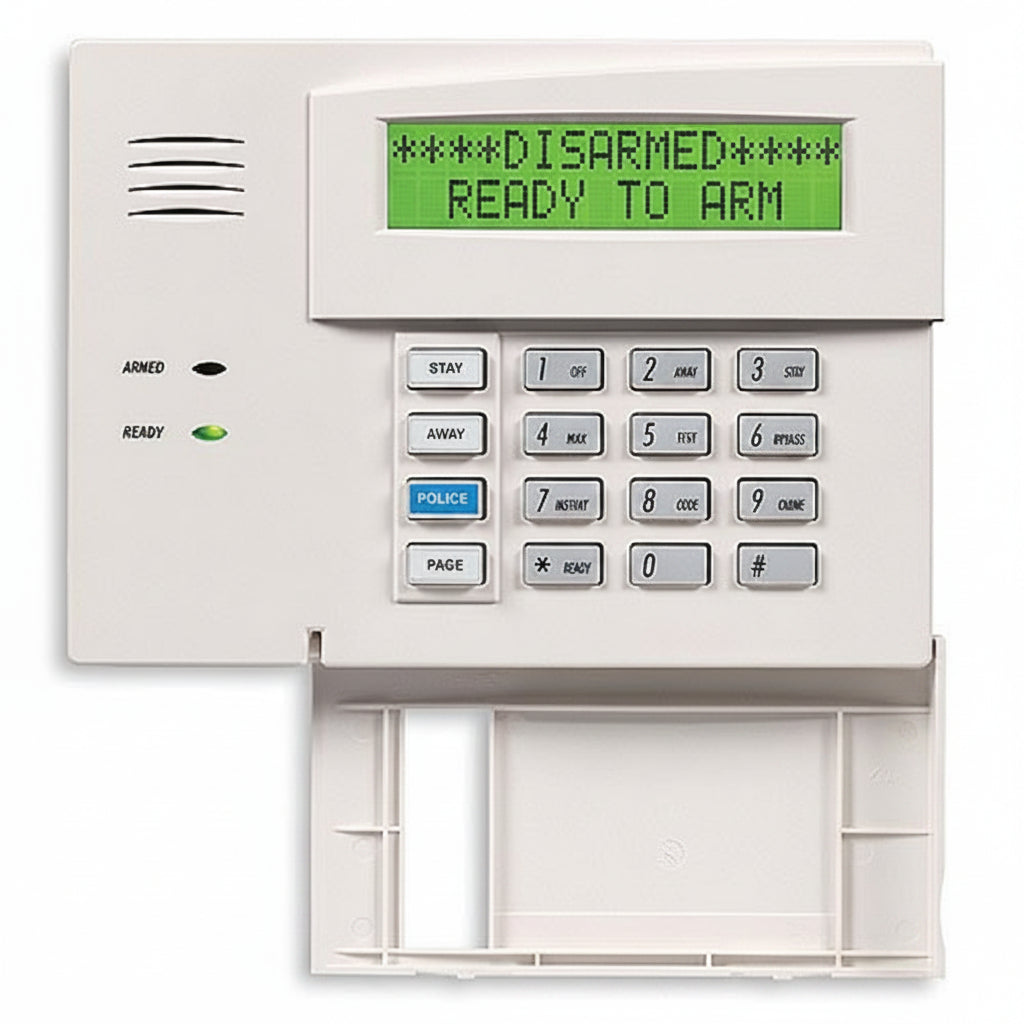

Honeywell Home 6160 32-Character Alpha Display Keypad for VISTA Systems

The Honeywell Home 6160 is a 32-character alpha display keypad for VISTA security systems, used to arm, disarm and control the system. It suits installers and homeowners who want a large, easy-to-read keypad with clearly labeled functions. Its continuously backlit keys, on-screen zone and event display, and four programmable function keys help it stand out.

Key features

• Large keys are continuously backlit for better visibility.
• The display shows zones and system events, with no confusing blinking lights.
• A built-in speaker sounds beeps for system status, entry/exit delay and other alarm situations.
• Four programmable function keys are included.
• Most functions need only the security code plus a command, and system functions are clearly labeled.
• The white finish and removable door blend with most décor.

Specifications

Brand: Honeywell Home

Model: 6160

Product Type: Keypad Access Device

Product Line: VISTA

Compatibility: VISTA-20P

Application: Security System Control

Display: LCD (Liquid Crystal Display)

Identification Method: PIN/Passcode

Number of Zones Supported: 40

Input Voltage: 12V DC

Operating Range: 200'

Color: White

Width: 7.5″

Height: 5.3″

Depth: 1.2″

Package Contents: 6160 Alpha Display Keypad Access Device, colored self-adhesive labels

Installation notes

Choose a mounting spot that is easy to reach and read, near the main entry/exit door. Confirm the keypad is within the 200' operating range and on a 12V DC supply before final connection, then program the function keys during commissioning.
