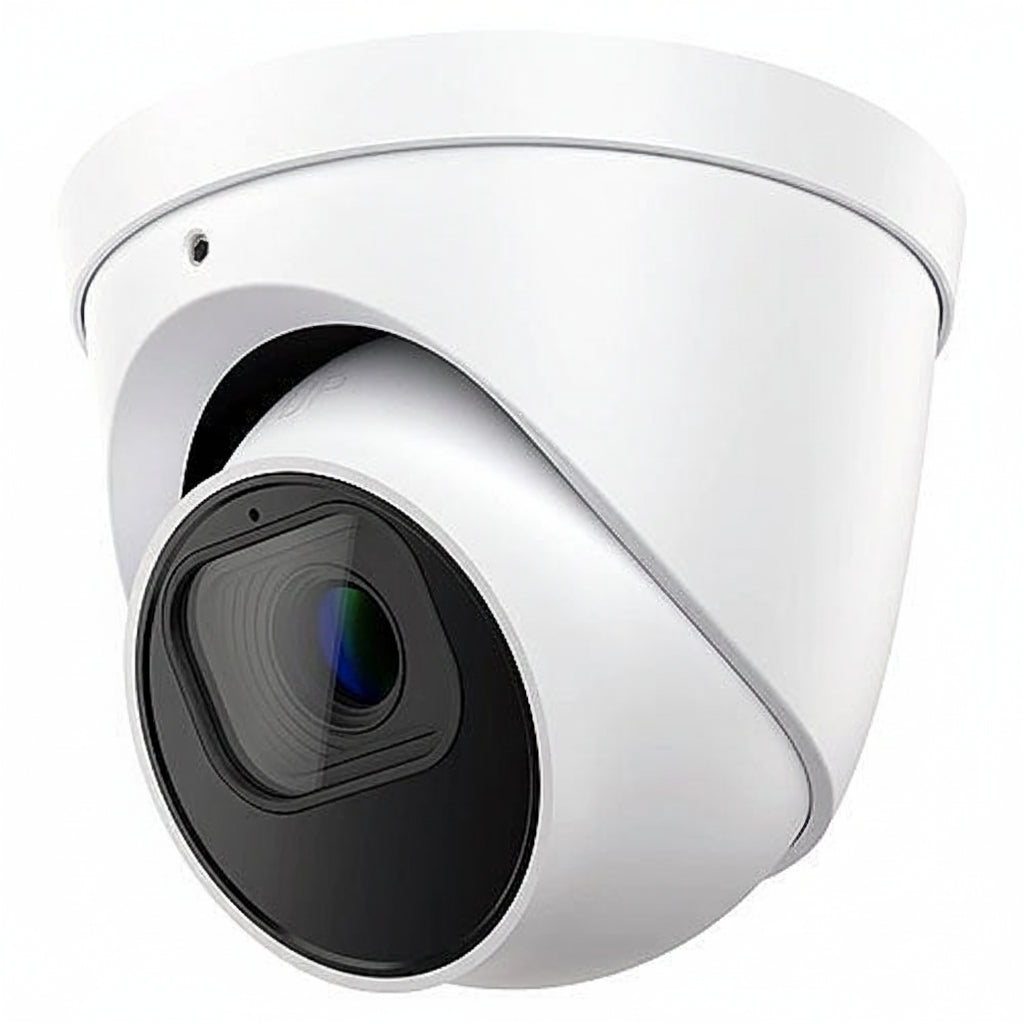

Honeywell HC35WE5R3 35 Series 5MP IR WDR IP Ball Camera, 2.8mm Fixed Lens, White

The Honeywell HC35WE5R3 is a 5MP wired IP ball camera from the 35 Series, with a fixed 2.8mm lens and infrared night vision. It's built for remote surveillance, and it suits installers and businesses that need an outdoor-rated camera with wide dynamic range. IP66 and IK10 ratings, an operating range down to -40°C and NDAA compliance are what stand out.

Key features

• Records up to 2592 x 1944 for real-time surveillance.
• The fixed 2.8mm lens has an f/2.0 maximum aperture for sharp, detailed images.
• Infrared night vision reaches up to 131.23′ (40.00m), using light that is invisible to the eye.
• A CMOS sensor with wide dynamic range and 2D digital noise reduction (2DNR) handles difficult lighting.
• It is rated IP66 and IK10, with dust resistance, for outdoor use.
• It runs on 12V DC and connects over a wired RJ-45 network port, with remote management.

Specifications

Brand: Honeywell

Model: HC35WE5R3

Product Series: 35

Product Line: MB Secure

Color: White

Form Factor: Ball

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2592 x 1944

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Fixed

Lens Included: Yes

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View (Horizontal): 88.0°

Field of View (Vertical): 65.00°

Wide Dynamic Range: Yes

Features: 2D Digital Noise Reduction (2DNR)

Shutter Speed: 1/8 second (longest) to 1/32000 second (shortest)

Night Vision: Yes

Night Vision Type: NIR Active Illumination

Night Vision Distance: 40.00m (131.23′)

Number of IR LEDs: 3

Video Formats: MJPEG

Video Signal Format: NTSC

Storage Type: SD Card

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Dust Resistant

Operating Temperature: -40°C to 60°C

Operating Humidity: 90%

Height: 94.40mm

Diameter: 110.00mm

Weight: 600.00g

NDAA Compliant: Yes

RoHS Compliant: Compliant

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: VN

Installation notes

Mount the camera on a solid surface and aim it to cover the target area. Keep it clear of nearby surfaces that could reflect the IR illumination back into the lens. Confirm the 12V DC supply is correct and the network cable run is sound before you commission the camera and set up remote access.
