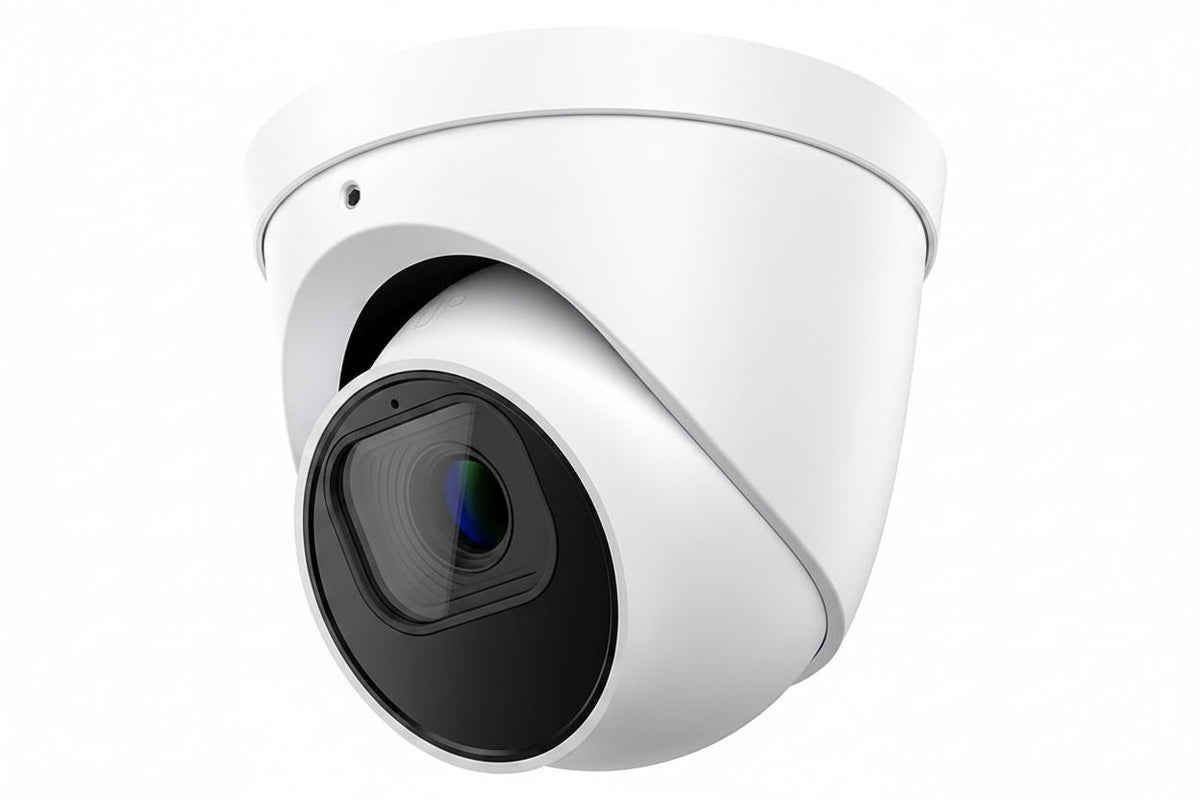

Honeywell HC35WE3R2 35 Series 3MP IR MFZ WDR IP Ball Camera, 2.7-13.5mm Lens, White

The Honeywell HC35WE3R2 is a 3MP wired IP ball camera from the 35 Series, built for ceiling-mount video surveillance with infrared night vision. Its varifocal 2.7-13.5mm lens and 5x optical zoom let you set the view on site, which suits installers covering indoor or outdoor areas. IP66 and IK10 ratings and NDAA compliance round out the package.

Key features

• The varifocal lens with 5x optical zoom lets you tune the field of view during commissioning.
• Infrared night vision reaches objects up to 164.04 ft away, using 4 IR LEDs.
• Wide dynamic range and 2D digital noise reduction help keep the image usable in difficult lighting.
• The IP66 and IK10 ratings cover dust and water ingress and physical impact.
• The camera records to an SD card and supports remote management over the network.
• It is NDAA compliant and RoHS compliant.

Specifications

Brand: Honeywell

Model: HC35WE3R2

Product Series: 35

Product Line: MB Secure

Product Type: Network Camera

Form Factor: Ball

Color: White

Effective Camera Resolution: 3MP

Image Sensor Type: CMOS

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 2.7-13.5mm

Optical Zoom: 5.0x

Maximum Aperture: f/3.3

Minimum Aperture: f/1.6

Field of View (Horizontal): 81.0°

Field of View (Vertical): 44.00°

Maximum Frame Rate: 30fps

Shortest Shutter Speed: 1/32000 Second

Longest Shutter Speed: 1/8 Second

Wide Dynamic Range: Yes

Features: 2D Digital Noise Reduction (2DNR)

Video Formats: MJPEG

Video Signal Format: NTSC

Night Vision: Yes

Night Vision Type: NIR Active Illumination

Night Vision Distance: 164.04 ft

Number of IR LEDs: 4

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: SD Card

Input Voltage: 12V DC

Mount Type: Ceiling Mount

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Dust Resistant

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 140°F

Operating Humidity: 90%

Diameter: 5.00″

Weight: 2.16 lb

NDAA Compliant: Yes

Environmental Certification: RoHS

Country of Origin: VN

Installation notes

This camera needs a 12V DC supply and a wired RJ-45 network connection, so plan both cable runs before mounting. Use the varifocal lens to set the framing while viewing the live image, and aim it so the IR LEDs are not pointed at nearby walls or glass that could reflect light back into the lens.
