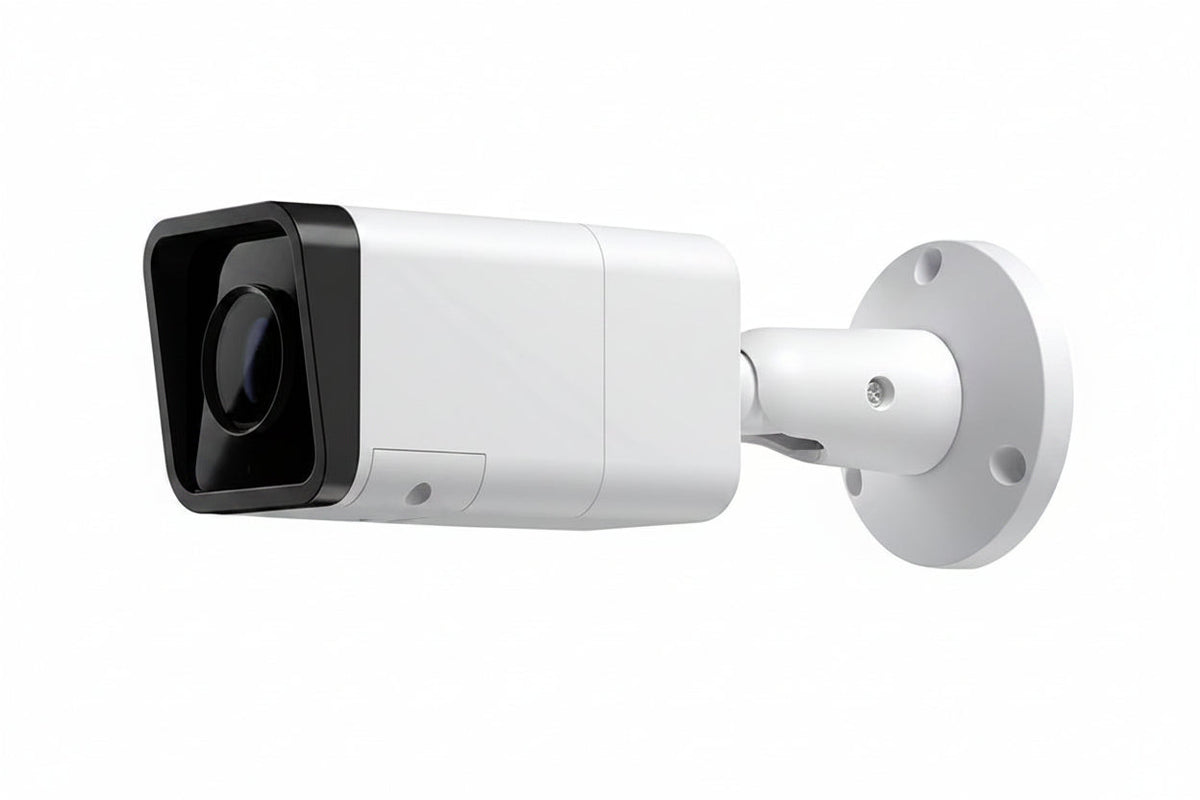

Honeywell HC35WB8R2 35 Series 8MP IP WDR IR MFZ Bullet Camera, 2.7-13.5mm Lens, White

The Honeywell HC35WB8R2 is an 8MP outdoor bullet network camera from the 35 Series, built for video surveillance at entrances, perimeters and parking areas. It pairs a 2.7-13.5mm varifocal lens with 5x optical zoom, so an installer can set the field of view on site, and it carries IR night vision out to 196.85'. Its IP66 and IK10 ratings, wide dynamic range and NDAA compliance suit commercial and residential jobs alike.

Key features

• Records at up to 3840 x 2160 (4K), giving detailed footage for identification.
• The varifocal lens runs from 2.7mm to 13.5mm with 5x optical zoom, so you can tune coverage to the scene.
• Infrared night vision reaches 196.85' and works without any external light source.
• A f/1.6 maximum aperture helps the camera capture usable images across different lighting conditions.
• Wide dynamic range and 2D digital noise reduction help keep the picture clear.
• IP66 ingress protection and an IK10 impact rating make it suited to outdoor mounting.

Specifications

Brand: Honeywell

Model: HC35WB8R2

Product Series: 35

Product Line: MB Secure

Product Type: Network Camera

Form Factor: Bullet

Color: White

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 2.7-13.5mm

Maximum Aperture: f/1.6

Minimum Aperture: f/3.3

Optical Zoom: 5x

Field of View (Horizontal): 98°

Field of View (Vertical): 51.0°

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: NIR Active Illumination

Night Vision Distance: 196.85'

Number of IR LEDs: 4

Shortest Shutter Speed: 1/32000 Second

Longest Shutter Speed: 1/8 Second

Recording Formats: H.264

Video Formats: MJPEG

Video Signal Format: NTSC

Storage Type: SD Card

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Input Voltage: 12V DC

Mount Type: Corner Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Dust Resistant

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 140°F

Operating Humidity: 90%

Diameter: 3.4″

Weight: 2.03lb

NDAA Compliant: Yes

RoHS Compliant: Compliant

Environmental Certification: RoHS

Country of Origin: Vietnam

Installation notes

Choose a mounting point with a clear view of the target area and enough room to aim the camera, then set the varifocal lens and focus while viewing the live image. Confirm the 12V DC supply and the network cable run before final mounting, and seal the cable entry so the outdoor rating is kept.
