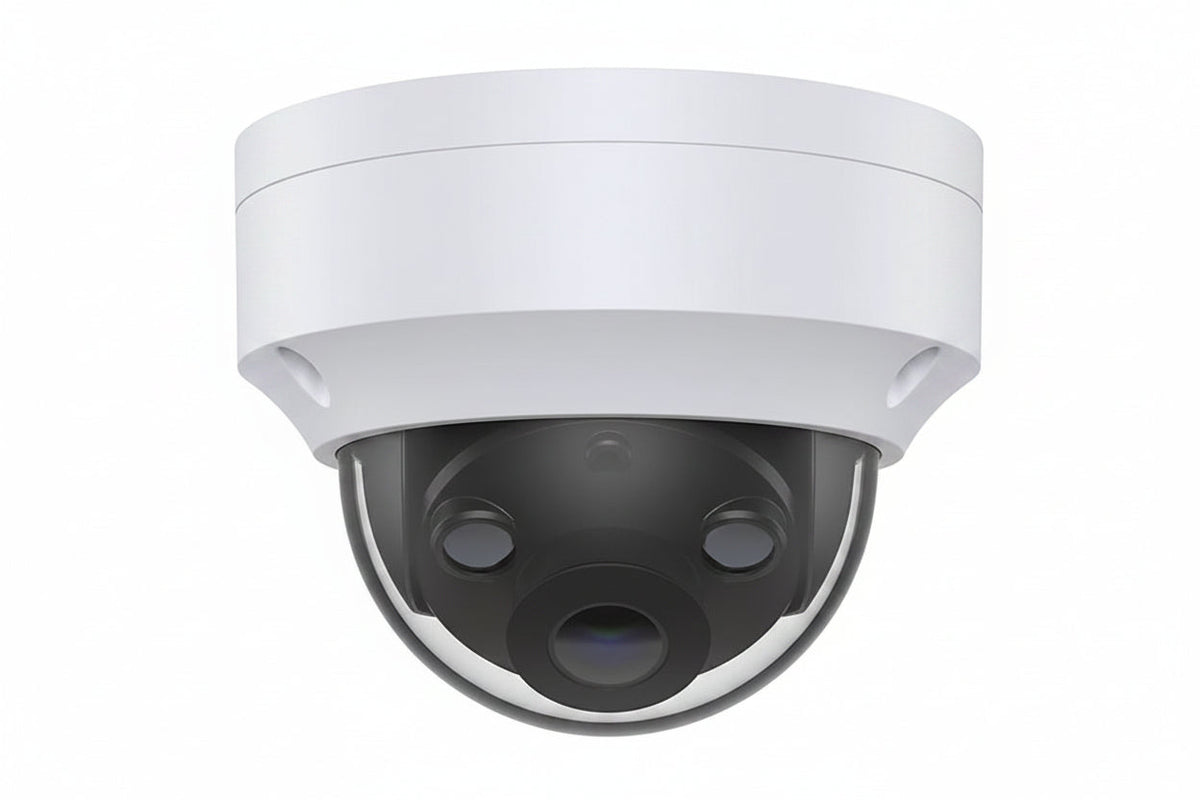

Honeywell HC35W45R3 35 Series 5MP IR Rugged Mini WDR IP Dome Camera, 2.8mm Lens, White

The Honeywell HC35W45R3 is a 35 Series mini dome network camera with a 5MP sensor, a fixed 2.8mm lens and infrared night vision. It handles indoor video surveillance for installers, businesses and homeowners who want a compact, vandal-resistant dome with wide dynamic range. The IK10 impact rating, IP66 ingress rating and operating range down to -40°C stand out for a camera of this size.

Key features

• Records at up to 2592 x 1944 for real-time surveillance.
• Infrared night vision reaches up to 131.23' (40.00m) in the dark.
• The fixed 2.8mm lens has an f/2.0 maximum aperture and a 93.0° horizontal field of view.
• A CMOS sensor with wide dynamic range and 2D noise reduction helps keep the picture usable.
• It runs on 12V DC and connects over a wired RJ-45 network port.
• Remote management and SD card storage are supported.

Specifications

Model: HC35W45R3

Brand: Honeywell

Product Series: 35

Product Line: MB Secure

Form Factor: Mini Dome

Color: White

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2592 x 1944

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View (Horizontal): 93.0°

Field of View (Vertical): 68.00°

Wide Dynamic Range: Yes

Shortest Shutter Speed: 1/32000 Second

Longest Shutter Speed: 1/8 Second

Night Vision: Yes

Night Vision Type: NIR Active Illumination

Night Vision Distance: 40.00m

Video Formats: MJPEG

Video Signal Format: NTSC

Features: 2D Noise Reduction

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: SD Card

Input Voltage: 12V DC

Mount Type: Ceiling Mount

Indoor/Outdoor: Indoor

Durability: Rugged

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

Operating Humidity: 90%

Minimum Operating Temperature: -40°C

Maximum Operating Temperature: 60°C

Height: 85.60mm

Diameter: 110.00mm

Weight: 560.00g

Environmental Certification: RoHS

RoHS Compliant: Compliant

Environmentally Friendly: Yes

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Mount the camera to a solid surface or junction box and aim it so the infrared illumination is not pointed at a nearby wall, glass or other close reflective surface, which can wash out the night image. Supply regulated 12V DC power and test the network connection and image at the install location before closing up the ceiling or box.
