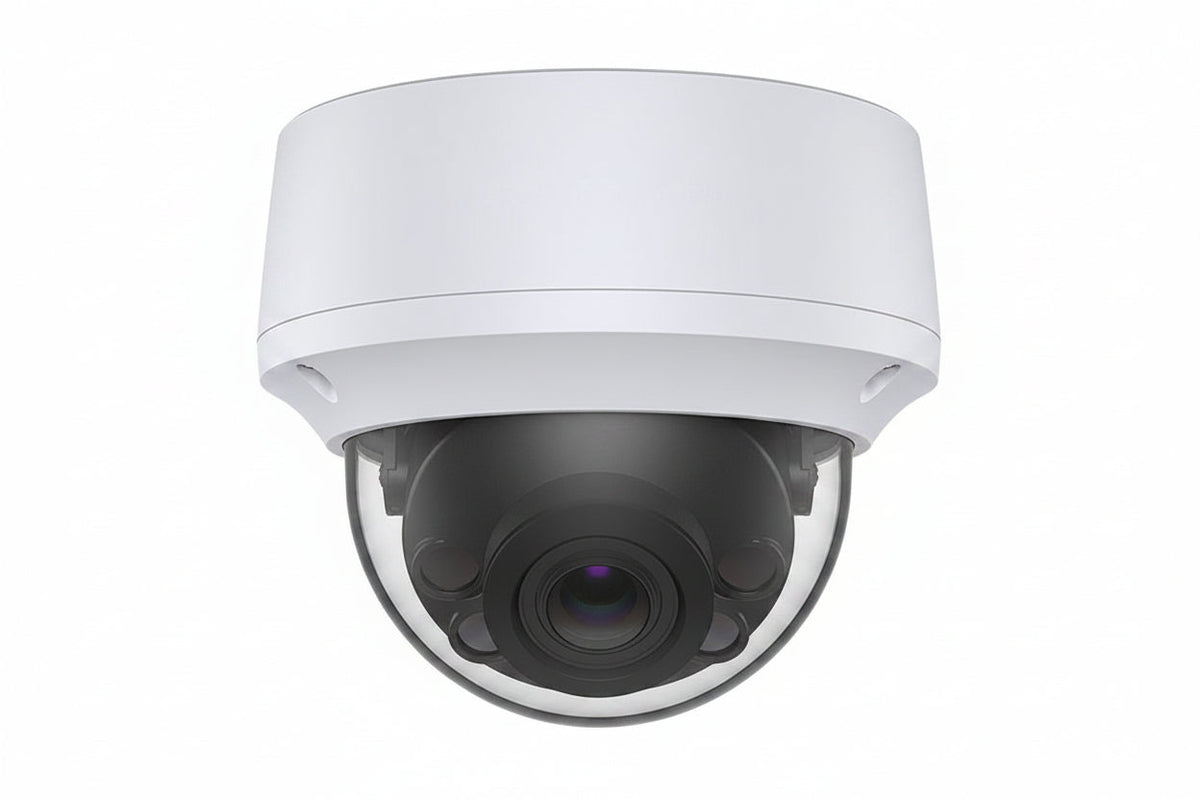

Honeywell HC35W45R2 35 Series 5MP IR MFZ WDR IP Dome Camera, 2.7-13.5mm Lens, White

The Honeywell HC35W45R2 is a 5MP outdoor IR mini dome network camera from the 35 Series, built for video surveillance on business and residential sites. It pairs a 2.7-13.5mm varifocal lens with 5x optical zoom, wide dynamic range and infrared night vision out to 164.04', so you can tune the field of view on site. The IK10 impact rating and IP66 ingress rating suit exposed locations.

Key features

• Records at up to 2592 x 1944 resolution from a CMOS image sensor.
• The varifocal lens covers 2.7-13.5mm with 5x optical zoom and an f/1.6 maximum aperture.
• Built-in infrared night vision reaches up to 164.04' without any external light source.
• Wide dynamic range and 2D noise reduction help with picture quality.
• Runs on 12V DC and connects over a wired RJ-45 network port.

Specifications

Brand: Honeywell

Model: HC35W45R2

Product Series: 35

Product Line: MB Secure

Product Type: Dome Cameras

Form Factor: Mini Dome

Color: White

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2592 x 1944

Image Sensor Type: CMOS

Maximum Frame Rate: 30fps

Video Formats: MJPEG

Video Signal Format: NTSC

Lens Included: Yes

Lens Type: Varifocal

Focal Length: 2.7-13.5mm

Optical Zoom: 5.0x

Maximum Aperture: f/1.6

Minimum Aperture: f/3.3

Field of View (Horizontal): 96.0°

Field of View (Vertical): 69.00°

Shortest Shutter Speed: 1/32000 Second

Longest Shutter Speed: 1/8 Second

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 164.04'

Features: 2D Noise Reduction

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: SD Card

Input Voltage: 12V DC

Mount Type: Box Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Rugged

Operating Temperature: -40°F to 140°F

Operating Humidity: 90%

Diameter: 5.10″

Height: 4.40″

Weight: 1.90lb

Environmental Certification: RoHS

Country of Origin: VN

Installation notes

Aim the camera and set the varifocal lens at the mounting location, and confirm the view before closing up the dome. Use a stable 12V DC supply, and seal the cable entry well, since the camera sits outdoors.
