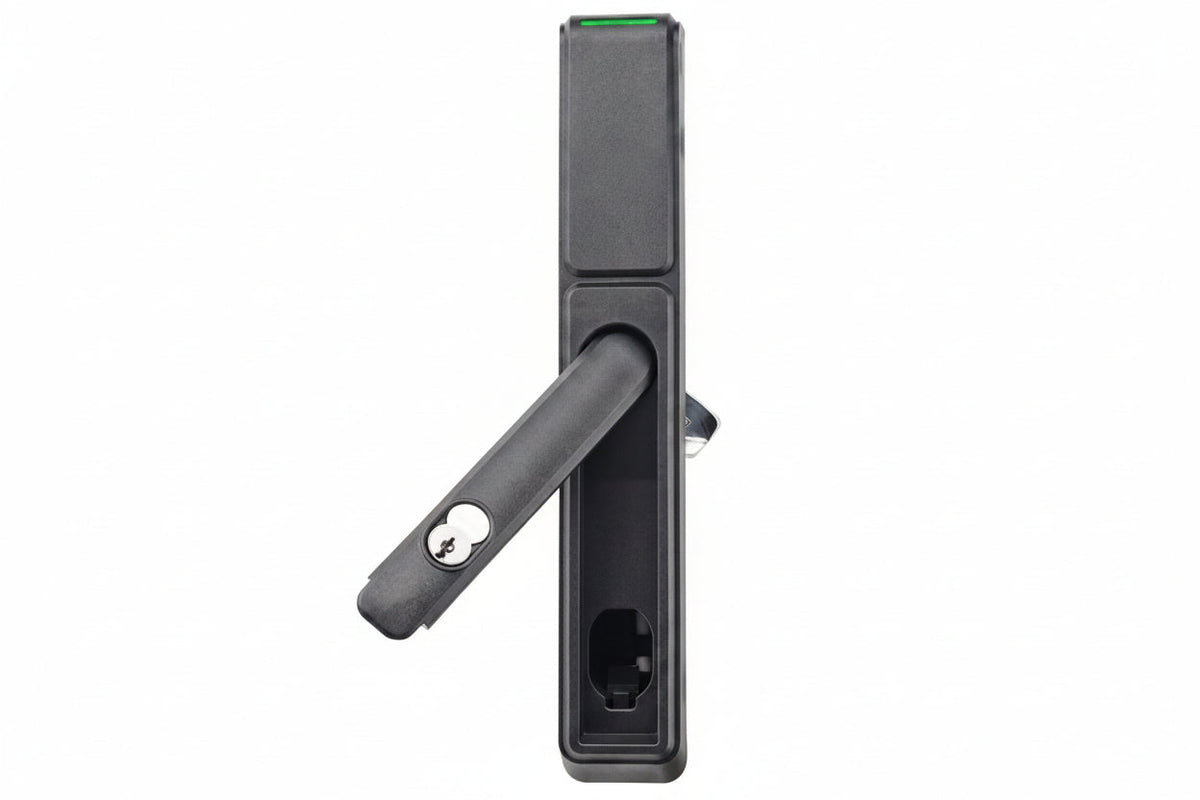

HES KS200-S-IPS-B-K1 KS Series Server Cabinet Lock, Wiegand, Swing Handle, HID multiCLASS SE Technology, MEDECO X4 SFIC Core, Black

The HES KS200-S-IPS-B-K1 is a Wiegand server cabinet lock with a swing handle and an integrated HID multiCLASS SE card reader, finished in matte black. It adds card-based access control to data center cabinets and tells your system about tampering, cam rotation and locked state. A 6 or 7-pin MEDECO X4 SFIC key override gives a mechanical way in when needed.

Key features

• The built-in HID multiCLASS SE reader is NFC mobile access enabled.
• It reports tamper, cam rotation and locked state, with optional external door position status.
• LEDs show valid and invalid entries in red/amber or green/amber.
• The mechanical SFIC key override takes 6 or 7-pin cores and works with MEDECO XT Intelligent Keys.
• It is cam activated, non-handed, and communicates over hard-wired Wiegand with 10-wire operation.
• It comes with a SecuriCare three-year, no-fault, no-questions-asked coverage.

Specifications

Brand: HES

Model: KS200-S-IPS-B-K1

Product Series: KS200

Product Type: Electric Cabinet Lock

Application/Usage: Data Centers

Color: Black

Finishing: Matte Black

Thickness: 0.23cm

Country of Origin: US

Vendor Name: 1436~HES by ASSA ABLOY

Installation notes

Plan the cable run to the access controller before mounting, since the lock needs a 10-wire connection and hard-wired Wiegand. Check the cabinet door thickness and cam alignment, then test the reader, LEDs, key override and monitoring outputs before putting the cabinet into service.
