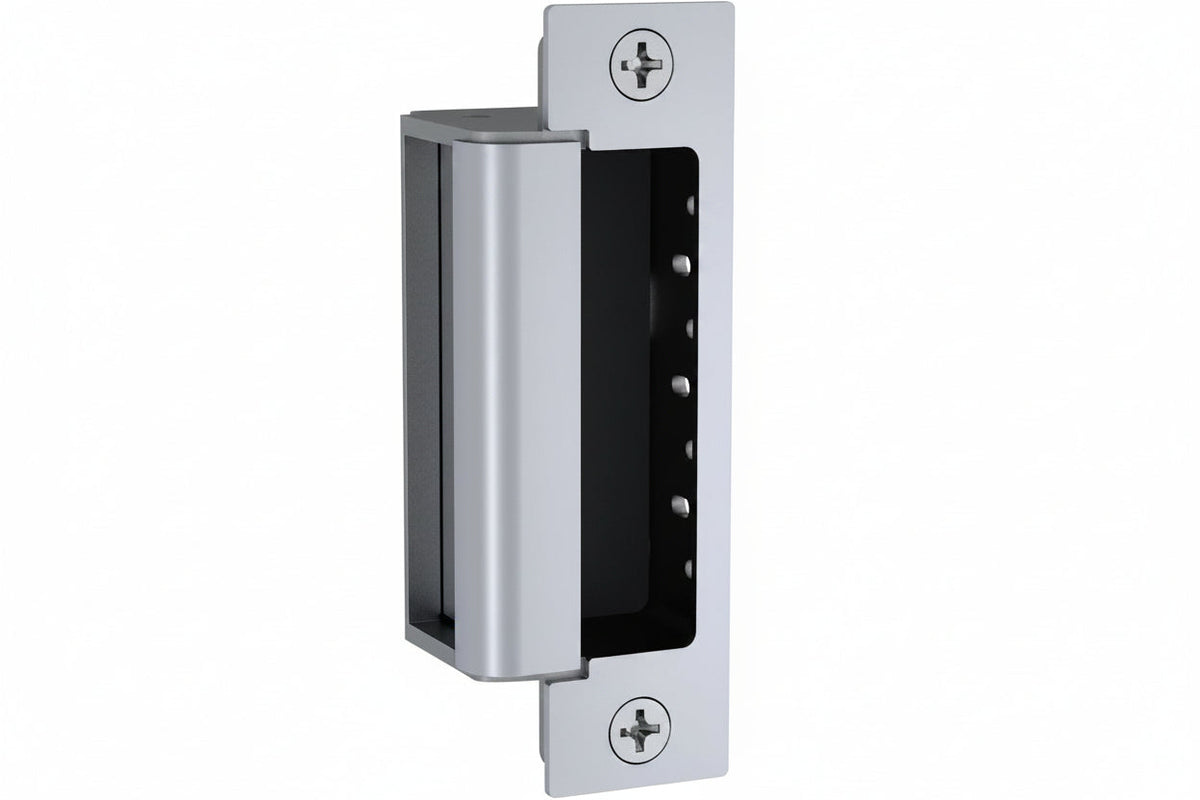

HES 1600-CLB-630 1600 Series Complete Electric Strike for Latchbolt Locks with 1LB Faceplate Kit, Satin Stainless Steel

The HES 1600-CLB-630 is a complete 1600 Series electric strike for latchbolt locks, supplied with a 1LB faceplate kit in satin stainless steel. It releases a locked door under electrical control, and it suits installers and businesses fitting access control to metal frames. Its low profile for latchbolts, field-selectable fail safe or fail secure operation and non-handed design stand out.

Key features

• Stainless steel construction with a fully finished faceplate, keeper, case and trim.
• Low profile design made for latchbolts.
• Fail safe or fail secure operation can be selected in the field.
• Rated for 70 ft-lbs dynamic strength and 1,000,000 cycles of endurance.
• Non-handed, so one unit fits either door swing.
• Faceplates and accessories are interchangeable, and components are field replaceable.

Specifications

Brand: HES

Model: 1600-CLB-630

Product Series: 1600

Product Type: Electric Strike

Material: Stainless Steel

Color: Silver

Application: Door

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Rim Exit

Compatibility: HES 1600 Series Electric Strike

Security Configuration: Fail Secure

Door Handling: Non-Handed

Power Source: AC Power

Input Voltage: 12V DC

Input Current: 250mA

Holding Strength: 70lb

Width: 1.25″

Height: 4.88″

Environmental Certification: RoHS

Country of Origin: US

Installation notes

Confirm the strike is set to the fail safe or fail secure mode your application needs before closing up the frame. Check that the power supply matches the strike's listed voltage and current, and test the release with the door closed before handing the system over.
