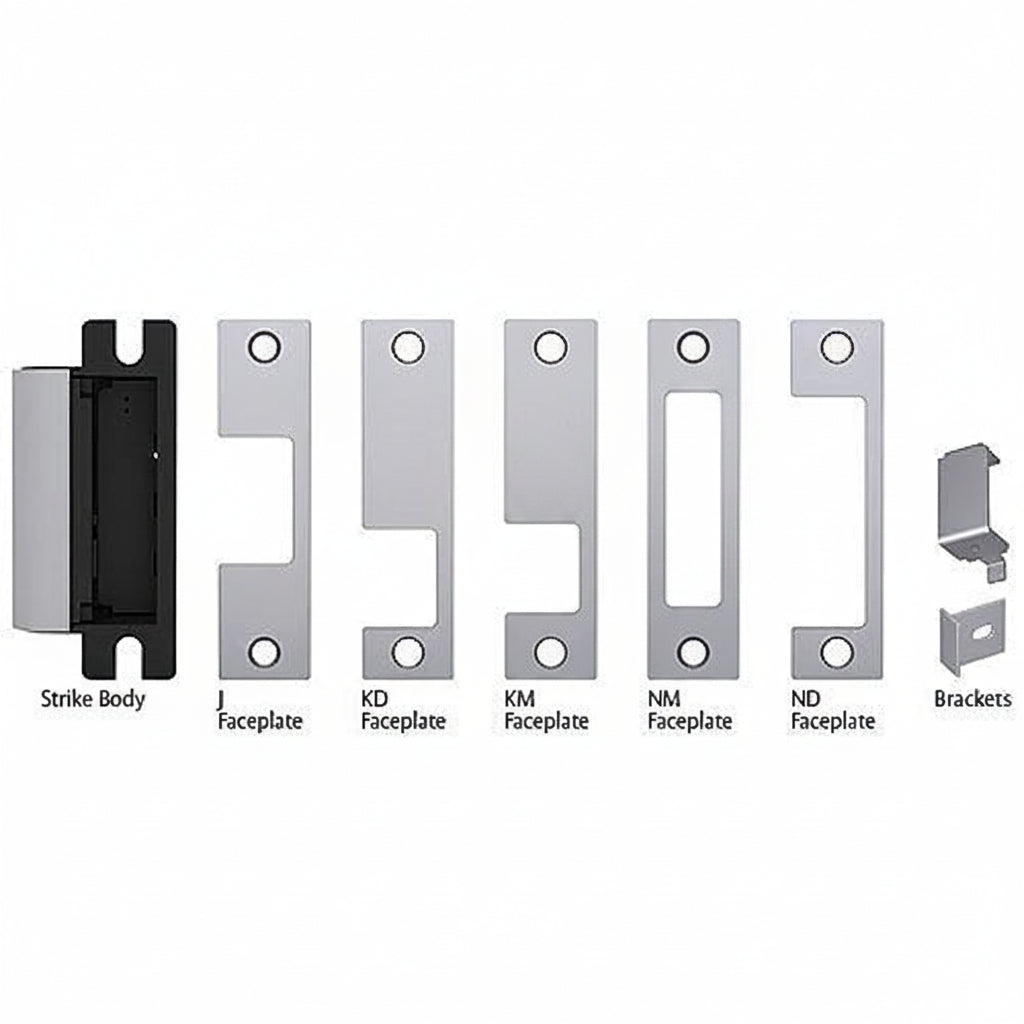

HES 1006CS-630 1006 Series Complete Electric Strike, Includes Smart Pac III, Faceplates (J, KD, KM, HM, ND) and Brackets, Satin Stainless Steel

The HES 1006CS-630 (model 10620496) is a complete 1006 Series electric strike kit that releases a cylindrical lockset on a metal door frame when it receives power. It is built for installers and facilities that need a strong, non-handed strike with a fail secure setup, and the kit includes the Smart Pac III, five faceplates (J, KD, KM, HM, ND) and brackets. Stainless steel construction, a tamper resistant design and a 2,500lb static rating are what set it apart.

Key features

• The stainless steel body is tamper resistant and rated for 1,000,000 cycles.
• Static strength is 2,500lb and dynamic strength is 350 ft-lbs, both in fail secure mode.
• It is fail secure as standard and non-handed, so one strike suits either door swing.
• It accommodates a deadbolt up to 1″ (25.4mm).
• A plug-in connector simplifies wiring.
• Full keeper shims allow horizontal adjustment, and the keeper itself is adjustable.

Specifications

Brand: HES

Model: 10620496

Product series: 1006

Product type: Electric Strike

Application: Door

Security configuration: Fail Secure

Door handling: Non-Handed

Compatible door frame type: Metal

Compatible door lock type: Cylindrical

Material: Stainless Steel

Finish/color: Satin Stainless Steel (630), Silver

Holding strength: 2500lb

Input voltage: 12V DC

Input current: 450mA

Height: 4.87″

Width: 1.68″

Depth: 2.06″

Country of origin: US

Installation notes

Choose the faceplate that matches the frame preparation, and use the keeper shims to set the horizontal alignment so the latch or deadbolt releases cleanly without binding. Confirm the power supply provides 12V DC with enough current for the strike, and test the release with the door closed before finishing the install.
