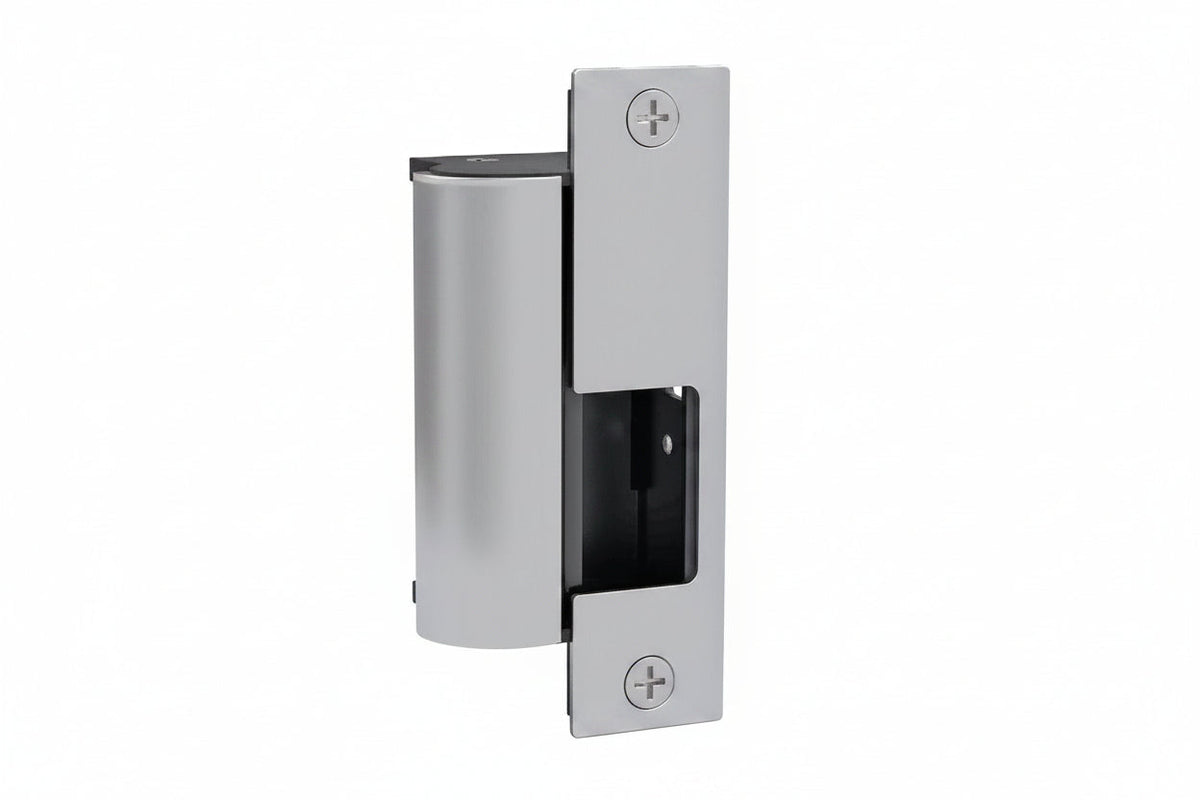

HES 1006CLB-F-12/24D-630 1006 Series Complete Electric Strike, Fail Safe, Includes Faceplates (J, K, KD, KM), Satin Stainless Steel

The HES 1006CLB-F-12/24D-630 (model 10620444) is a complete 1006 Series electric strike in satin stainless steel, used to release a cylindrical lockset from the access control side of a metal door frame. It suits installers and facility owners who need a non-handed strike with a high holding strength, rated at 2500lb. The tamper-resistant stainless steel body, 1,000,000-cycle endurance rating and included J, K, KD and KM faceplates make it a versatile choice for varied door preparations.

Key features

• Stainless steel construction with a tamper-resistant design.
• Static strength of 2,500 lbs and dynamic strength of 350 ft-lbs. (fail secure).
• Rated for 1,000,000 cycles of endurance.
• Non-handed, so one unit works on either door swing.
• Accommodates a deadbolt up to 1″ (25.4mm).
• Plug-in connector and full keeper shims for horizontal adjustment.

Specifications

Brand: HES

Model: 10620444

Product Series: 1006

Product Type: Electric Strike

Faceplates Included: J, K, KD, KM

Color: Silver (satin stainless steel)

Material: Stainless Steel

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Door Handling: Non-Handed

Features: Adjustable Keeper

Security Configuration: Fail Secure

Holding Strength: 2500lb

Input Voltage: 12V DC

Input Current: 450mA

Height: 4.87″

Width: 1.68″

Depth: 2.06″

Country of Origin: US

Installation notes

Use the keeper shims to fine-tune the horizontal position of the keeper so the latch releases smoothly and the door closes without binding. Confirm your power supply matches the strike's input voltage before connecting the plug-in connector, and test the release and latch engagement with the door closed before handing the system over.
