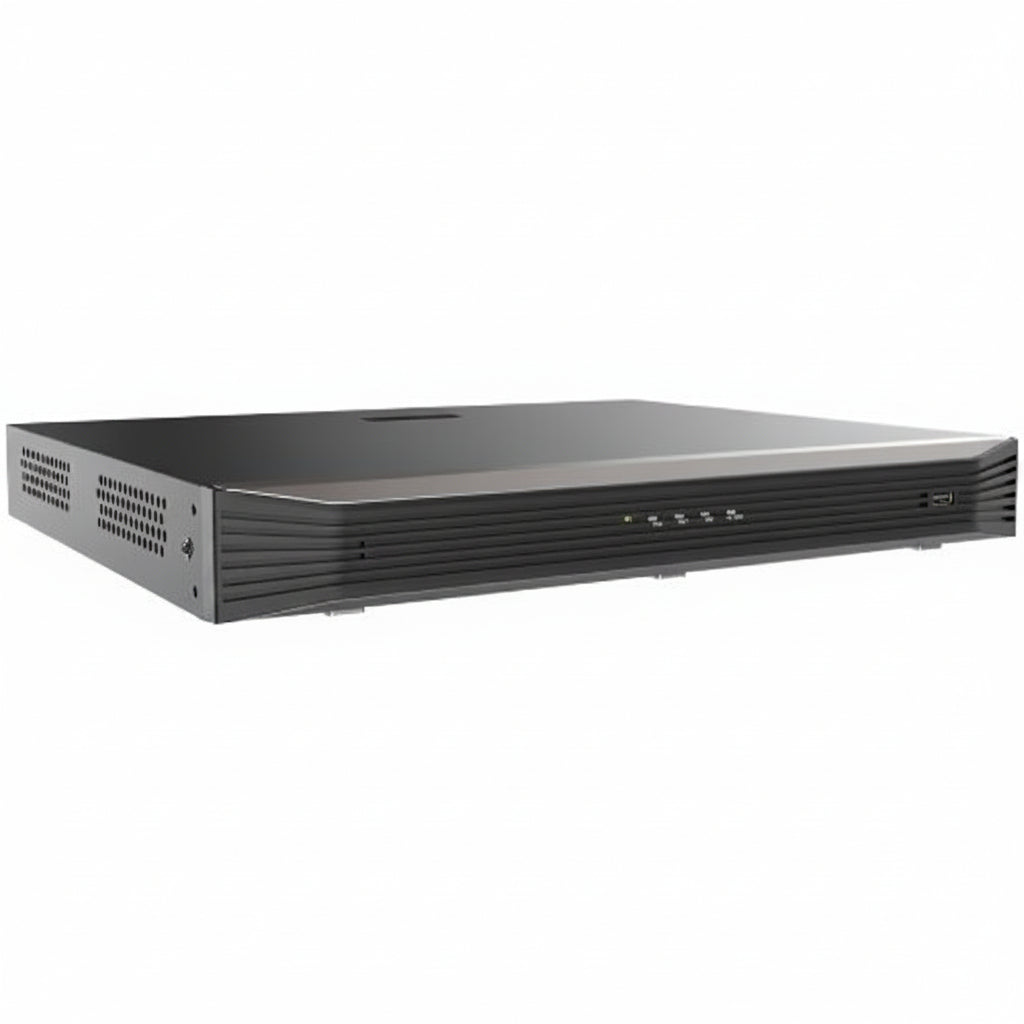

GeoVision GV-TNVR1620-P 16-Channel Linux-Embedded Standalone NVR with PoE, 2-Bay

The GeoVision GV-TNVR1620-P (model 801-TNR1620-P00U) is a 16-channel Linux-embedded standalone NVR with built-in PoE and two SATA bays. It records and manages IP camera video for installers, businesses and homeowners who want a self-contained recorder with cameras powered straight from the unit. Its 16 PoE ports, recording up to 12MP and 4K display output stand out.

Key features

• Sixteen PoE ports let you plug in and power cameras directly from the recorder.
• It records at resolutions up to 12MP across 16 channels, with two SATA ports for storage.
• VGA and HDMI outputs run at the same time, at up to 4K (3840x2160).
• Two-way audio, 8 alarm inputs and 2 alarm outputs support on-site communication and alarm connections.
• Realtime face recognition is supported, along with analytics performed by compatible cameras.
• ONVIF cameras are supported, and iOS and Android devices can be used for access.

Specifications

Brand: GeoVision

Model: 801-TNR1620-P00U

Product type: Network Video Recorder

Number of channels: 16

Storage bays: 2 SATA

Maximum recording resolution: 12MP

Video output: VGA and HDMI, up to 4K (3840x2160)

PoE ports: 16

Alarm I/O: 8 inputs, 2 outputs

Installation notes

Mount the recorder in a ventilated spot, such as a rack or shelf, with room around it for airflow, and install the hard drives before powering up. Run each camera back to its PoE port on a home-run cable and confirm every camera is detected before finalizing the layout.
