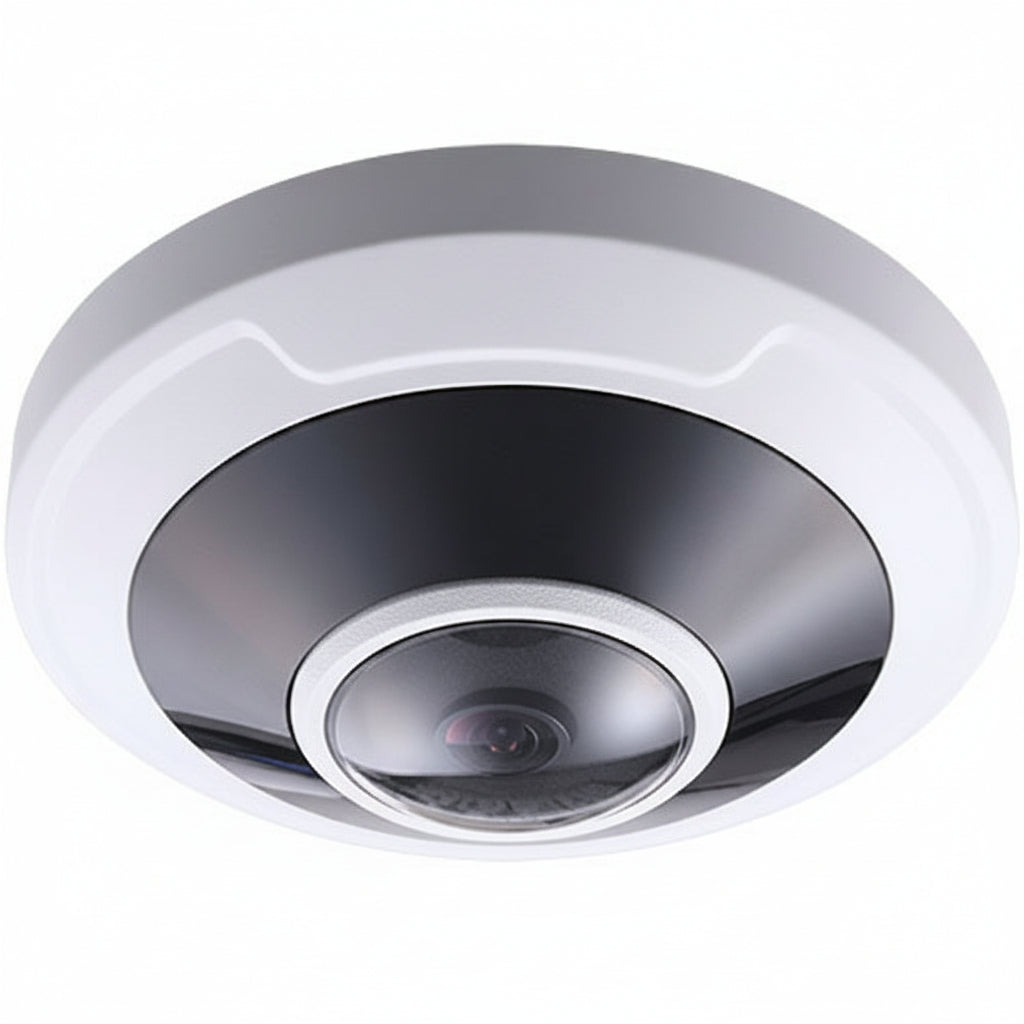

GeoVision GV-FER5702 5MP Outdoor WDR Pro IR Fisheye Rugged IP Camera, 1.4mm Lens, White, (Replaces GV-FER5701)

The GeoVision GV-FER5702 is a 5MP outdoor fisheye IP camera with a 1.4mm fixed lens, built to watch an entire area from a single ceiling or wall mounting point. It suits installers and businesses that need wide coverage in a rugged, vandal-resistant housing, and it replaces the GV-FER5701. Standouts include WDR Pro, built-in IR night vision, a built-in microphone and onboard micro SD recording.

Key features

• A 1/2.8″ progressive scan CMOS sensor delivers up to 30 fps at 2592x1944.
• Wide Dynamic Range Pro helps with scenes that mix bright and dark areas.
• Day and Night operation uses a removable IR-cut filter.
• Triple streams are available in H.265, H.264 and MJPEG.
• The housing is rated IK10 for vandal resistance and IP66 for ingress protection.
• It has a built-in microphone, one sensor input, one alarm output and a micro SD slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage.

Specifications

Model: GV-FER5702 (125-FER5702-000)

Brand: GeoVision

Product type: IP Fisheye Camera

Color: White

Effective resolution: 5MP

Maximum video resolution: 2592 x 1944

Maximum frame rate: 30fps

Image sensor: CMOS

Lens: Fixed, 1.4mm, M12 mount

Field of view: Diagonal

Wide dynamic range: Yes

Noise reduction: 2D Noise Reduction

Night vision: Infrared (IR), 3 IR LEDs, 65.62′

Indoor/outdoor: Outdoor

Impact protection: IK10

Ingress protection: IP66

Durability: Rugged

Mount type: Ceiling Mount

Connectivity: Wired, Network (RJ-45)

Remote management: Yes

Input voltage: 12V DC

Storage: SD Card

Operating temperature: -22°F to 140°F

Operating humidity: 95%

Diameter: 4.90″

Weight: 12.70oz

Compliance: NDAA Compliant, TAA Compliant, RoHS

Country of origin: TW

Package contents: Camera, waterproof rubber set, screw kit, drill template paster, download guide

Installation notes

Use the included drill template to mark mounting holes, and fit the waterproof rubber set where cables enter to help maintain the weather rating. Place the camera where the full fisheye view is unobstructed, and confirm the 12V DC supply and network connection before closing up the housing.
