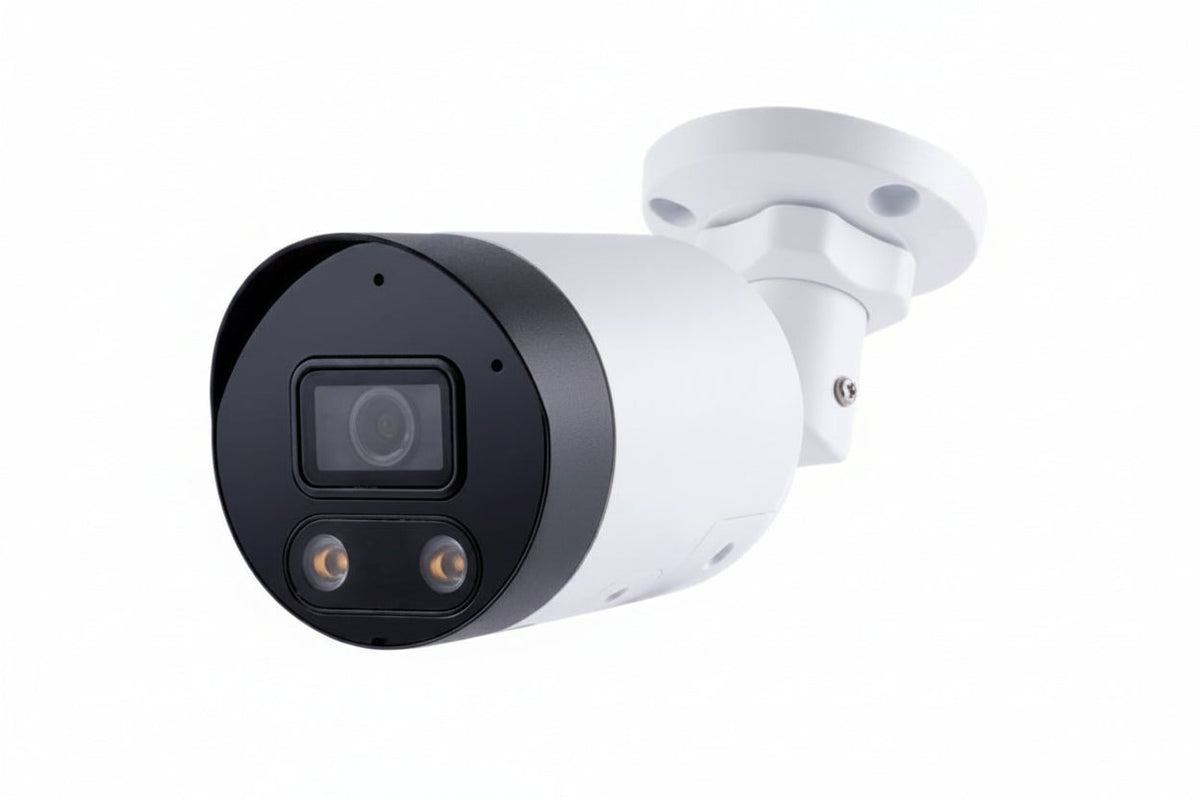

GeoVision GV-TBL8804 8MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera, 4mm Fixed Lens, White

The GeoVision GV-TBL8804 (125-TBL8804-0000) is an outdoor 8MP bullet IP camera with AI perimeter protection that classifies people and vehicles. It suits installers and businesses who need 4K-resolution coverage day and night, with a 4mm fixed lens and built-in infrared. Standouts include 0.01 lux minimum illumination, Wide Dynamic Range Pro, and an alarm sound plus warm LED light that fire on AI detection events.

Key features

• AI deep learning detects perimeter intrusions and classifies them as human or vehicle.
• A 1/2.7″ progressive scan super low lux CMOS sensor works down to 0.01 lux.
• Triple streams can be run from H.265, H.264 or MJPEG, with up to 20 fps at 3840x2160.
• Wide Dynamic Range Pro helps balance scenes with bright and dark areas.
• Intelligent IR reaches up to 30m (100′), with a removable IR-cut filter for day and night operation.
• An alarm sound and warm LED light trigger on AI detection events.

Specifications

Brand: GeoVision

Model: GV-TBL8804 (125-TBL8804-0000)

Product type: IP Camera

Form factor: Bullet

Color: White

Effective resolution: 8MP

Maximum video resolution: 3840 x 2160

Aspect ratio: 16:9

Image sensor: CMOS

Lens: 4mm fixed, M12 mount, maximum aperture f/2

Shutter speed: 1/100000 second to 1 second

Wide dynamic range: Yes

Night vision: Infrared (IR), 3 IR LEDs

Night vision distance: 98.43′

Features: Audio detection

Network: RJ-45, wired

Input voltage: 12V DC

Storage type: Memory card

Remote management: Yes

Mount type: Wall mount

Indoor/outdoor: Outdoor

Ingress protection rating: IP67

Durability: Waterproof

Operating temperature: -22°F to 140°F

Operating humidity: 95%

Dimensions: 7.4″ L x 2.8″ W x 2.8″ H

Weight: 14.46 oz

NDAA compliant: Yes

TAA compliant: No

Environmental certification: RoHS

Country of origin: TW

Package contents: Camera, waterproof rubber set, screw kit, drill template paster, download guide

Installation notes

Use the included drill template paster to mark mounting holes, and seat the waterproof rubber set properly where the cable enters to keep moisture out. Aim the camera so the IR range covers the target area, and avoid placing it directly in front of reflective surfaces that can wash out the night image.
