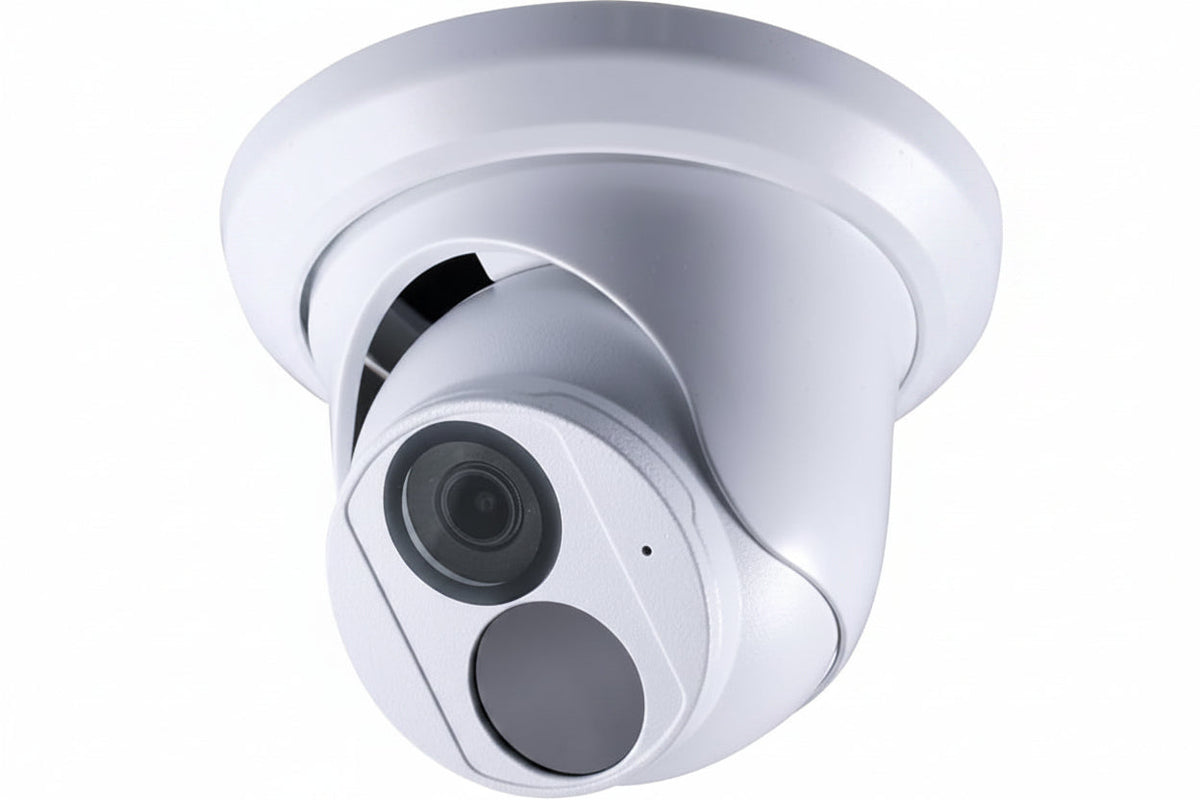

GeoVision 125-EBD880W-000 8MP AI Super Low Lux WDR Pro IR Eyeball IP Dome Camera, H.265

The GeoVision 125-EBD880W-000 is an 8MP outdoor IP dome camera with AI perimeter protection that classifies people and vehicles. It suits installers and businesses that need clear 4K video in low light on a ceiling-mounted camera. The 3-axis mechanism, Intelligent IR and WDR Pro make it easier to aim and to handle mixed lighting.

Key features

• AI deep learning powers perimeter protection and classifies detected objects as human or vehicle.
• A 1/2.7″ progressive scan low lux CMOS sensor has a minimum illumination of 0.01 lux.
• Wide Dynamic Range Pro helps keep detail visible in scenes with bright and dark areas.
• Triple streams can be set from H.265, H.264 or MJPEG, with up to 20 fps at 3840 x 2160.
• Intelligent IR reaches up to 30 m (100′), and day/night operation uses a removable IR-cut filter.
• The 3-axis mechanism (pan, tilt, rotate) lets you fine-tune the view after mounting.

Specifications

Brand: GeoVision

Model: 125-EBD8800-000

Product Model: GV-EBD8800

Type: IP Camera

Effective Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 20 fps

Image Sensor: CMOS

Lens: Fixed, 2.8mm, M12 mount, f/2 maximum aperture

Field of View: Diagonal

Wide Dynamic Range: Yes

Night Vision Distance: 98.43′

Longest Shutter Speed: 1 second

Feature: Audio Detection

Storage: Memory card

Connectivity: Wired, RJ-45 network

Input Voltage: 12V DC

Mount Type: Ceiling mount

Form Factor: Turret

Indoor/Outdoor: Outdoor

Ingress Protection: IP67

Durability: Waterproof

Operating Temperature: -22°F to 140°F

Operating Humidity: 95%

Color: White

Diameter: 5.00″

Weight: 15.87 oz

NDAA Compliant: Yes

TAA Compliant: No

Environmental Certification: RoHS

Country of Origin: TW

Package Contents: GU-EBD880W IR Eyeball Dome, waterproof rubber, screw kit, drill template paster, download guide

Installation notes

Use the drill template paster to mark the mounting holes, and seat the waterproof rubber properly where the cable enters to keep the outdoor installation sealed. Aim the camera with the 3-axis mechanism while viewing the live image, and avoid pointing it at nearby surfaces that could reflect the IR light back into the lens at night.
