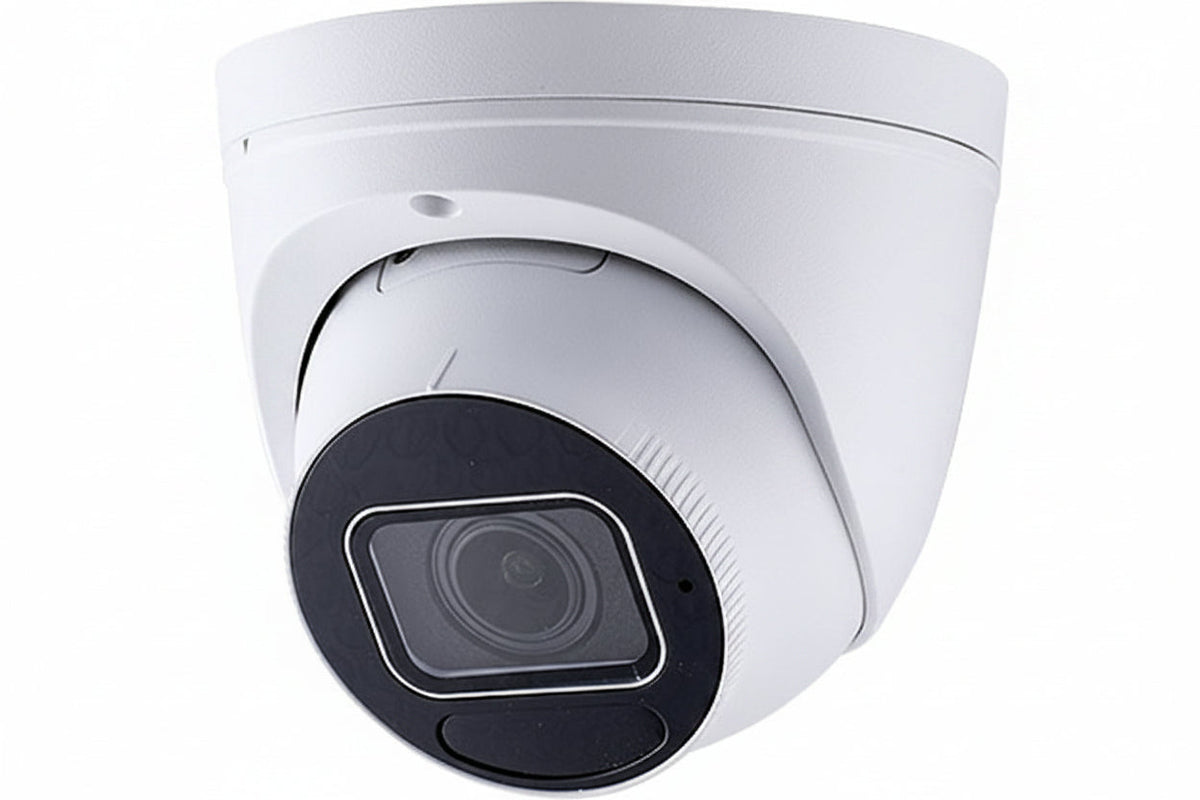

GeoVision GV-EBD4813 4MP Super Low Lux WDR Pro IR Turret IP Camera, 2.7-13.5mm Lens, White

The GeoVision GV-EBD4813 (model 125-EBD4813-000) is a 4MP outdoor IP turret camera for installers and businesses that need clear video day and night. It pairs a super low lux CMOS sensor with a motorized varifocal lens and built-in IR, so focus and zoom can be set remotely after mounting. AI perimeter protection that classifies humans and vehicles adds to its appeal for site monitoring.

Key features

• AI deep learning handles perimeter protection and tells humans from vehicles.
• The 1/3″ progressive scan super low lux CMOS sensor works down to 0.002 lux.
• It records up to 30fps at 2688x1520 and can run three streams in H.265, H.264 or MJPEG.
• Intelligent IR reaches up to 40m (130′), and a removable IR-cut filter supports Day and Night operation.
• The motorized varifocal lens allows remote focus and zoom adjustment.
• A 3-axis mechanism (pan, tilt and rotate) makes aiming easier.

Specifications

Brand: GeoVision

Model: 125-EBD4813-000

Product Model: GV-EBD4813

Resolution: 4MP

Maximum Video Resolution: 2688 x 1520

Maximum Frame Rate: 30fps

Image Sensor: CMOS

Minimum Illumination: 0.002 lux

Lens Type: Motorized Varifocal

Focal Length: 2.7-13.5mm

Optical Zoom: 5x

Maximum Aperture: f/1.2

Lens Mount: M12

Wide Dynamic Range: Yes

Night Vision: Infrared (IR), 40m (130′)

Number of IR LEDs: 2

Storage: SD Card

Network: RJ-45

Input Voltage: 12V DC

Form Factor: Turret

Mount Type: Bracket Mount

Indoor/Outdoor: Outdoor

Ingress Protection: IP67

Impact Protection: IK10

Operating Temperature: -22°F to 140°F

Operating Humidity: 95%

Diameter: 5.1″

Weight: 1.52 lb

Color: White

NDAA Compliant: Yes

TAA Compliant: No

Environmental Certification: RoHS

Country of Origin: Taiwan

Package Contents: Camera, waterproof rubber set, screw kit, drill template paster, download guide

Installation notes

Use the included drill template and screw kit to mark and fix the mount, and fit the waterproof rubber set where the cable passes through to keep the connection protected. Because the lens is motorized, you can finish focus and zoom remotely once the camera is powered and on the network, so aim the camera first using its pan, tilt and rotate adjustments.
