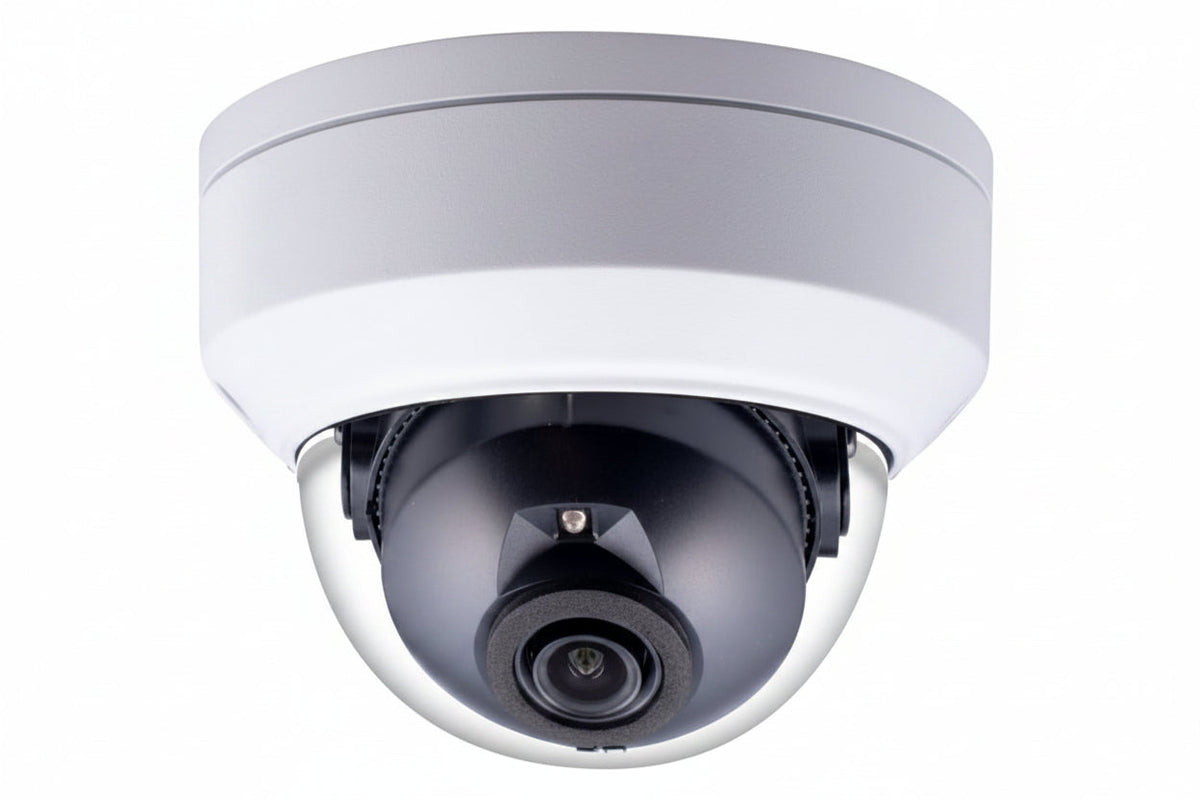

GeoVision GV-TDR4803-2F 4MP AI H.265 Super Low Lux WDR IR Mini Fixed Rugged IP Dome Camera, 2.8mm Lens, White

The GeoVision GV-TDR4803-2F (model 125-TDR4803-002) is a 4MP outdoor fixed mini dome IP camera in white, built for day and night surveillance. It pairs a super low lux CMOS sensor and wide dynamic range with an infrared LED, and it adds AI perimeter protection that classifies humans and vehicles. It suits installers and businesses that need a rugged, weather-resistant camera for exterior coverage.

Key features

• AI deep learning handles perimeter protection and classifies people and vehicles.
• A 1/3″ progressive scan super low lux CMOS sensor works down to 0.003 lux.
• Records up to 30 fps at 2688 x 1520, with triple streams in H.265, H.264 or MJPEG.
• Intelligent IR reaches up to 30 m (100′), and a removable IR-cut filter supports day and night operation.
• A 3-axis mechanism (pan, tilt and rotate) makes it easier to aim the view.
• IP67 ingress protection and an IK10 impact rating suit exposed outdoor locations.

Specifications

Brand: GeoVision

Model: GV-TDR4803-2F

Part number: 125-TDR4803-002

Product type: Network camera

Form factor: Mini dome

Color: White

Effective resolution: 4MP

Maximum video resolution: 2688 x 1520

Maximum frame rate: 30 fps

Aspect ratio: 16:9

Image sensor: CMOS

Minimum illumination: 0.003 lux

Lens: 2.8mm fixed, M12 mount, maximum aperture f/1.6

Wide dynamic range: Yes

Shutter speed: 1/100000 second to 1 second

Night vision: Infrared, 1 IR LED, 98.43′

Audio detection: Yes

Storage: Memory card

Network: RJ-45

Remote management: Yes

Input voltage: 12V DC

Mount type: Bracket mount

Indoor/outdoor: Outdoor

Ingress protection: IP67

Impact protection: IK10

Operating temperature: -22°F to 140°F

Operating humidity: 95%

Diameter: 4.30″

Weight: 14.82 oz

NDAA compliant: Yes

TAA compliant: No

Environmental certification: RoHS

Country of origin: Taiwan

In the box: Camera, waterproof rubber set, screw kit, drill template paster, Torx wrench, download guide

Installation notes

Use the included drill template and screw kit to mark and fix the mount, and seal the cable entry with the waterproof rubber set to keep the IP67 rating intact. Aim the camera with the 3-axis mechanism, and avoid pointing it at reflective surfaces close to the lens, which can bounce IR light back into the image at night.
