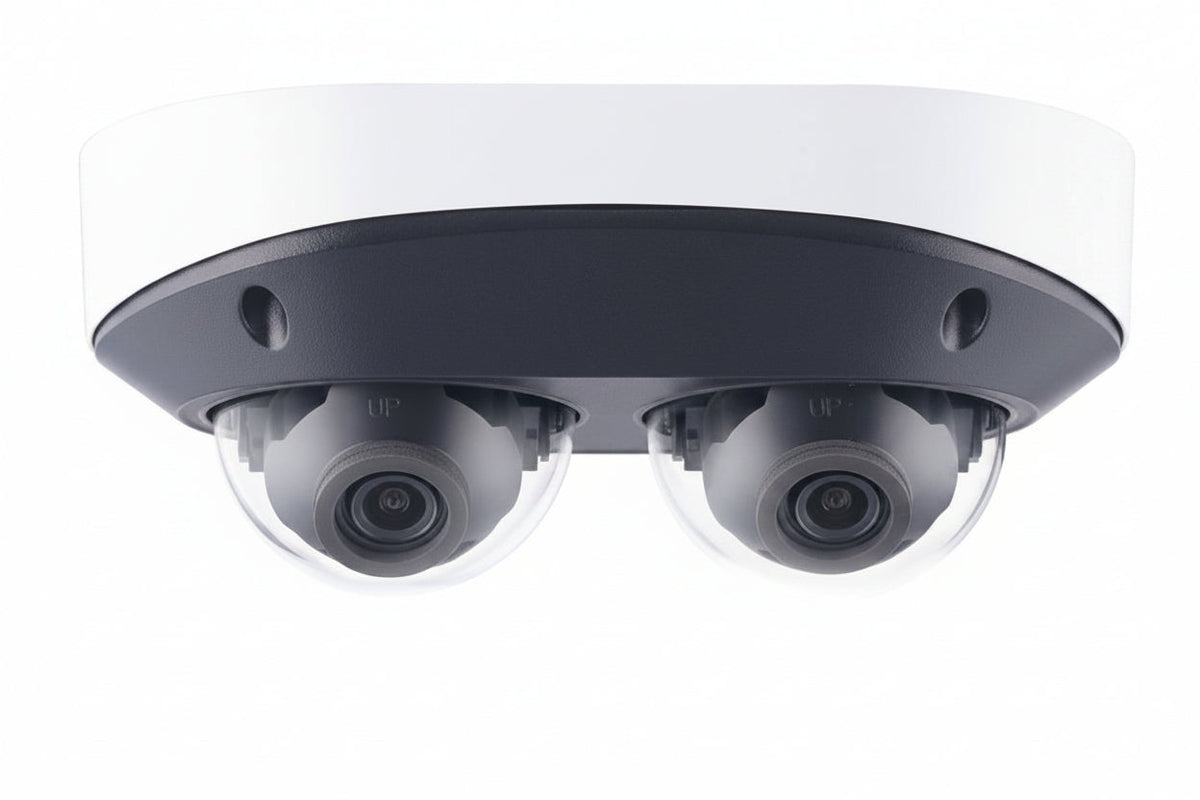

GeoVision GV-TMS8800 4MP 2 Dual Sensor Fixed IP Dome Camera, 2.8mm Lens

The GeoVision GV-TMS8800 (model 125-TMS8800-0010) is a fixed IP dome camera with a 2.8mm lens, built for indoor or outdoor video surveillance where low-light performance and a wide view matter. It suits installers and businesses that want AI-based human and vehicle classification at the camera, along with a 180° panoramic view. A metal casing rated IK10 and built-in infrared make it a solid fit for exposed or poorly lit areas.

Key features

• AI deep learning provides perimeter protection and classifies detected objects as human or vehicle.
• A 1/3″ progressive scan CMOS sensor works down to 0.002 lux minimum illumination.
• Intelligent IR reaches up to 30m (100') in total darkness, and the removable IR-cut filter supports Day and Night operation.
• Triple streams are available in H.265, H.264 or MJPEG, at up to 25 fps at 2688 x 1520.
• The 180° panoramic view covers a wide area with a single camera.
• The metal casing is vandal resistant, rated IK10.

Specifications

Brand: GeoVision

Model: 125-TMS8800-0010

Product type: IP Camera

Lens type: Fixed

Focal length: 2.8mm

Effective camera resolution: 8MP

Sensor: 1/3″ progressive scan CMOS

Minimum illumination: 0.002 lux

IR distance: Up to 30m (100')

Vandal resistance: IK10 (metal casing)

Installation notes

Choose a mounting spot that gives the lens a clear, unobstructed view and keeps nearby walls or fixtures out of the IR path, since they can reflect light back into the image. Use the camera's live stream during commissioning to confirm the field of view and tune the AI perimeter zones for the scene.
