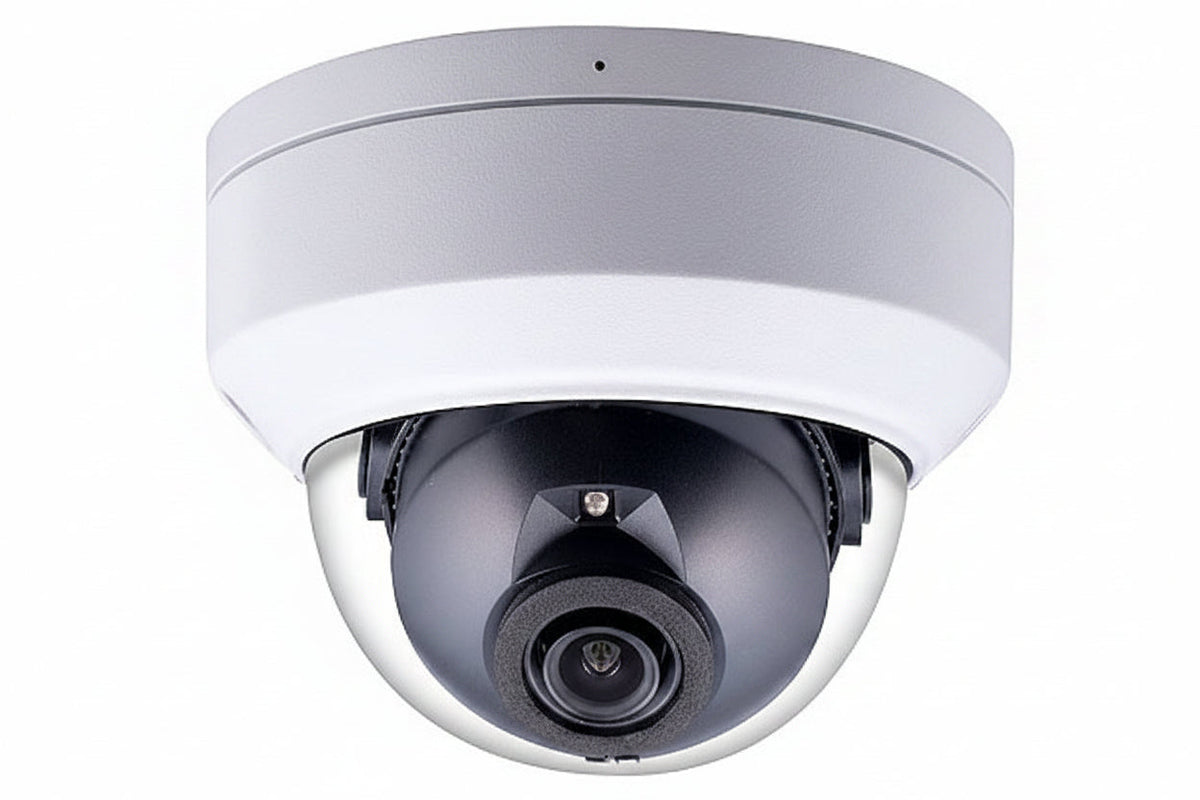

GeoVision GV-TDR8805 8MP H.265 Super Low Lux WDR Pro IR Mini Rugged Dome IP Camera, 2.8mm Fixed Lens, White

The GeoVision GV-TDR8805 (model 125-TDR885W-2F10) is an 8MP outdoor mini rugged dome IP camera with a 2.8mm fixed lens, built for day and night surveillance. It suits installers and businesses that need a compact, vandal-resistant camera with built-in infrared and AI-based perimeter protection. Its IK10 metal casing, IP67 rating and NDAA compliance make it a practical choice for exposed locations.

Key features

• AI deep learning provides perimeter protection and classifies detected objects as human or vehicle.
• Records up to 20 fps at 3840 x 2160, with triple streams from H.265, H.264 or MJPEG.
• Intelligent IR reaches up to 30m (100'), and a removable IR-cut filter supports day and night operation.
• The metal casing is rated IK10 for vandal resistance, and IP67 protection suits outdoor use.
• A 3-axis mechanism (pan, tilt, rotate) lets you aim the camera precisely.

Specifications

Brand: GeoVision

Model: 125-TDR885W-2F10

Product Model: GV-TDR8805

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 2.8mm

Lens Mount Type: M12

Maximum Aperture: f/1.6

Wide Dynamic Range: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 98.43'

Form Factor: Dome

Color: White

Indoor/Outdoor: Outdoor

Impact Protection Rating: IK10

Ingress Protection Rating: IP67

Storage Type: Memory Card

Network (RJ-45): Yes

Input Voltage: 12V DC

Operating Temperature: -22°F to 140°F

Operating Humidity: 95%

NDAA Compliant: Yes

TAA Compliant: No

Environmental Certification: RoHS

Diameter: 4.30″

Weight: 15.17oz

Country of Origin: CN

Package Contents: camera, waterproof rubber set, screw kit, drill template paster, Torx wrench, download guide

Installation notes

Use the included drill template paster to mark mounting holes, and fit the waterproof rubber set where the cable enters to protect the outdoor connection. Confirm a stable 12V DC supply and a network cable run to the RJ-45 port, then aim the camera with the 3-axis adjustment before locking it down.
