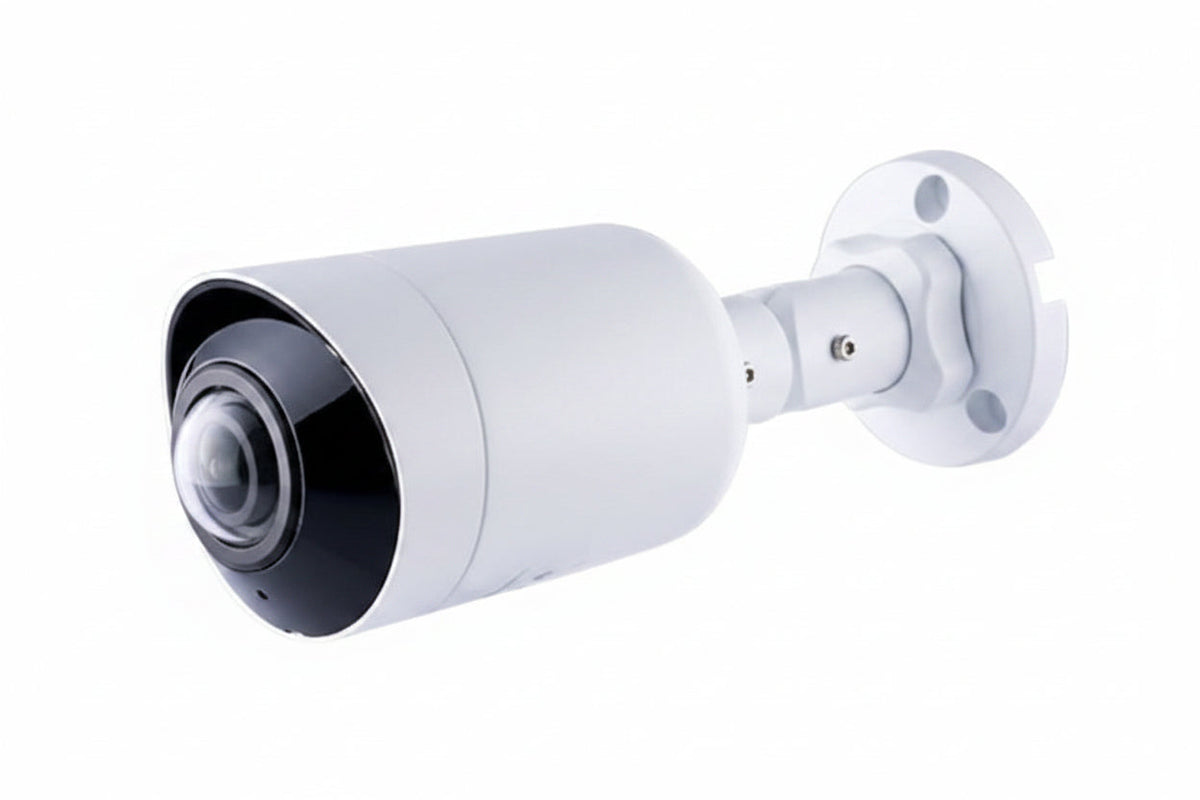

GeoVision GV-TBLP5800 5MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera, 1.68mm Lens, White

The GeoVision GV-TBLP5800 (model 125-TBLP580-0010) is a white, fixed-lens IP bullet camera with a 5MP CMOS sensor and a 1.68mm lens. It handles low-light and night-time monitoring with a rated minimum illumination of 0.01 lux and built-in infrared, and it adds AI perimeter protection that classifies humans and vehicles. It suits installers and businesses that need a wide-angle camera for outdoor perimeters, entrances and similar coverage.

Key features

• AI deep learning provides perimeter protection and classifies humans and vehicles.
• The 1/2.7″ progressive scan CMOS sensor records up to 30 fps at 2880 x 1620.
• Intelligent IR reaches up to 20m (65') for night viewing.
• Triple streams are available in H.265, H.264 and MJPEG.
• A removable IR-cut filter supports Day and Night operation.
• The 180° panoramic view and IP67 ingress protection suit wide outdoor coverage.

Specifications

Model: 125-TBLP580-0010

Brand: GeoVision

Product type: IP Camera

Color: White

Effective resolution: 5MP

Image sensor type: CMOS

Lens type: Fixed

Lens included: Yes

Focal length: 1.68mm

Field of view: Horizontal

Minimum illumination: 0.01lux

Input voltage: 12V DC

Durability: Dust Resistant

Storage: Supports microSD/SDHC/SDXC Cards

Package contents: Torx Rubber Set

Installation notes

Because the lens is fixed, aim and position the camera carefully before final mounting, since the view cannot be adjusted by changing the lens. Confirm a 12V DC supply is in place, and seal cable entries and connections so the weather protection of the housing is not compromised.
