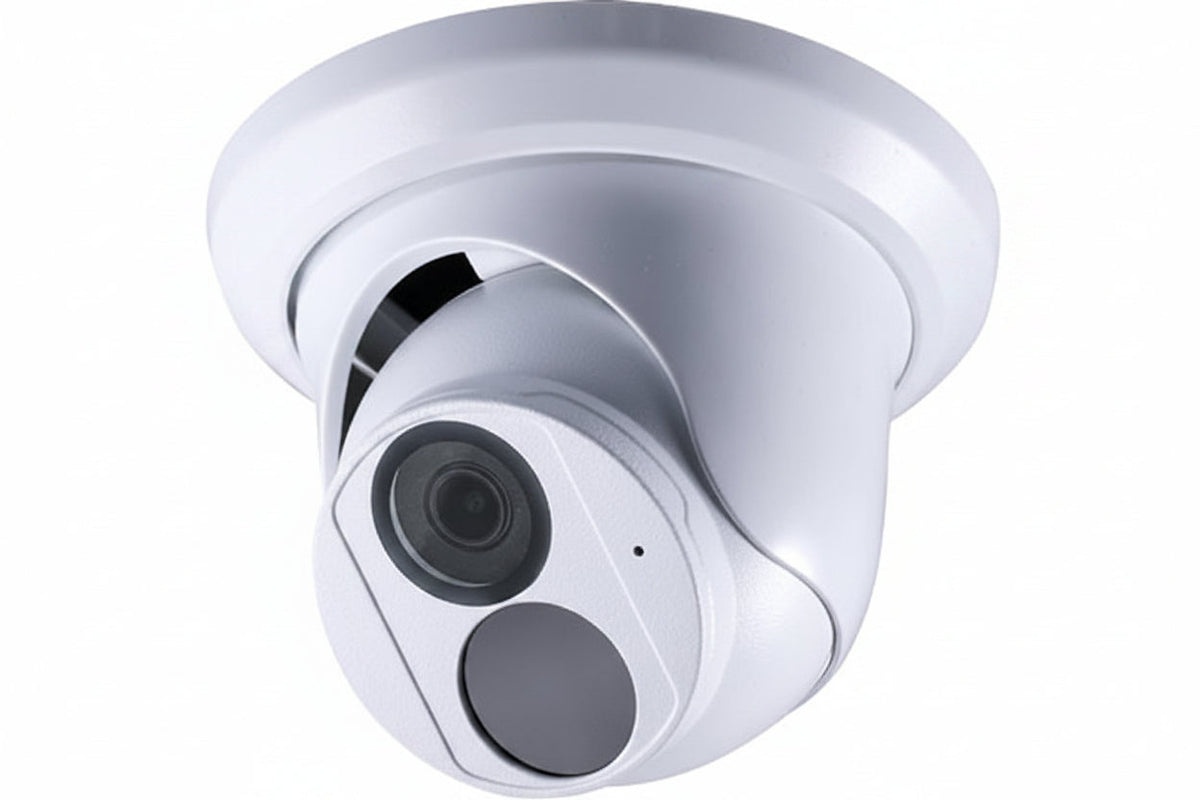

GeoVision GV-EBD8800 AI 8MP H.265 Super Low Lux WDR Pro IR Turret IP Camera, 2.8mm Lens, White

The GeoVision GV-EBD8800 is an 8MP outdoor turret IP camera that uses AI to detect and classify people and vehicles along a perimeter. It suits installers and businesses that need clear 4K-class video around entrances, yards and property lines, day or night. Its low-light sensor, WDR Pro and built-in infrared stand out.

Key features

• AI deep learning provides perimeter protection and classifies people and vehicles.
• A 1/2.7″ progressive scan low lux CMOS sensor works down to 0.01 lux minimum illumination.
• It records up to 20 fps at 3840 x 2160 and offers triple streams in H.265, H.264 or MJPEG.
• WDR Pro helps keep detail visible in scenes with strong light and dark areas.
• Intelligent IR reaches up to 30m (100′), and day and night operation uses a removable IR-cut filter.
• A 3-axis mechanism (pan, tilt, rotate) makes it easier to aim the camera.

Specifications

Brand: GeoVision

Model: GV-EBD8800

Part number: 125-EBD8800-000

Product type: IP Camera

Form factor: Turret

Color: White

Effective resolution: 8MP

Maximum video resolution: 3840 x 2160

Maximum frame rate: 20fps

Image sensor: CMOS

Lens: 2.8mm fixed, M12 mount, f/2 maximum aperture, lens included

Field of view: Diagonal

Wide dynamic range: Yes

Longest shutter speed: 1 Second

Number of IR LEDs: 1

IR distance: Up to 30m (100′)

Features: Audio Detection

Connectivity: Wired, Network (RJ-45)

Input voltage: 12V DC

Storage type: Memory Card

Mount type: Ceiling Mount

Indoor/Outdoor: Outdoor

Ingress protection rating: IP67

Durability: Waterproof

Operating temperature: -22°F to 140°F

Operating humidity: 95%

Diameter: 5.00″

Weight: 15.87oz

NDAA compliant: Yes

TAA compliant: No

Environmental certification: RoHS

Country of origin: TW

Package contents: GU-EBD880W IR Eyeball Dome, waterproof rubber, screw kit, drill template paster, download guide

Installation notes

Use the drill template to mark the mounting holes, and seat the waterproof rubber where the cable enters so the connection stays sealed outdoors. Use the 3-axis adjustment to aim the camera before final tightening, and avoid pointing it at nearby walls or surfaces that reflect IR light back into the lens.
