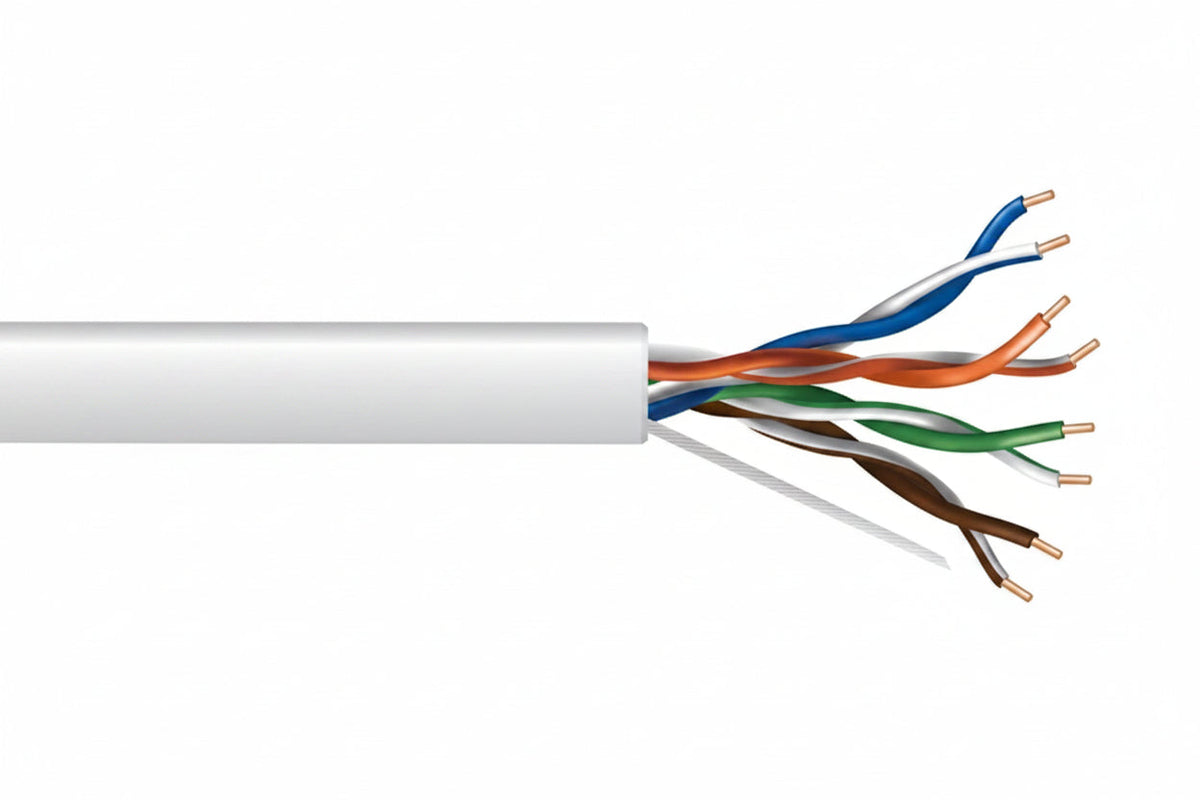

Genesis 63612101 23/4-Pair Cat 6 Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, White

The Genesis 63612101 is a 1000' (304.8 m) reel-in-a-box of white Cat 6 unshielded (U/UTP) networking cable, built from 23 AWG solid bare copper conductors in 4 pairs. It's a plenum-rated (CMP, FT6) cable for indoor data runs, suited to installers and businesses pulling structured cabling through air-handling spaces. FEP insulation, a rip cord for jacket removal and countdown length markings make it practical to pull and to track on larger jobs.

Key features

• Bare copper conductors give good signal transmission and low voltage drop.
• FEP insulation is paired with a PVC jacket.
• A built-in rip cord makes jacket stripping and removal quicker.
• Countdown length markings let you see how much cable you've used and how much is left.
• Rated for 300V and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 63612101

Product Type: Ethernet Cables

Category: Cat 6

Fire Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m)

Packaging: Reel-in-a-Box

Color: White

Indoor/Outdoor: Indoor

Shielding: No (U/UTP)

Armored: No

Number of Pairs: 4

Number of Conductors: 8

American Wire Gauge: 23 AWG

Conductor Material: Bare Copper

Solid or Stranded: Solid

Insulation Material: FEP

Impedance: 100 Ohm

Voltage Rating: 300V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: No

Country of Origin: VN

Weight: 31.80 lb

Installation notes

This is an indoor cable, so keep it out of outdoor and direct-burial runs. Pull it from the reel-in-a-box without kinks or tight bends, and use the countdown markings to cut each run to length with a little slack at both ends for termination.
