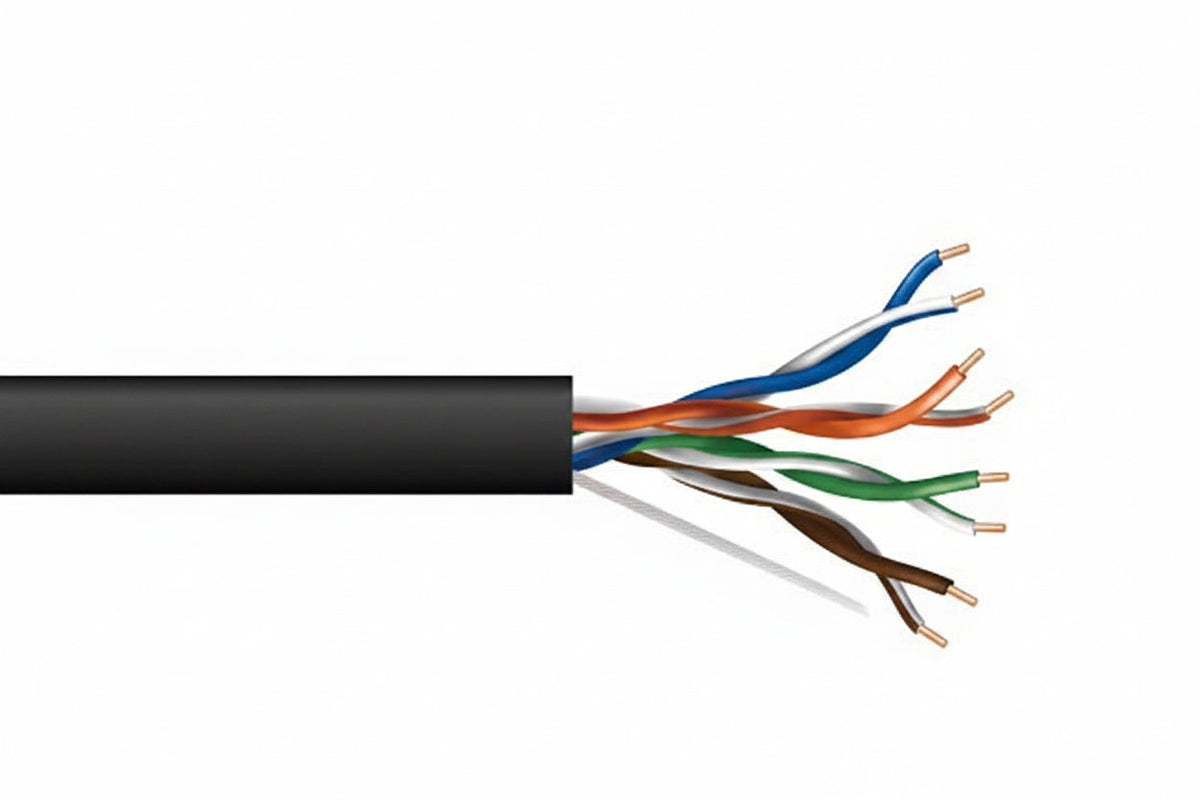

Genesis 63611108 23/4-Pair Cat 6 Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Black

The Genesis 63611108 is a 1000' (304.8 m) pull box of Cat 6 unshielded (U/UTP) networking cable with a plenum CMP, FT6 rating and a black jacket. It is a 23 AWG, 4-pair solid bare copper cable for indoor network runs, suited to installers pulling long lengths of Ethernet through spaces that call for plenum-rated cable. Countdown length markings and a rip cord make it easier to track and strip as you work.

Key features

• Bare copper conductors give solid signal transmission with low voltage drop.
• FEP insulation surrounds the conductors, under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 63611108

Category: Cat 6 Unshielded (U/UTP) Networking Cable

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) Pull Box

Color: Black

Indoor/Outdoor: Indoor

Shielding: No

Armored: No

Number of Pairs: 4

Number of Conductors: 8

Conductor Material: Bare Copper

Solid or Stranded: Solid

American Wire Gauge: 23AWG

Insulation Material: FEP

Impedance: 100Ohm

Environmental Certification: RoHS

TAA Compliant: No

Country of Origin: VN

Installation notes

Keep the cable in its pull box and draw from the center to reduce kinks and twists while pulling. Avoid sharp bends and excess pulling tension, and use the length markings to plan each run and cut to length.
