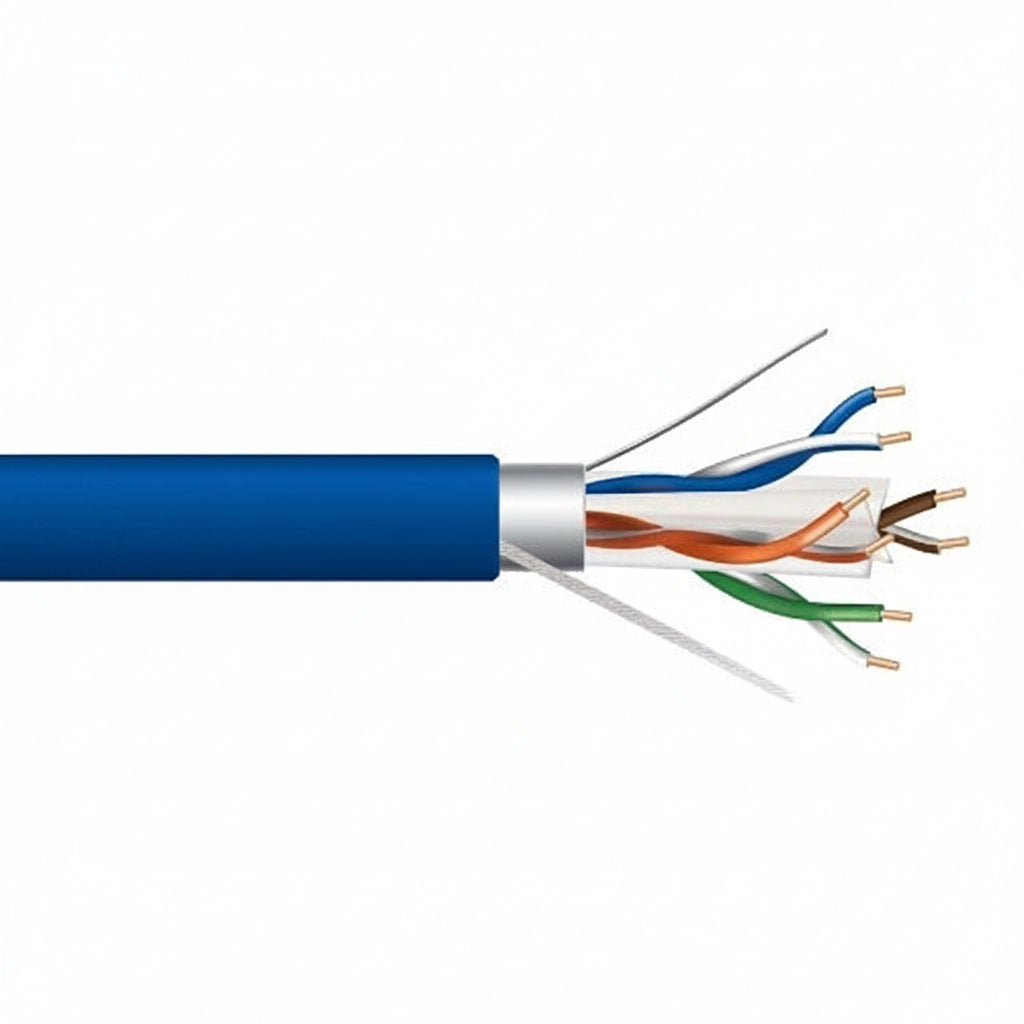

Genesis 53921006 23/4-Pair Cat 6 Plus Shielded (F/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Blue

The Genesis 53921006 is a 1,000' (304.8 m) reel of blue Cat 6 Plus shielded (F/UTP) networking cable in plenum-rated CMP/FT6 construction. It carries data over 23 AWG solid bare copper conductors in four pairs, and suits installers pulling shielded runs through indoor plenum spaces. The foil shield, FEP insulation and countdown length markings make it practical for larger jobs.

Key features

• Bare copper conductors give good signal transmission with low voltage drop.
• FEP insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord helps you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 53921006

Product type: Ethernet Cables

Category: Cat 6 Plus, 23/4-pair, shielded (F/UTP)

Rating: Plenum, CMP, FT6

Packaging: 1000' (304.8 m) reel

Color: Blue

Conductor material: Bare Copper

Conductor type: Solid

American Wire Gauge: 23AWG

Number of pairs: 4

Number of conductors: 8

Insulation material: FEP

Shielding: Yes

Impedance: 100Ohm

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Because this is a shielded cable, terminate it with shielded connectors and connect the foil shield properly so it does its job. Keep runs inside the indoor environment the cable is rated for, and use the countdown markings to cut each run to length without wasting cable.
