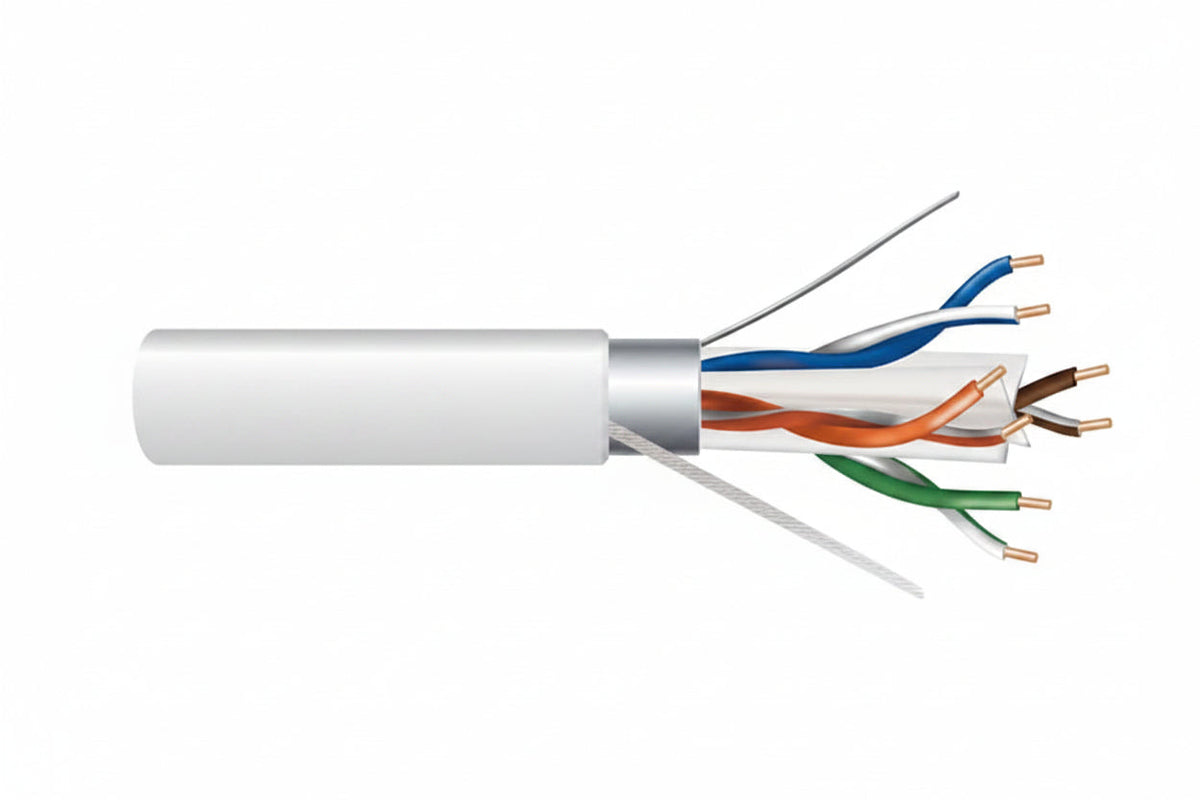

Genesis 53921001 23/4-Pair Cat 6 Plus Shielded (F/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, White

The Genesis 53921001 is a 1000' (304.8 m) reel of white Cat 6 Plus shielded (F/UTP) networking cable in a plenum-rated CMP, FT6 jacket. It's built for indoor Ethernet runs where a foil-shielded, solid-copper 23 AWG cable is needed, which suits installers pulling long runs for business or home networks. Bare copper conductors, FEP insulation and countdown length markings are what set it apart.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• FEP insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings help you track how much cable you've used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 53921001

Product name: Cat.6 FTP Network Cable

Category: Cat 6 Plus shielded (F/UTP), plenum CMP, FT6

Length/packaging: 1000' (304.8 m) reel

Color: White

Conductor gauge: 23 AWG

Conductor type: Solid

Conductor material: Bare copper

Insulation: FEP

Pairs: 4

Conductors: 8

Shielding: Yes

Impedance: 100 Ohm

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 52.30 lb

Installation notes

Terminate the foil shield properly at both ends using shielded connectors and jacks, and ground it according to your system's design so the shielding can do its job. Pull the cable without kinking it or exceeding its bend limits, and use the countdown markings to plan cut lengths before you terminate.
