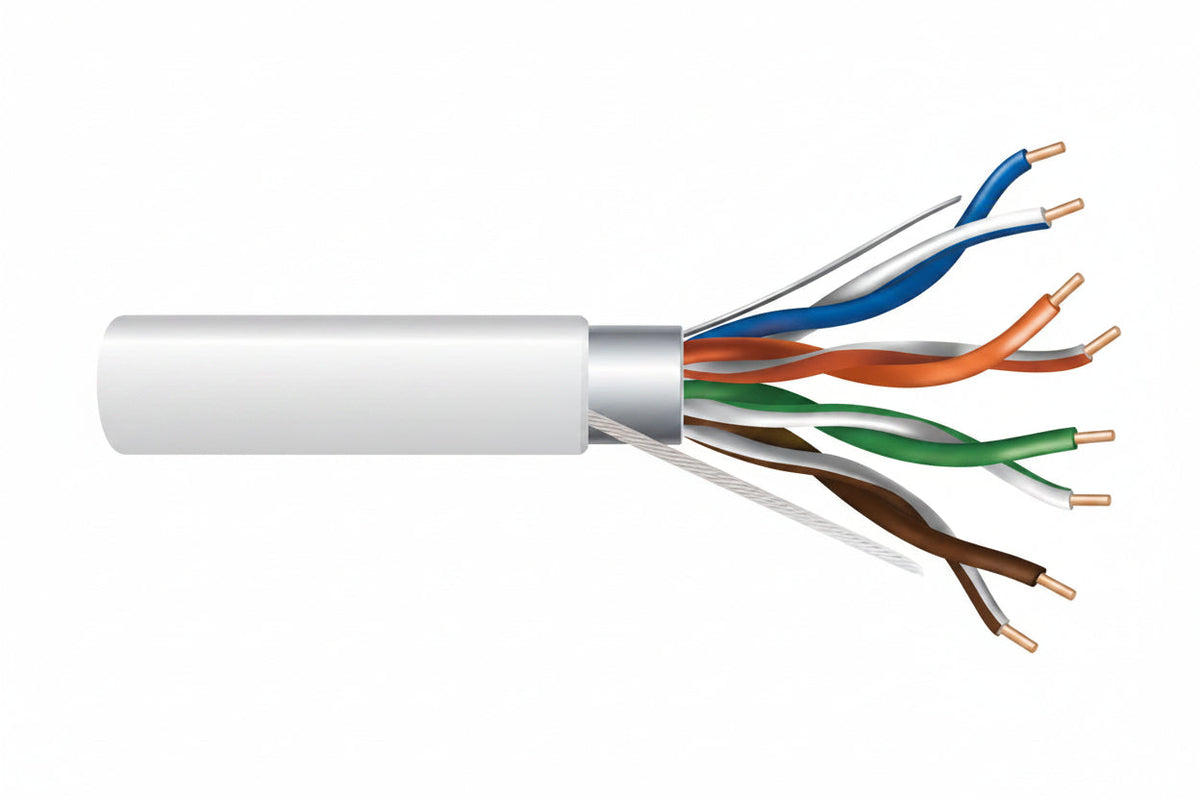

Genesis 51781001 24/4-Pair Cat 5e Shielded (F/UTP) Networking Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, White

The Genesis 51781001 is a 1000' (304.8 m) reel of white Cat 5e shielded (F/UTP) networking cable with 24 AWG solid bare copper conductors in 4 pairs. It is a riser-rated (CMR, FT4) cable for indoor Ethernet and general communication runs, suited to installers who need a shielded cable for backbone or in-wall pulls. The countdown length markings and rip cord make long pulls and terminations easier to manage.

Key features

• Solid bare copper conductors carry the signal with low voltage drop.
• A foil shield covers all conductors.
• A rip cord lets you strip the PVC jacket cleanly.
• Countdown length markings show how much cable you have used and how much remains.
• The jacket is sunlight resistant (UV) rated.
• The cable is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 51781001

Product type: Networking Cable (Ethernet Cables)

Category: Cat 5e

Shielding: Yes, F/UTP (foil shield over all conductors)

Rating: Riser, CMR, FT4

Pairs: 4

Number of conductors: 8

Conductor material: Bare Copper

Conductor type: Solid

Wire gauge: 24 AWG

Insulation: PE

Jacket: PVC

Impedance: 100 Ohm

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length and packaging: 1000' (304.8 m) reel

Color: White

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 30.60 lb

Installation notes

Terminate the foil shield properly and use shielded connectors and jacks so the shield stays continuous from end to end. Avoid sharp bends and excessive pulling tension, and check the countdown markings before cutting so you leave enough slack at each termination.
