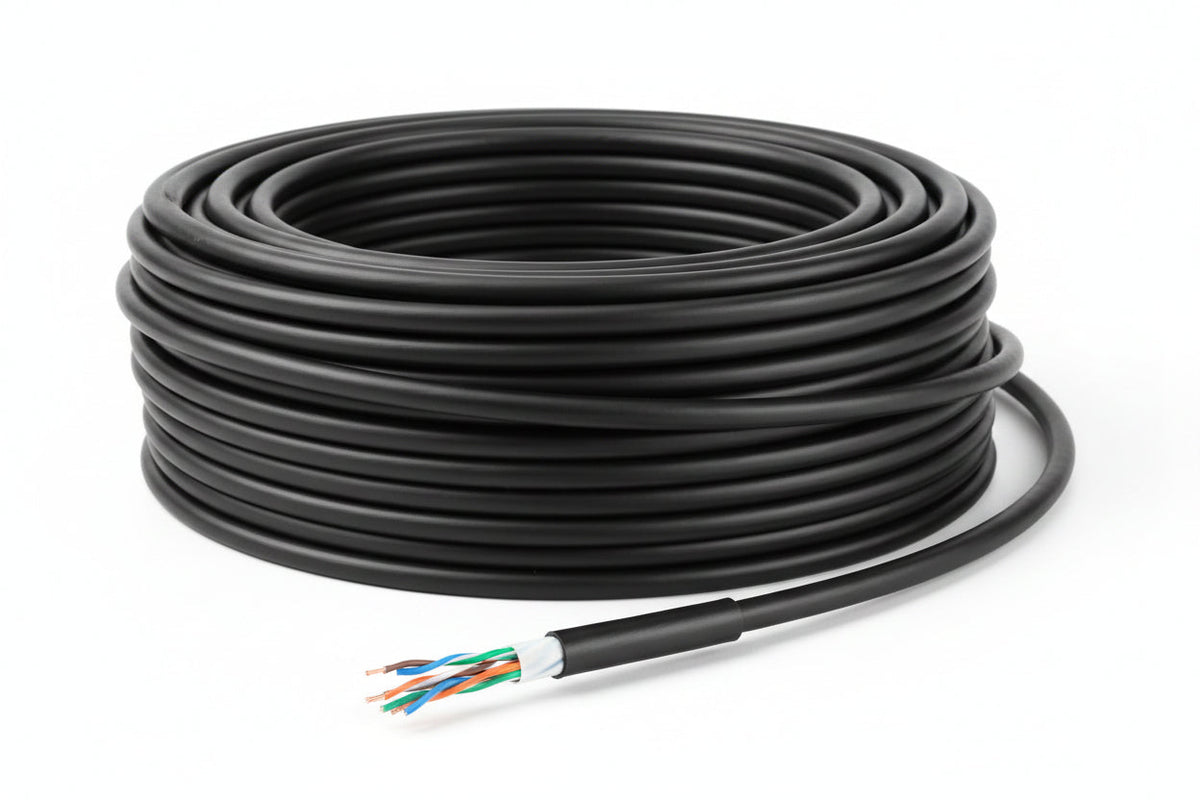

Genesis 51105008 24/4-Pair Cat 6 Unshielded (U/UTP) Water-Blocked Networking Cable, Direct Burial, 500' (152.4 m) Reel, Black

The Genesis 51105008 is a 500' (152.4 m) reel of black Cat 6 unshielded (U/UTP) networking cable with 24 AWG solid bare copper conductors in 4 pairs. It is water-blocked and rated for direct burial, so it suits installers running outdoor network links to cameras, access points and remote buildings. The countdown length markings and UV-resistant jacket make long outdoor pulls easier to track and built to handle sun exposure.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• Polyolefin insulation surrounds the conductors, and a polypropylene jacket covers the cable.
• Countdown length markings let you track how much cable you have used and how much remains.
• The cable is sunlight resistant (UV) rated for outdoor exposure.
• It is rated for 300V and for temperatures from -20 °C to 60 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 51105008

Product name: Cat.6 UTP Network Cable

Category: Cat 6, 24/4-pair, unshielded (U/UTP), water-blocked, direct burial

Length and packaging: 500' (152.4 m) reel

Color: Black

Indoor/Outdoor: Outdoor

Shielding: No

Armored: No

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Solid or stranded: Solid

American wire gauge: 24 AWG

Insulation material: Polyolefin (PO)

Jacket material: Polypropylene

Impedance: 100 Ohm

Voltage rating: 300V

Temperature rating: -20 °C to 60 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: TW

Weight: 20.60 lb

Installation notes

Plan the route before pulling and avoid sharp bends, kinks and excessive pulling tension so the cable and its water-blocking stay intact. Use the countdown markings to cut runs to length, and seal and terminate the ends properly so moisture does not enter at the connection points.
