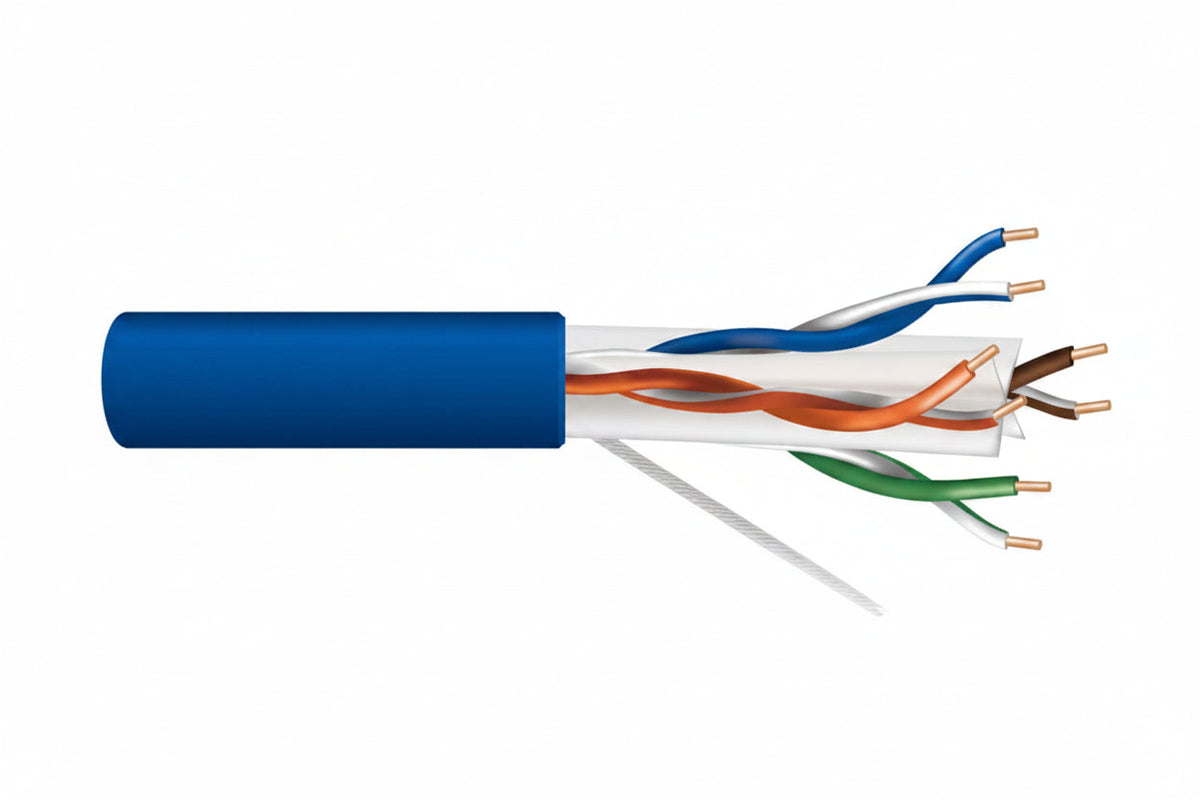

Genesis 51026106 23/4-Pair Cat 6 Plus Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel-in-a-Box, Blue

The Genesis 51026106 is a 500-foot reel-in-a-box of 4-pair Category 6 Plus U/UTP networking cable, blue, in a plenum-rated CMP/FT6 jacket. It suits installers running Ethernet through indoor spaces that call for plenum cable, such as air-handling areas. Solid bare copper 23 AWG conductors and FEP insulation are the main draws, along with countdown length markings for tracking what is left on the reel.

Key features

• Bare copper conductors give strong signal transmission with low voltage drop.
• FEP insulation covers the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track cable used and cable remaining.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 51026106

Product name: 4-Pair Category 6 Plus U/UTP, Plenum/FT6

Product type: Ethernet Cables

Rating: Plenum, CMP, FT6

Length: 500′ (152.4 m)

Packaging: Reel-in-a-Box

Color: Blue

Indoor/Outdoor: Indoor

Shielding: No (unshielded, U/UTP)

Armored: No

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare Copper

Solid or stranded: Solid

American Wire Gauge: 23 AWG

Insulation material: FEP

Impedance: 100 Ohm

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Pull the cable gently and keep bends wide so the pair geometry is not disturbed, and use the rip cord to open the jacket instead of cutting into the conductors. Test each run after termination, and use the countdown markings to cut to length with minimal waste.
