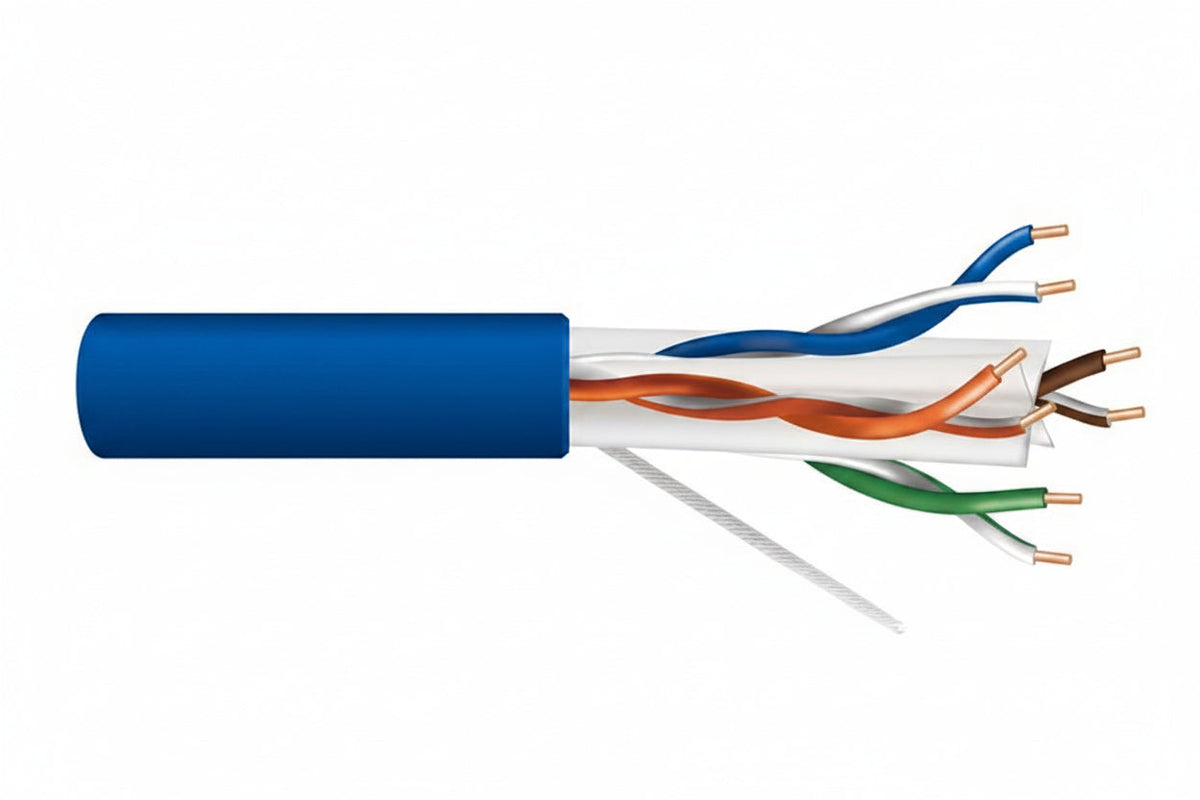

Genesis 51022106 23/4-Pair Cat 6 Plus Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Blue

The Genesis 51022106 is a 1000' (304.8 m) reel-in-a-box of blue Category 6 Plus unshielded (U/UTP) networking cable, built for voice and data runs inside buildings. It is a 23 AWG, 4-pair solid bare copper cable with a plenum (CMP, FT6) jacket, so it suits installers pulling structured cabling through air-handling spaces. FEP insulation, a rip cord and countdown length markings make it easier to work with on larger jobs.

Key features

• Bare copper conductors carry signals well and keep voltage drop low.
• FEP insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 51022106

Product name: Voice & Data Category 6 Plus, Plenum Rated

Category: Cat 6 Plus

Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m)

Packaging: Reel-in-a-Box

Color: Blue

Shielding: Unshielded (U/UTP)

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Solid or stranded: Solid

American Wire Gauge: 23 AWG

Insulation material: FEP

Impedance: 100 Ohm

Indoor/Outdoor: Indoor

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Pull the cable from the reel-in-a-box to avoid kinks and twists, and keep pulling tension and bend radius within the manufacturer's limits to protect the pair geometry. Use the countdown markings to plan each run, and keep this indoor-only cable away from outdoor exposure.
