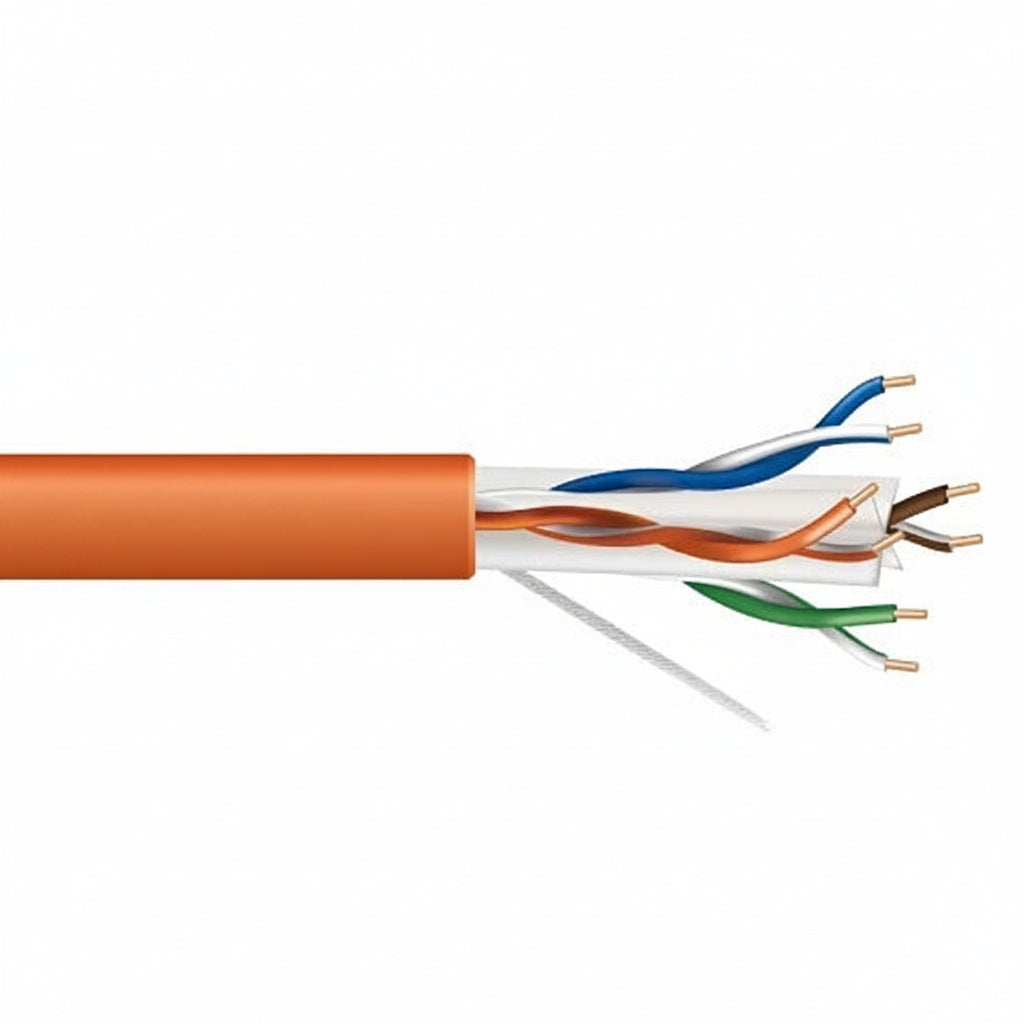

Genesis 51022103 23/4-Pair Cat 6 Plus Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange

The Genesis 51022103 is a 1000' reel-in-a-box of 23 AWG, 4-pair Category 6 Plus unshielded (U/UTP) cable in orange, rated plenum (CMP, FT6). It is built for indoor voice and data wiring where a plenum-rated jacket is required, and it suits installers pulling long runs. Solid bare copper conductors and FEP insulation, along with countdown length markings, make it practical for large jobs.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• FEP insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 51022103

Category: Cat 6 Plus

Length: 1000' (304.8 m)

Packaging: Reel-in-a-Box

Fire rating: Plenum, CMP, FT6

Color: Orange

Pairs: 4

Number of conductors: 8

Wire gauge: 23 AWG

Conductor type: Solid

Conductor material: Bare copper

Insulation: FEP

Shielding: No (unshielded, U/UTP)

Armored: No

Impedance: 100 Ohm

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environment: Indoor

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 28.20 lb

Installation notes

Pull the cable from the box without kinking it, and avoid tight bends or excess pulling tension to protect the pair geometry. Test each run after termination to confirm performance before closing up ceilings or walls.
