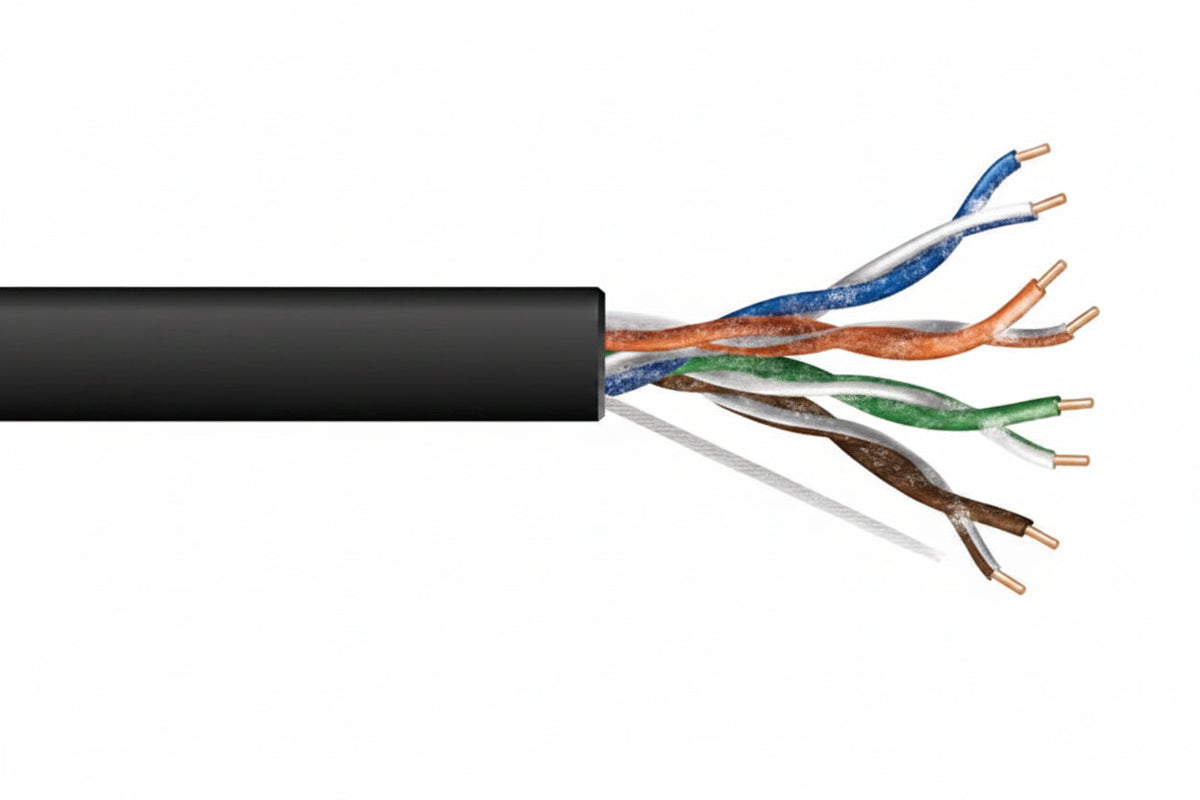

Genesis 50971008 24/4-Pair Cat 5e Unshielded (U/UTP) Water-Blocked Networking Cable, Wet Location, 1000' (304.8 m) Reel, Black

The Genesis 50971008 is a 1000' (304.8 m) reel of black 24/4-pair Cat 5e unshielded (U/UTP) networking cable, water-blocked and rated for wet locations. It is built for outdoor voice and data runs where the cable will be exposed to moisture and sunlight. Installers who need a sunlight-resistant Category 5e cable on a single reel will find it a practical fit.

Key features

• Bare copper conductors give good signal transmission and low voltage drop.
• Polypropylene insulation and a polyethylene jacket make up the construction.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• It is sunlight (UV) resistant and rated for -40 °C to 80 °C.
• It is REACH/RoHS compliant and rated for 300V.

Specifications

Brand: Genesis

Model: 50971008

Category: Cat 5e

Pairs: 4

Conductors: 8

Conductor type: Solid bare copper

Wire gauge: 24 AWG

Shielding: No (U/UTP)

Armored: No

Insulation: Polypropylene (PP)

Jacket: Polyethylene

Impedance: 100 Ohm

Voltage rating: 300V

Temperature rating: -40 °C to 80 °C

Location: Outdoor, wet location

Color: Black

Packaging: 1000' (304.8 m) reel

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 20.60 lb

Installation notes

Use the countdown markings to plan each run and cut to length without wasting cable. Use the rip cord to open the jacket cleanly, and seal or terminate the cable ends properly so the water-blocking is not defeated at the connection point.
