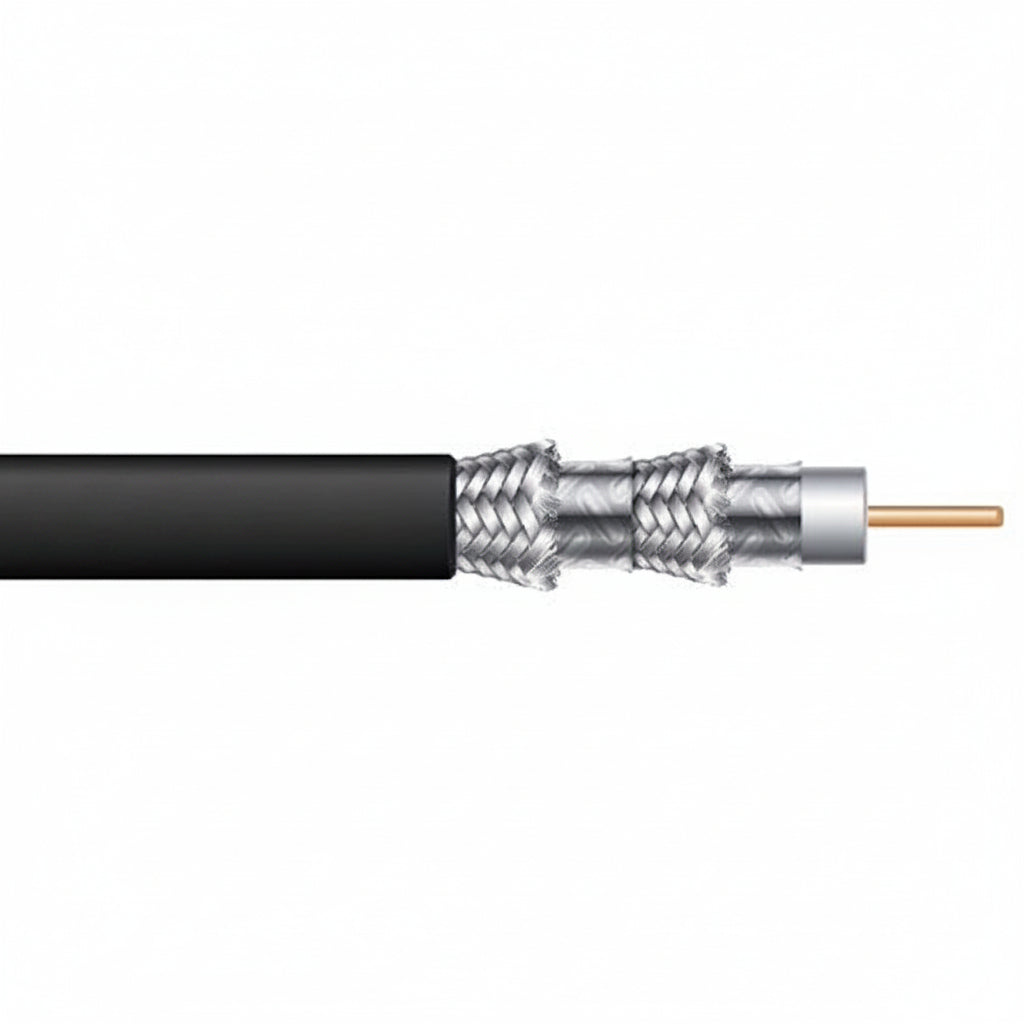

Genesis 50075508 RG6 CCS 75 Ohm Coaxial with Quad-Shield Cable, General Purpose, CATV, 500' (152.4 m) Pull Box, Black

The Genesis 50075508 is a 500-foot (152.4 m) pull box of black RG6 75 Ohm coaxial cable with a solid Copper Clad Steel center conductor and quad-shield construction. It is a general-purpose CATV cable for installers running broadband and digital video, and it carries a rating for transmission up to 3 GHz. Countdown length markings on the jacket make it easy to track how much cable has been used and how much is left.

Key features

• The solid Copper Clad Steel center conductor supports transmission up to 3 GHz.
• Quad-shielding layers aluminum foil, aluminum braid, aluminum foil and braid.
• Polyethylene insulation and a PVC jacket make up the cable construction.
• Countdown length markings let you see usage and remaining cable at a glance.
• The cable is UV sunlight resistant, rated for 300 Volts, and rated for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50075508

Type: RG6 coaxial cable, CCS, general purpose, CATV

Length and packaging: 500' (152.4 m) pull box

Color: Black

Impedance: 75 Ohm

Conductor material: Copper-Clad Steel (CCS)

Conductor type: Solid

Number of conductors: 1

American Wire Gauge: 18AWG

Insulation material: PE

Shielding: Yes, quad-shield

Jacket: PVC

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: CN

Weight: 17.70 lb

Installation notes

Pull the cable from the box without kinks or tight bends, and keep bend radius gentle to protect the shielding and dielectric. Use connectors matched to RG6 quad-shield cable and prepare each end carefully so the braid and foil do not short to the center conductor.
