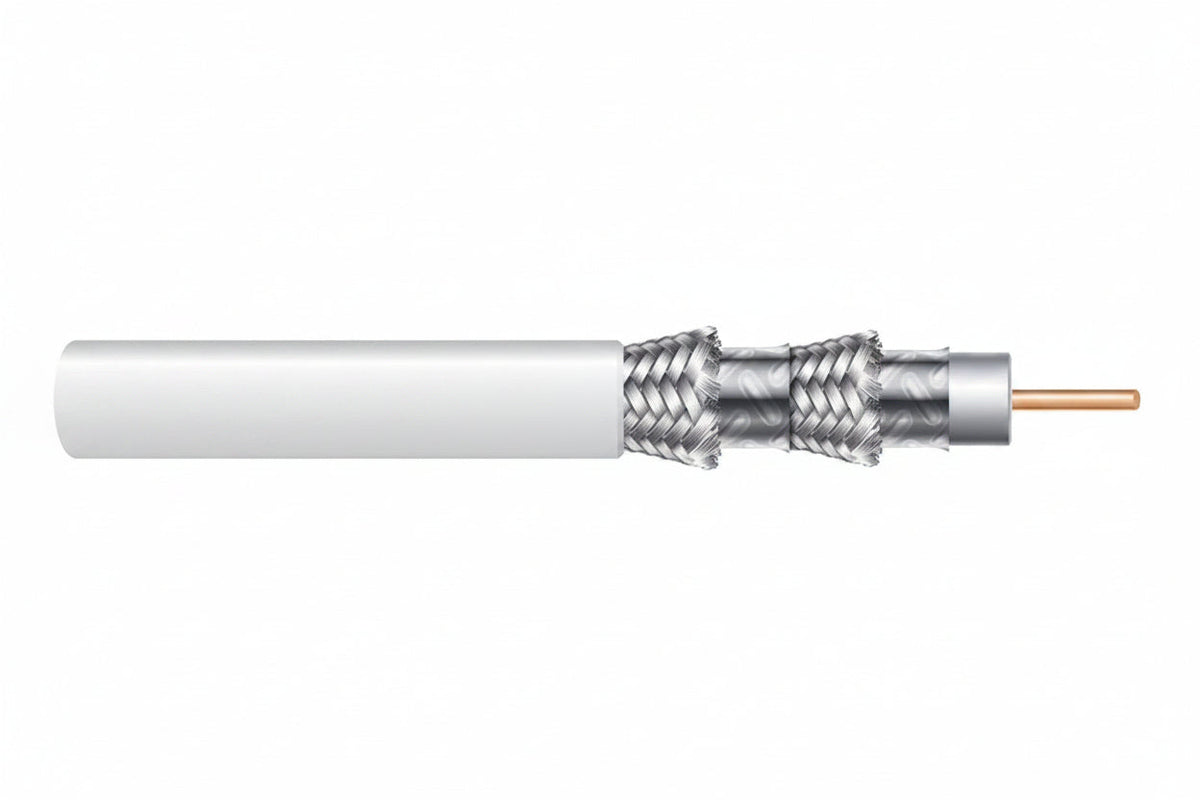

Genesis 50075501 RG6 CCS 75 Ohm Coaxial with Quad-Shield Cable, General Purpose, CATV, 500' (152.4 m) Pull Box, White

The Genesis 50075501 is a 500' (152.4 m) pull box of white RG6 75 Ohm coaxial cable with a copper clad steel center conductor and quad-shield construction. It is a general purpose CATV cable for runs carrying video and broadband signals, suited to installers and homeowners who want shielded coax in a box that pulls cleanly. Countdown length markings on the jacket make it easy to see how much cable has been used and how much is left.

Key features

• The solid copper clad steel center conductor is rated for excellent transmission up to 3 GHz.
• Quad-shielding layers aluminum foil, aluminum braid, aluminum foil and braid.
• Polyethylene insulation sits under a PVC jacket.
• Countdown length markings help you track usage and remaining cable.
• The jacket is sunlight resistant (UV) rated, and the cable is rated for 300 Volts and -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50075501

Type: RG6 coaxial cable, general purpose, CATV

Impedance: 75 Ohm

Length and packaging: 500' (152.4 m) pull box

Color: White

Conductor material: Copper-Clad Steel (CCS)

Number of conductors: 1

Solid or stranded: Solid

American Wire Gauge: 18AWG

Insulation material: PE

Jacket: PVC

Shielding: Yes, quad-shield

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: CN

Weight: 17.70 lb

Installation notes

Pull cable straight from the box and avoid kinks or sharp bends, which can damage the shielding and hurt signal performance. Use compression connectors matched to RG6 quad-shield cable, and keep the length markings in mind when planning cuts so you leave slack at each end.
