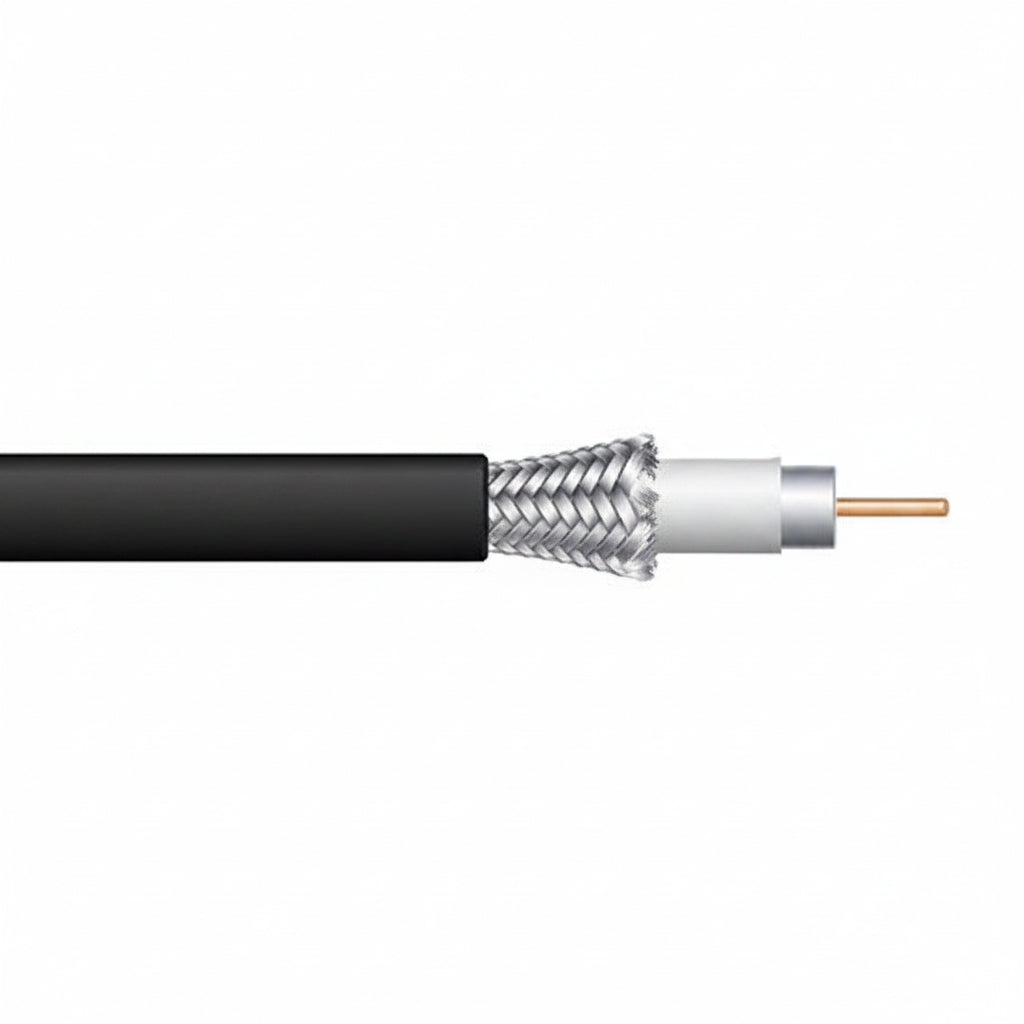

Genesis 50035508 RG6 CCS 75 Ohm Coaxial with Dual-Shield Cable, General Purpose, CATV, 500' (152.4 m) Pull Box, Black

The Genesis 50035508 is a 500' (152.4 m) pull box of black RG6 coaxial cable with a 75 Ohm impedance and a Copper Clad Steel center conductor. It carries CATV and general-purpose coax runs for installers and businesses, and it suits home theater and digital video installations. The dual-shield construction and the countdown length markings are what set it apart from basic coax.

Key features

• The solid Copper Clad Steel center conductor handles transmission up to 3 GHz.
• Dual shielding, aluminum foil plus aluminum braid, is built into the cable.
• Countdown length markings let you track how much cable you have used and how much remains.
• The cable has polyethylene insulation and a PVC jacket, and it is rated for sunlight resistance (UV).
• It is rated for 300 Volts and for -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 50035508

Cable type: RG6 coaxial, CCS, dual-shield

Impedance: 75 Ohm

Length and packaging: 500' (152.4 m) pull box

Color: Black

Conductor material: Copper-Clad Steel (CCS)

Conductors: 1, solid

American wire gauge: 18AWG

Insulation material: PE

Shielding: Yes

Armored: No

Indoor/outdoor: Indoor

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: CN

Weight: 30.00 lb

Installation notes

Pull the cable straight from the box to avoid kinks and tangles, and use the countdown markings to cut runs to length. Avoid sharp bends, and match your connectors to RG6 cable and 75 Ohm impedance.
