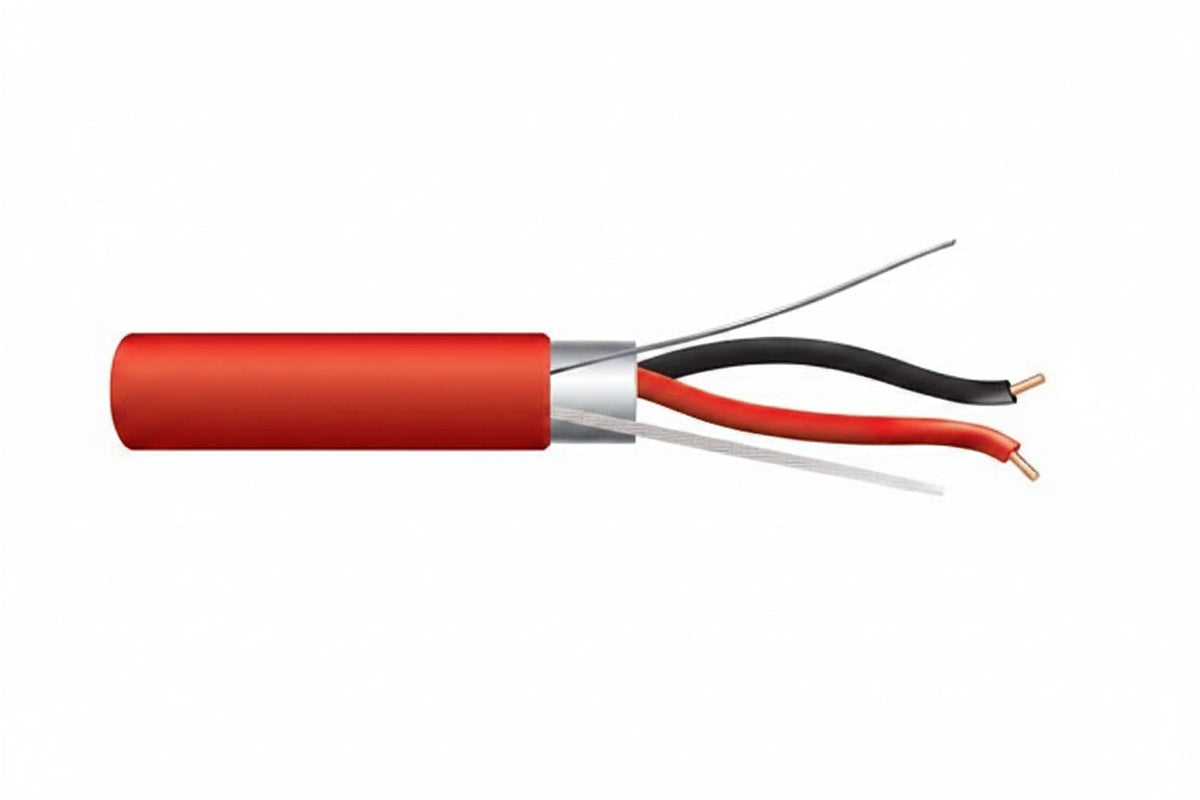

Genesis 44025504 18/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 44025504 is an 18 AWG, 2-conductor solid fire alarm cable with an overall foil shield, sold as a 500' (152.4 m) pull box in red. It is a riser-rated (FPLR) cable for indoor fire alarm wiring, and it suits installers who want solid bare copper conductors and a shield in a single pull. The countdown length markings and rip cord make it easier to measure runs and strip the jacket.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A foil shield covers all conductors, and the insulation is polypropylene under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV rated) and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 44025504

Product Type: Fire Alarm Cables

Rating: Riser, FPLR

Length/Packaging: 500' (152.4 m) Pull Box

Color: Red

Gauge: 18 AWG (18/2)

Number of Conductors: 2

Number of Pairs: 1

Conductor Material: Bare Copper

Solid or Stranded: Solid

Insulation Material: PP

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Terminate the foil shield according to the fire alarm panel manufacturer's instructions, and keep it continuous through each splice or junction. Use the length markings to plan your runs and avoid coming up short on a pull.
