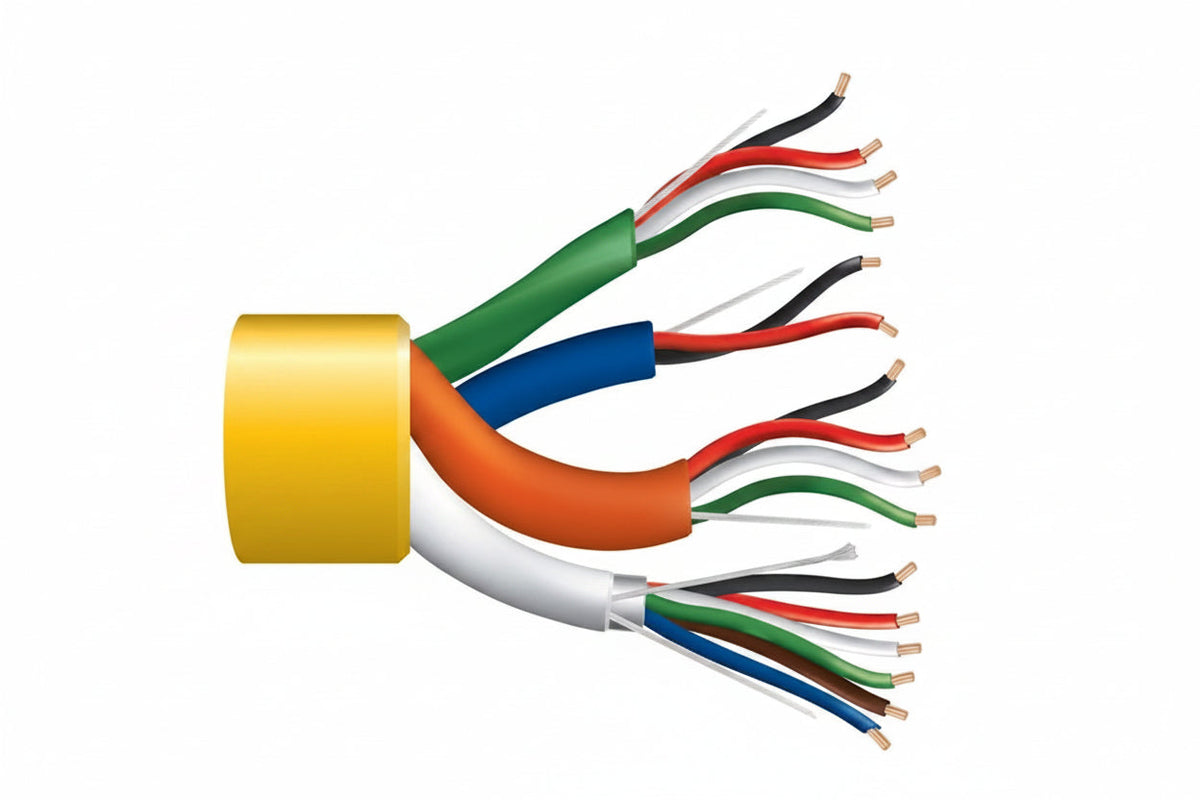

Genesis 31965002 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Yellow

The Genesis 31965002 is a 500' (152.4 m) reel of yellow plenum-rated (CMP, FT6) composite access control cable that bundles the runs for a door into one jacketed pull. It combines a shielded 22/6 stranded card reader cable with 22/4, 22/2 and 18/4 stranded cables, so installers can run reader, lock power and door hardware wiring together. It suits indoor access control installs, and the countdown length markings and rip cord make it easy to work with.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• The card reader component is shielded.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300V and for temperatures from -20 °C to 75 °C, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31965002

Construction: 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded

Rating: Plenum, CMP, FT6

Length: 500' (152.4 m) reel

Color: Yellow

Conductor Material: Bare Copper

Conductor Type: Stranded

Number of Conductors: 16

American Wire Gauge: 22AWG

Insulation Material: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 44.30 lb

Installation notes

Use the rip cord to open the jacket cleanly, then separate the individual cables for the reader, lock power, door contact and request-to-exit connections at the door. Keep the shielded reader cable properly terminated and routed away from power wiring to help limit interference.
