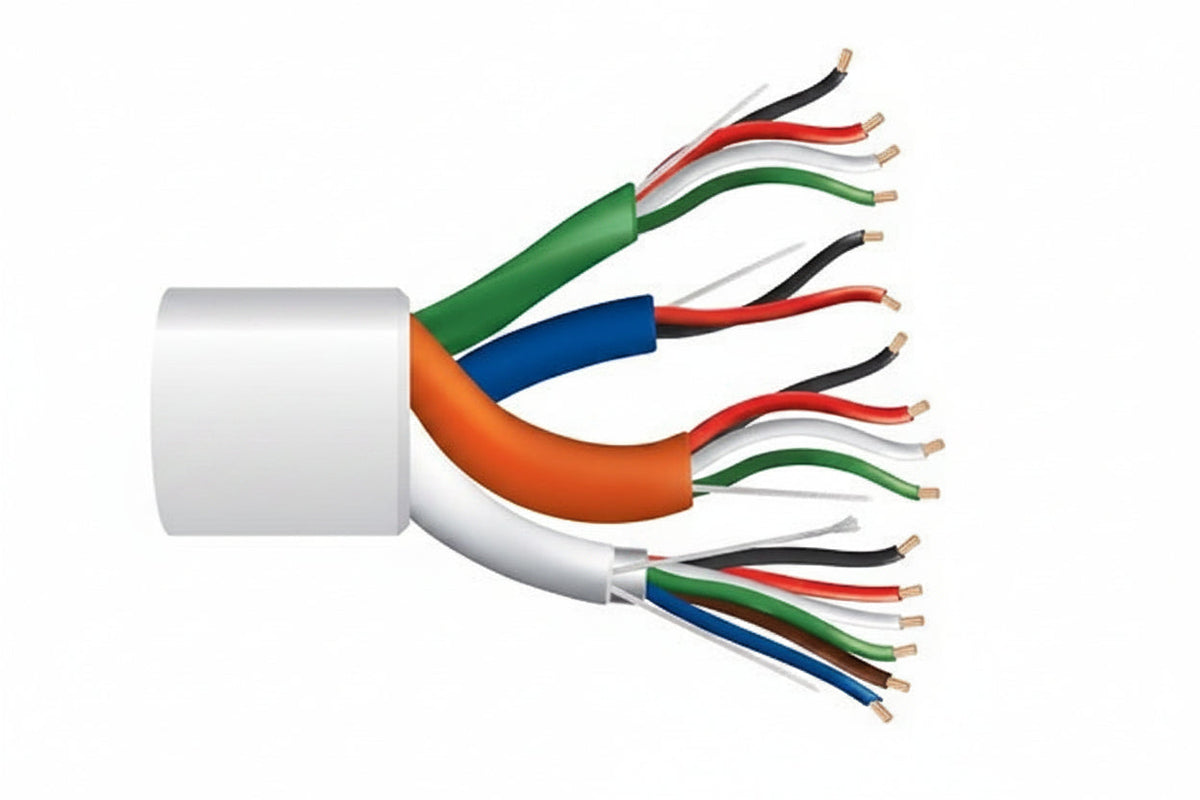

Genesis 31965001 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, White

The Genesis 31965001 is a 500' (152.4 m) reel of white plenum-rated (CMP, FT6) composite access control cable that bundles the four cables needed to wire a standard access point under one jacket. It combines 22/6 stranded shielded, 22/4 stranded, 22/2 stranded and 18/4 stranded, so installers pull one run instead of several. It suits indoor access control installs where plenum-rated cable is required, and the shielded card reader component and countdown length markings stand out.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• The card reader component is shielded.
• Low-smoke PVC insulation is used throughout.
• A rip cord makes stripping and removing the jacket efficient.
• Countdown length markings make it easy to track usage and remaining cable.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31965001

Product type: Composite Access Control Cable

Construction: 22/6 stranded shielded + 22/4 stranded + 22/2 stranded + 18/4 stranded

Rating: Plenum, CMP, FT6

Packaging: 500' (152.4 m) reel

Color: White

Number of conductors: 16

American wire gauge: 22AWG

Conductor material: Bare copper

Solid or stranded: Stranded

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 44.30 lb

Installation notes

Use the length markings to plan each run and cut to what you need before terminating. Keep the shield properly terminated on the card reader pair, and match each component to its device (reader, lock, request-to-exit, door contact) before pulling.
