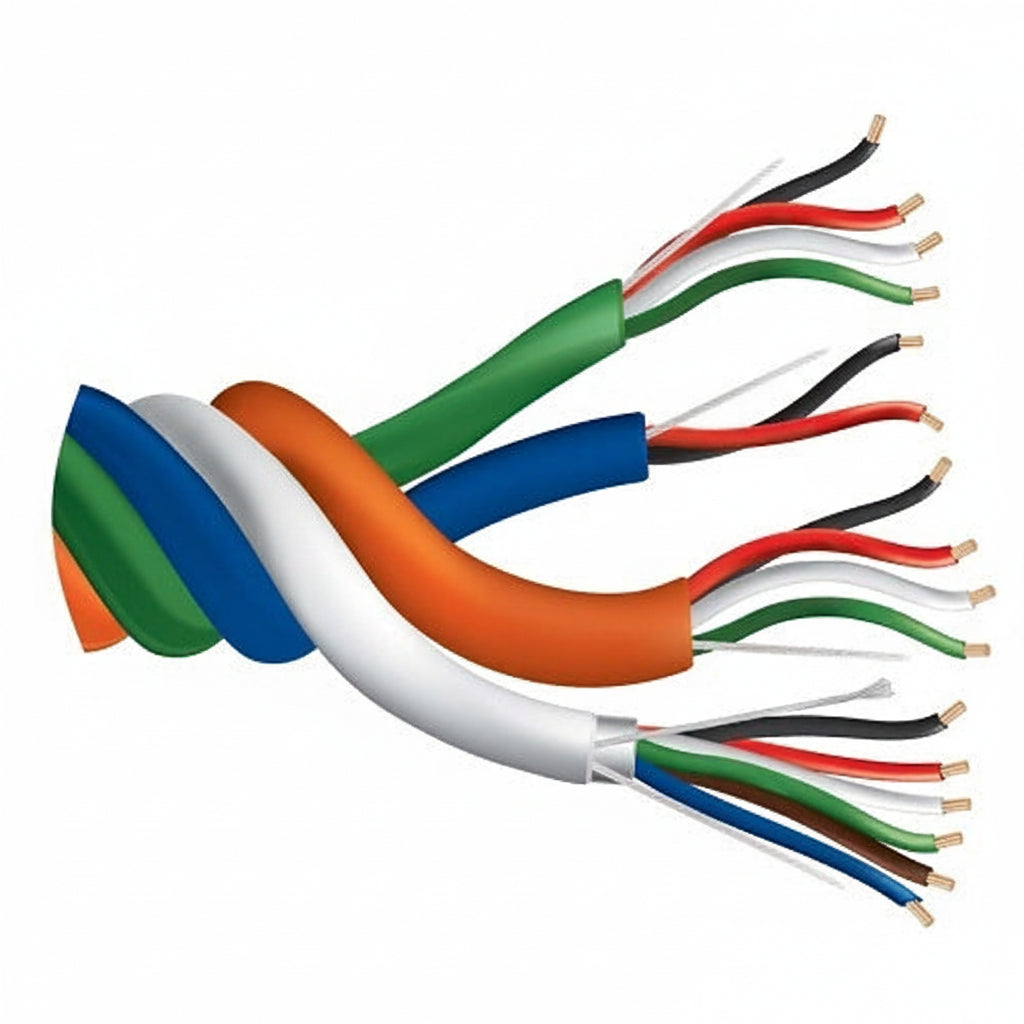

Genesis 31955099 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Profusion Access Control Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Unjacketed

The Genesis 31955099 is a plenum-rated Profusion access control cable that combines four cable types in one unjacketed, twisted bundle on a 500' (152.4 m) reel. It runs a shielded 22/6 card reader cable alongside 22/4, 22/2 and 18/4 stranded cables, so one pull can serve a door's reader, lock and related wiring. It suits installers wiring access control in indoor plenum spaces, and the single-cable design is what sets it apart.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• The card reader component is shielded.
• Low-smoke PVC insulation is used throughout.
• A rip cord makes jacket stripping and removal more efficient.
• Countdown length markings let you track how much cable you have used and how much remains.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31955099

Product line: Profusion Access Control Cable

Construction: 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) reel

Jacket: Unjacketed

Number of conductors: 16

Conductor count: 3

American wire gauge: 22AWG

Conductor material: Bare copper

Solid or stranded: Stranded

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Color: Blue

Indoor/outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 38.40 lb

Installation notes

Use the rip cord to open the cable at the entry point, and keep the shielded reader cable's shield properly terminated according to the reader and controller instructions. Since the cable is unjacketed and rated for indoor use only, protect it from physical damage and keep it out of outdoor or wet locations.
