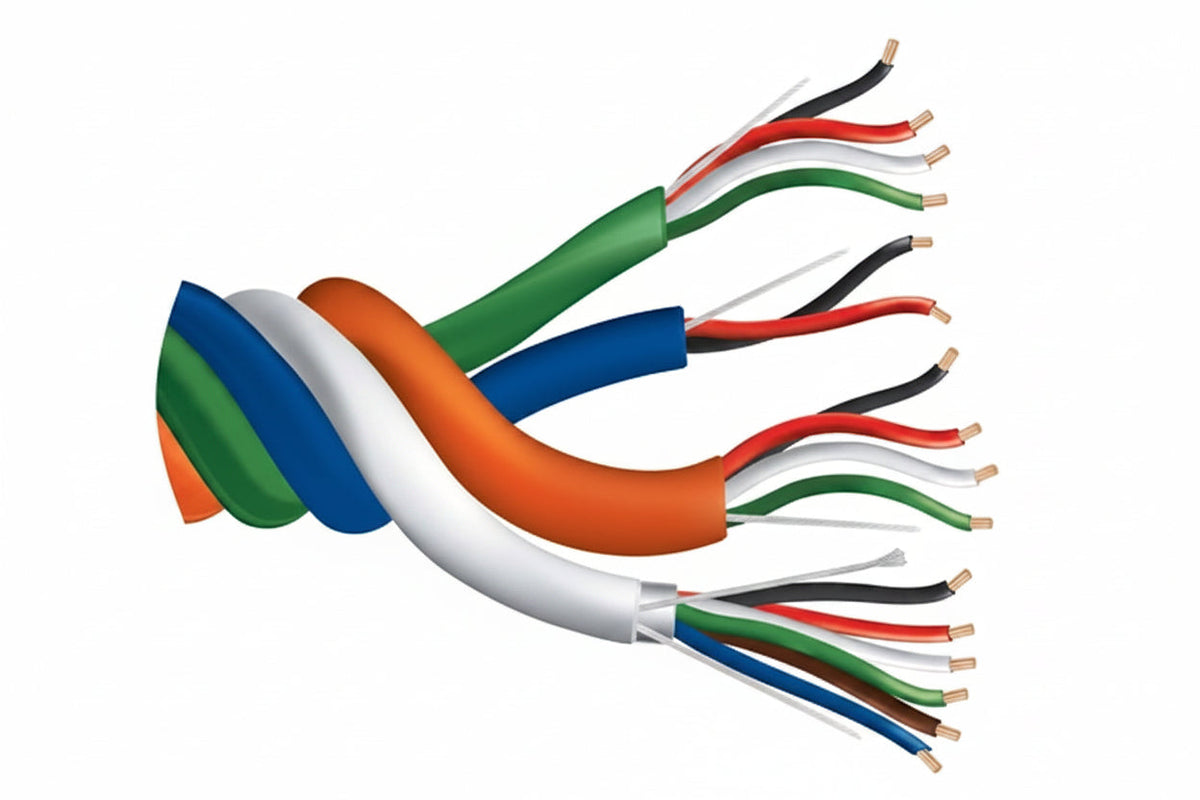

Genesis 31951099 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Profusion Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Unjacketed

The Genesis 31951099 Profusion Access Control Cable combines a shielded 22/6, a 22/4, a 22/2 and an 18/4 stranded group in one unjacketed, plenum-rated (CMP, FT6) cable. It is meant for access control wiring, where a single pull can serve the card reader, lock and other door hardware. Installers get a blue, indoor cable on a 1000' (304.8 m) reel with a shielded reader component and a rip cord for stripping.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• The card reader component is shielded.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings help you track how much cable you have used and how much remains.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31951099

Product line: Profusion Access Control Cable

Construction: 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Jacket: Unjacketed

Conductor material: Bare copper

Conductor type: Stranded

Number of conductors: 16

American wire gauge: 22 AWG

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Color: Blue

Indoor/outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 76.80 lb

Installation notes

Because the cable has no overall jacket, handle it gently and avoid sharp bends or crushing during the pull. Terminate the shielded reader pairs according to your reader manufacturer's grounding guidance, and label each group at both ends so the reader, lock and power runs are easy to identify at commissioning.
